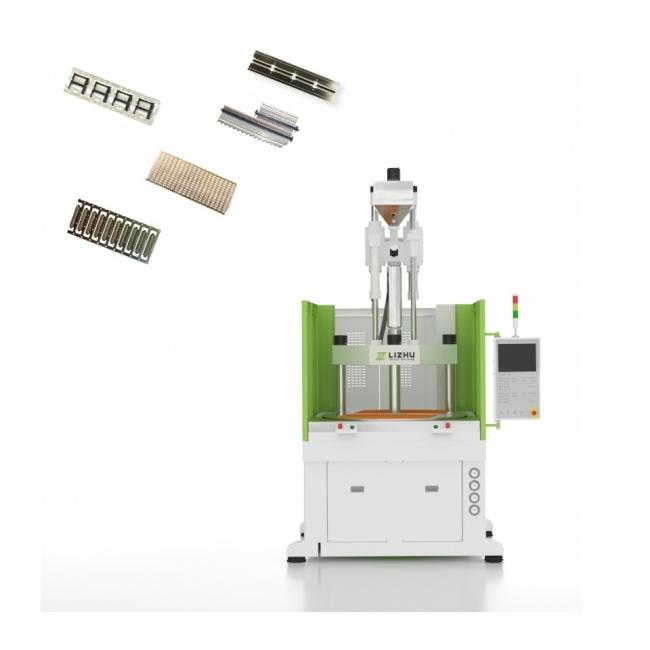

Portable Precision Injection Molding Machine 40-1000 Tons Injection Moulding Machine Small
Portable Injection Molding Machine Vertical Equipment
1. Description:
Switch Bracing Framework clasping force ranges between 40 and 1000 tons.
The amazing Platen Lift Framework concept helps shorten the cinching time. It reduces the weight of the flip, allowing you to develop a lifetime.
Our Switch Clasping design achieves high velocity and smooth clipping while also relying on multiple molds to achieve low-pressure cinching, which is unique in comparison to the Water powered Bracing.
The equipment with two infusion chambers provides high-tension and fast infusion.
Due to the remarkable design of the infusion join, the water-powered charging engine may turn 180 degrees from the first position, making it easier to change the material cylinder.
When the pressure driven engine is charging, the solid infusion structure maintains the infusion join adjustment.
For extra security and efficiency, use a slide table or revolving table.
2. Sepcifications:
| Item | Unit | LZ-2R | |||
| Injection Unit | Screw Diameter | mm | Ø40 | Ø45 | Ø50 |
| Injection Pressure | Kg/cm2 | 2116 | 1548 | 1107 | |
| Theoretical Shot Volume | cm3 | 215 | 262 | 318 | |
| Shot Weight(PS) | g | 153 | 232 | 226 | |
| oz | 6.3 | 7.3 | 9.5 | ||
| Injection Rate | cm3/sec | 162 | 216 | 247 | |
| Screw Stroke | mm | 143 | |||
| Screw Rate | rpm | 0-250 | |||
| Injection speed | mm/s | 142 | |||
| Nozzle Stroke | mm | 385 | |||
| Clamping Force | Clamping Force | tons | 30 | ||
| Opening Force | tons | 18 | |||
| Sliding Plate Size | mm | 550*521 | |||
| Plate Size | mm | 565*1170 | |||
| Rotary Table Diameter | mm | 1100 | |||
| Sliding Table Stroke | mm | - | |||
| Max Mold Size | mm | 570*360 | |||
| Min Mold Thickness | mm | 300(50+50) | |||
| Opening Stroke | mm | 250 | |||
| Max Opening Stroke | mm | 550(50+50) | |||
| Position tolerance | mm | ±0.03 | |||
| Ejector Unit | Ejector Stroke | mm | 50/110 | ||
| Ejector Force | Tons | 6 | |||
| Ejector Diameter | mm | 25 | |||
| Ejector PCS. | pcs | 1 | |||
| Hybrid Unit | Oil Tank Volume | liters | 150 | ||
| Cold Water Volume | Liters/min | 168 | |||
| Servo Motor | kw | 25 | |||
| Heating Volume | kw | 14 | |||
| Total Wattage | kw | 35 | |||
| Others | Machine Weight | tons | 2.1 | ||
| Machine Size | m | --- | |||
3. Machine Features:
1) Vertical clamping followed by vertical injection.
2) The rotating table oscillates 180° and revolves back and forth for easy loading and picking out of finished pieces, increasing productivity.
3) Rotary table with pin for precise mold alignment and automation
4. Pictures:
5. FAQ:
1) Are you a manufacturer or a trading company?
We are professional vertical injection molding machine manufacturer in China.
2) Why Choose you?
We have high quality, professional team, good service, and competitive prices.
3) How can you guarantee quality?
Our professional team will give good suggestion and designing before start production, and always final Inspection before shipment.
4) Do you accept my own design?
We can provide OEM/ODM service.
5)When can I get my machine after I paid?
We will deliver the machines on time as the date we agreed.
