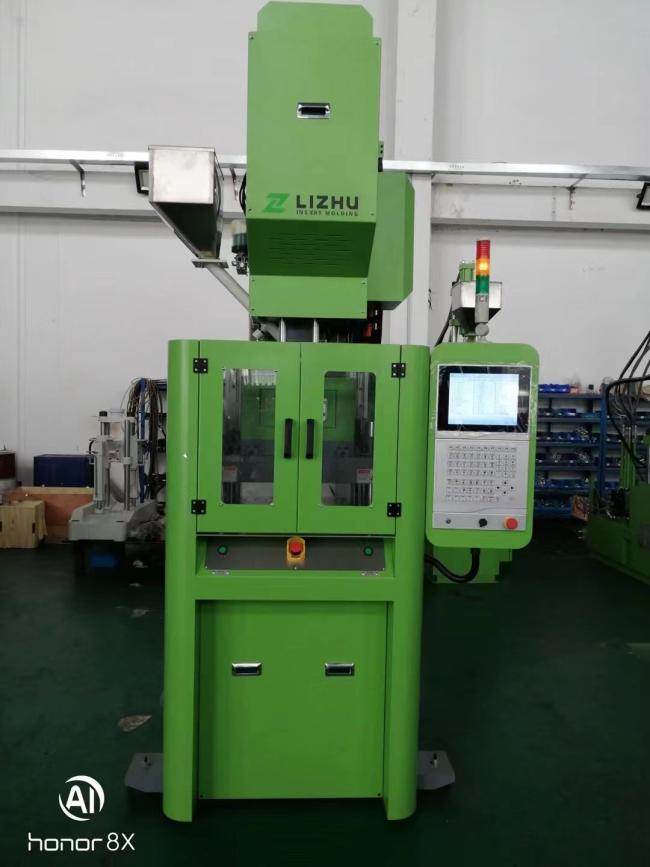

LZ-YD Hybrid Vertical Injection Molding Machine
1. Description:
- LCD screens that can memorize sixty groups of mold-related information in English, Arabic, and Spanish.
- Both the double and the three-position platens function perfectly and can accommodate a variety of pocket inserts.
- It reduces personnel costs while significantly increasing productivity.
- Product, delivery, and inserting are all completed at the same work station, making it safer than using separate molding stations.
- There may also be an automatic component included with the machine.
- Due to a dual (pressure and flux) proportional control, the machine operates quickly and quietly and has a low-voltage safety feature.
2. Sepcifications:
| Item | Unit | LZ - YD | |||
| Injection Unit | Screw Diameter | mm | Ø30 | Ø35 | Ø40 |
| Injection Pressure | Kg/cm2 | 2100 | 1838 | 1308 | |
| Theoretical Shot Volume | cm3 | 214 | 261 | 312 | |
| Shot Weight(PS) | g | 173 | 214 | 237 | |
| oz | 6.7 | 7.2 | 9.7 | ||
| Injection Rate | cm3/sec | 160 | 212 | 245 | |
| Screw Stroke | mm | 180 | |||
| Screw Rate | rpm | 0-250 | |||
| Injection speed | mm/s | 132 | |||
| Nozzle Stroke | mm | 350 | |||
| Clamping Force | Clamping Force | tons | 120 | ||
| Opening Force | tons | 18 | |||
| Sliding Plate Size | mm | 570*540 | |||
| Plate Size | mm | 585*1220 | |||
| Rotary Table Diameter | mm | Ø1300 | |||
| Sliding Table Stroke | mm | - | |||
| Max Mold Size | mm | 560*350 | |||
| Min Mold Thickness | mm | 300(50+50) | |||
| Opening Stroke | mm | 250 | |||
| Max Opening Stroke | mm | 550(50+50) | |||
| Position tolerance | mm | ±0.02 | |||
| Ejector Unit | Ejector Stroke | mm | 50/110 | ||
| Ejector Force | Tons | 5 | |||
| Ejector Diameter | mm | 25 | |||
| Ejector PCS. | pcs | 1 | |||
| Hybrid Unit | Oil Tank Volume | liters | 130 | ||
| Cold Water Volume | Liters/min | 160 | |||
| Servo Motor | kw | 24 | |||
| Heating Volume | kw | 12 | |||
| Total Wattage | kw | 34 | |||
| Others | Machine Weight | tons | 7.5 | ||
| Machine Size | m | ****** | |||
3. Machine Features:
1) A wide range of safety enhancements and high operational efficiency.
2) The capability to raise material tubes Stub bars require little upkeep. Die is safer and easier to fix.
3) Automated production line integration is simple.
4. Pictures:
5. FAQ:
1) Are you a manufacturer or a trading company?
We are professional vertical injection molding machine manufacturer in China.
2) Why Choose you?
We have high quality, professional team, good service, and competitive prices.
3) How can you guarantee quality?
Our professional team will give good suggestion and designing before start production, and always final Inspection before shipment.
4) Do you accept my own design?
We can provide OEM/ODM service.
5) When can I get my machine after I paid?
We will deliver the machines on time as the date we agreed.
