Miniature Vertical Injection Molding Machine Precision Plastic Cape Molding
Miniature Vertical Injection Molding Machine Precision Plastic Cape Molding
Superb Vertical Plastic Injection Molding Machine
1. Description:
The insert injection molding machine meets all of your requirements perfectly. There are numerous options, such as manual component handling, multi-color designs, sliding or rotary tables, horizontal or vertical injection units, and significant specific automation. An individualized vertical injection molding machine is provided to you by us. For unhindered production and employee safety, safety systems are ideal. The molded parts are swiftly and carefully removed from the production unit by intelligent conveyor systems.
2. Sepcifications:
| Item | Unit | LZ-LB | |||
| Injection Unit | Screw Diameter | mm | Ø35 | Ø40 | Ø45 |
| Injection Pressure | Kg/cm2 | 2016 | 1898 | 1207 | |
| Theoretical Shot Volume | cm3 | 213 | 202 | 309 | |
| Shot Weight(PS) | g | 177 | 211 | 234 | |
| oz | 6.3 | 7.3 | 9.5 | ||
| Injection Rate | cm3/sec | 165 | 218 | 233 | |
| Screw Stroke | mm | 135 | |||
| Screw Rate | rpm | 0-250 | |||
| Injection speed | mm/s | 128 | |||
| Nozzle Stroke | mm | 345 | |||
| Clamping Force | Clamping Force | tons | 30 | ||
| Opening Force | tons | 15 | |||
| Sliding Plate Size | mm | 550*521 | |||
| Plate Size | mm | 585*1270 | |||
| Rotary Table Diameter | mm | 1300 | |||
| Sliding Table Stroke | mm | - | |||
| Max Mold Size | mm | 590*350 | |||
| Min Mold Thickness | mm | 300(50+50) | |||
| Opening Stroke | mm | 230 | |||
| Max Opening Stroke | mm | 550(50+50) | |||
| Position tolerance | mm | ±0.03 | |||
| Ejector Unit | Ejector Stroke | mm | 50/110 | ||
| Ejector Force | Tons | 6 | |||
| Ejector Diameter | mm | 20 | |||
| Ejector PCS. | pcs | 1 | |||
| Hybrid Unit | Oil Tank Volume | liters | 147 | ||
| Cold Water Volume | Liters/min | 167 | |||
| Servo Motor | kw | 20 | |||
| Heating Volume | kw | 15 | |||
| Total Wattage | kw | 35 | |||
| Others | Machine Weight | tons | 7.2 | ||
| Machine Size | m | -- | |||
3. Machine Features:
-
Energy efficiency: energy is only used when the machine moves, which can save 30% to 70% of energy over the course of production.
-
Cost savings: less money spent on consumables and lower operating costs as a result of energy savings
-
Due to the capability to perform parallel movements, the process moves at a faster and more efficient pace.

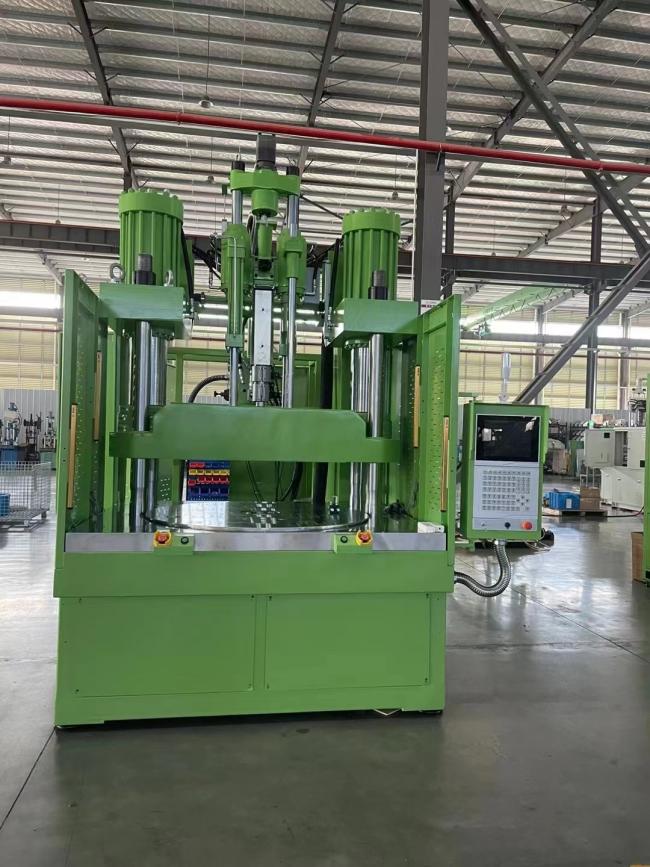

4. Pictures:
5. FAQ:
1) Are you a manufacturer or a trading company?
We are professional vertical injection molding machine manufacturer in China.
2) Why Choose you?
We have high quality, professional team, good service, and competitive prices.
3) How can you guarantee quality?
Our professional team will give good suggestion and designing before start production, and always final Inspection before shipment.
4) Do you accept my own design?
We can provide OEM/ODM service.
5) When can I get my machine after I paid?
We will deliver the machines on time as the date we agreed.
