1. Description:



There are three models available: the standard, sliding trigger, and disc models. Servo motors that use less energy are an option. By combining it with an automatic tape feeding system, it can also be used in an automated production that significantly lowers the need for labor.
Ensure that the high-precision injection requirements of specialized industries are met, including those requiring precision connectors, SD cards, mobile phone sim cards, and connectors.



2. Sepcifications:



Item		Unit	LZ-D
Injection Unit	Screw Diameter	mm	Ø40	Ø45	Ø50
	Injection Pressure	Kg/cm2	2116	1548	1107
	Theoretical Shot Volume	cm3	215	262	318
	Shot Weight(PS)	g	153	232	226
		oz	6.3	7.3	9.5
	Injection Rate	cm3/sec	162	216	247
	Screw Stroke	mm	143
	Screw Rate	rpm	0-250
	Injection speed	mm/s	142
	Nozzle Stroke	mm	385
Clamping Force	Clamping Force	tons	100
	Opening Force	tons	18
	Sliding Plate Size	mm	550*521
	Plate Size	mm	565*1170
	Rotary Table Diameter	mm	1100
	Sliding Table Stroke	mm	-
	Max Mold Size	mm	570*360
	Min Mold Thickness	mm	300(50+50)
	Opening Stroke	mm	250
	Max Opening Stroke	mm	550(50+50)
	Position tolerance	mm	±0.03
Ejector Unit	Ejector Stroke	mm	50/110
	Ejector Force	Tons	6
	Ejector Diameter	mm	25
	Ejector PCS.	pcs	1
Hybrid Unit	Oil Tank Volume	liters	150
	Cold Water Volume	Liters/min	168
	Servo Motor	kw	25
	Heating Volume	kw	14
	Total Wattage	kw	35
Others	Machine Weight	tons	3.9
	Machine Size	m	---

















































































3. Machine Features:



1. Vertical injection with four-column direct pressure clamping.
2. The closing and breaking control system uses Bosch servo hydraulic control components, and the clamping force ranges from 55 to 120 T. The fastest injection speed, when using ACC nitrogen and a nitrogen energy storage device, is 800mm/s. attain stability
Quick shot, fixed.
3. Completely closed loop: In order to achieve complete closed-loop control of injection speed, pressure holding pressure, and pre-plastic back pressure, DPQ injection digital control card and Rexroth high-frequency servo valve are used.

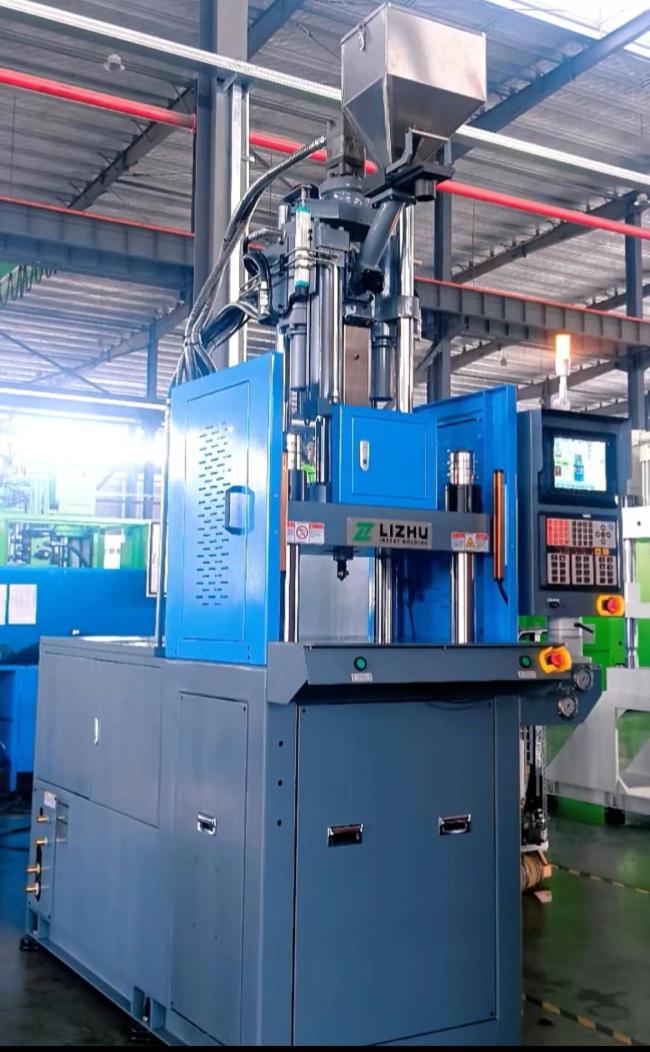

4. Pictures:





5. FAQ:



1) Are you a manufacturer or a trading company?

We are professional vertical injection molding machine manufacturer in China.



2) Why Choose you?

We have high quality, professional team, good service, and competitive prices.



3) How can you guarantee quality?

Our professional team will give good suggestion and designing before start production, and always final Inspection before shipment.



4) Do you accept my own design?

We can provide OEM/ODM service.



5) When can I get my machine after I paid?

We will deliver the machines on time as the date we agreed.
