60 Tons Vertical Injection Moulding Machine For Electrical High Productivity
High Productivity Vertical Injection Molding Machine
1. Description:
One upper mold and one lower mold are used in a slide injection molding machine, which slides the lower mold out once the injection molding process is finished.
The machine can be made with either a horizontal or vertical injection structure;
With precise positioning and quick running speed, the skateboard can be controlled by servo.
suited for the molding of a variety of plastic materials as well as thermosetting materials;
2. Sepcifications:
| Item | Unit | LZ-350 | |||
| Injection Unit | Screw Diameter | mm | Ø25 | Ø28 | Ø30 |
| Injection Pressure | Kg/cm2 | 2150 | 1715 | 1495 | |
| Theoretical Shot Volume | cm3 | 49 | 62 | 70 | |
| Shot Weight(PS) | g | 44 | 55 | 62 | |
| oz | 1.5 | 1.9 | 2.2 | ||
| Injection Stroke | mm | 100 | |||
| Clamping Force | Clamping Force | tons | 35 | ||
| Opening Force | tons | 3.8 | |||
| Sliding Plate Size | mm | 345*350 | |||
| Double Sliding Size | mm | 345*700 | |||
| Plate Size | mm | 480*330 | |||
| Rotary Table Diameter | mm | 700 | |||
| Max Mold Size | mm | 2500*2500 | |||
| Min Mold Thickness | mm | 140 | |||
| Max Opening Stroke | mm | 320+(50+50) | |||
| Opening Stroke | mm | 180 | |||
| Position tolerance | mm | ±0.02 | |||
| Ejector Unit | Ejector Stroke | mm | 37/100 | ||
| Ejector Force | Tons | 1.5 | |||
| Ejector Diameter | mm | 20 | |||
| Ejector PCS. | pcs | 1 | |||
| Hybrid Unit | Oil Tank Volume | liters | 110 | ||
| Cool Water Volume | Liters/min | 50 | |||
| Servo Motor | kw | 5.5/10.5 | |||
| Heating Volume | kw | 4.5 | |||
| Total Wattage | kw | 3/5 | |||
| Others | Machine Weight | tons | 1.2/1.4/1.6 | ||
| Machine Size | m | ** | |||
3. Machine Features:
vertical injection, vertical clamping, and the servo-equipped standard model.
40-80 tons of clamping force Volume:0-30g a 500 mm/s injection rate.
Apply to products with thin-wall inserts that have a thickness of less than 0.01 mm, such as sensors, electric parts, and mobile connectors.
Add a rotary table, a single sliding platen, and an electric injection unit as options.

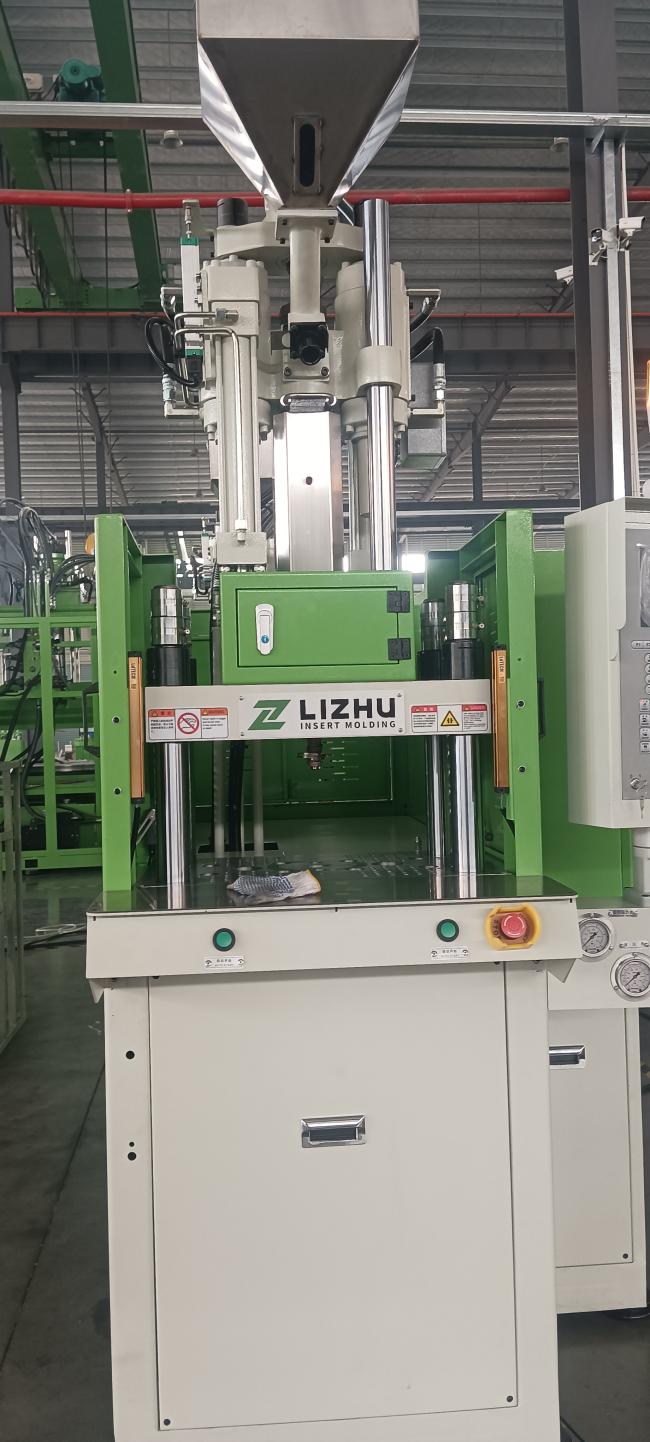

4. Pictures:
5. FAQ:
1) Are you a manufacturer or a trading company?
We are professional vertical injection molding machine manufacturer in China.
2) Why Choose you?
We have high quality, professional team, good service, and competitive prices.
3) How can you guarantee quality?
Our professional team will give good suggestion and designing before start production, and always final Inspection before shipment.
4) Do you accept my own design?
We can provide OEM/ODM service.
5)When can I get my machine after I paid?
We will deliver the machines on time as the date we agreed.
