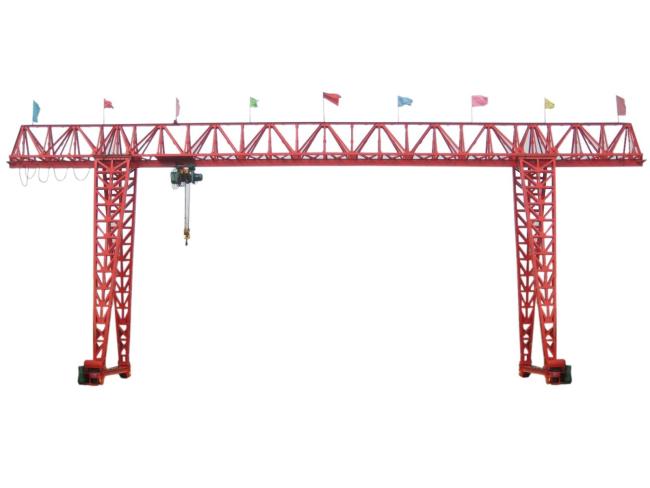

Workshop Gantry Crane With Electric Hoist Truss Type Single Beam
Workshop Gantry Crane With Electric Hoist Truss Type Single Beam
Introduction:
Gantry cranes run on ground rails and are mainly used for handling and installation in open storage yards, shipyards, power stations, ports and railway cargo terminals.
Technical Parameter:
| Capacity | T | 3 | 5 | 10 | 16 | 20 | ||
| Span | m | 12,16,20,24,30 | ||||||
| Operational method | Pendent Line With Press Button /Cabin/ Remote | |||||||
| Speed | Lifting |
m/min |
8 ,8/0.8 | 8,8/0.8 | 7,7/0.7 | 3.5 | 3.5 | |
| Cross travelling | 20 | 20 | 20 | 20 | 20 | |||
| Long travelling | Ground | 20 | 20 | 20 | 20 | 20 | ||
| Cabin | 20, 30,45 | 20, 30,40 | 30,40 | 30,40 | 30,40 | |||
| Motor | Lifting | Type /kw | ZD41-4/4.5 ZDS1-4/0.4/4.5 |
ZD141-4/7.5 ZDS10.8/4.5 | ZD151-4/13 ZDS11.5/4.5 | ZD151-4/13 | ZD152-4/18 | |
| Cross travelling | ZDY12-4/0.4 | ZDY121-4/0.8 | ZDY21-4/0.8×2 | ZDY121-4/0.8×2 | YZD-4/0.8×4 | |||
| Long travelling | Ground | ZDY21-4/0.8×2 ZDY21-4/1.5×2 |
YZY22-4/1.5×2 YZR132M2-6/3.7×2 |
YZR22-4/1.5×2 | YZR160M1-6/6.3×2 YZR160M2-6/8.5×2 |
YZR160M1-6/6.3×2 YZR160M2-6/8.5×2 |
||
| Cabin | ZDR100-4/1.5×2 ZDR112-4/2.1×2 |
YZR112L1-4/2.1×2 YZR160M1-6/2.1×2 |
YZR112L1-4/2.1×2 YZR160M2 |
YZR160M2-6/8.5×2 YZR160L2-6/11×2 |
YZR160M2-6/8.5×2 YZR160L2-6/11×2 |
|||
| Electric hoist | Model | CD1/MD1 | CD1/MD1 | CD1/MD1 | CD1 | HC | ||
| Lifting height | m | 6,9 | ||||||
| Working duty | A3 | |||||||
| Power supply | 380V 60HZ 3phase AC (According to your demand ) | |||||||
Safety Features of Our Gantry Cranes:
1. Crane traveling limit switch
2. Weight overload protection device
3. Lifting height limit device
4. Voltage lower protection function
5. Phase sequence protection function
6. Warning indicator: flashing lights and warning sound.
7. Emergency stop function
8. Rain cover for outside hoist, driving units, electrical cubicle.
9. Wireless infra-detector for anti-collusion
Application:
Gantry cranes have the characteristics of high site utilization, large operating range, wide adaptability and strong versatility, and are widely used in port cargo yards.
Photos:
