Electrical Equipment & Supplies Batteries Battery Management System(BMS)

GCE 180S 576V 100A lifepo4 battery BMS High Voltage Lithium Battery BMS 280Ah 100AH Cell Rack BMS Solar Energy Storage System

Price Negotiable
Price: negociate with cara@hngce.com
MOQ: 2 sets
Delivery Time: 20~25days
Brand: GCE
Product Description

GCE 180S 576V 100A lifepo4 battery BMS High Voltage Lithium Battery BMS 280Ah 100AH Cell Rack BMS Solar Energy Storage System





Company Profile:



Hunan Group Control Energy Technology Co., Ltd.(GCE) is a high-tech company specializing in the research and development of BMS and lithium battery peripheral equipment. The high-performance intelligent lithium battery management system produced by our company adopts the international leading technology, which greatly improves the battery management efficiency and prolongs the service life of lithium battery. The advanced BMS control strategy avoids the difficulties and instability faced by most competitors for our BMS.

4S to 24s low voltage software BMS has a wide range of uses, rich product interfaces, strong scalability and secondary development compatibility; 30s to 75s BMS adopts master-slave integrated design and relay solution to meet the lithium battery demand of multiple strings of small capacity batteries. Greatly reduce the use cost of users; 60s-415s adopts master-slave three-level architecture, which can meet the series and parallel requirements of high-capacity single lithium batteries within 1500V.









High Voltage Master BMS:



  • Maintenance free. Modular design for easy installation and capacity expansion.
  • Smart RBMS with multiple protection and communication functions.
  • Wide working temperature range and high reliability.
  • Multiple battery units can be connected in parallel, suitable for high-energy storage applications.
  • Compatible with various charge controllers and inverters.
  • 576V100A master RBMS with 12 sets of 15S slave BMU and 15S Wire harness

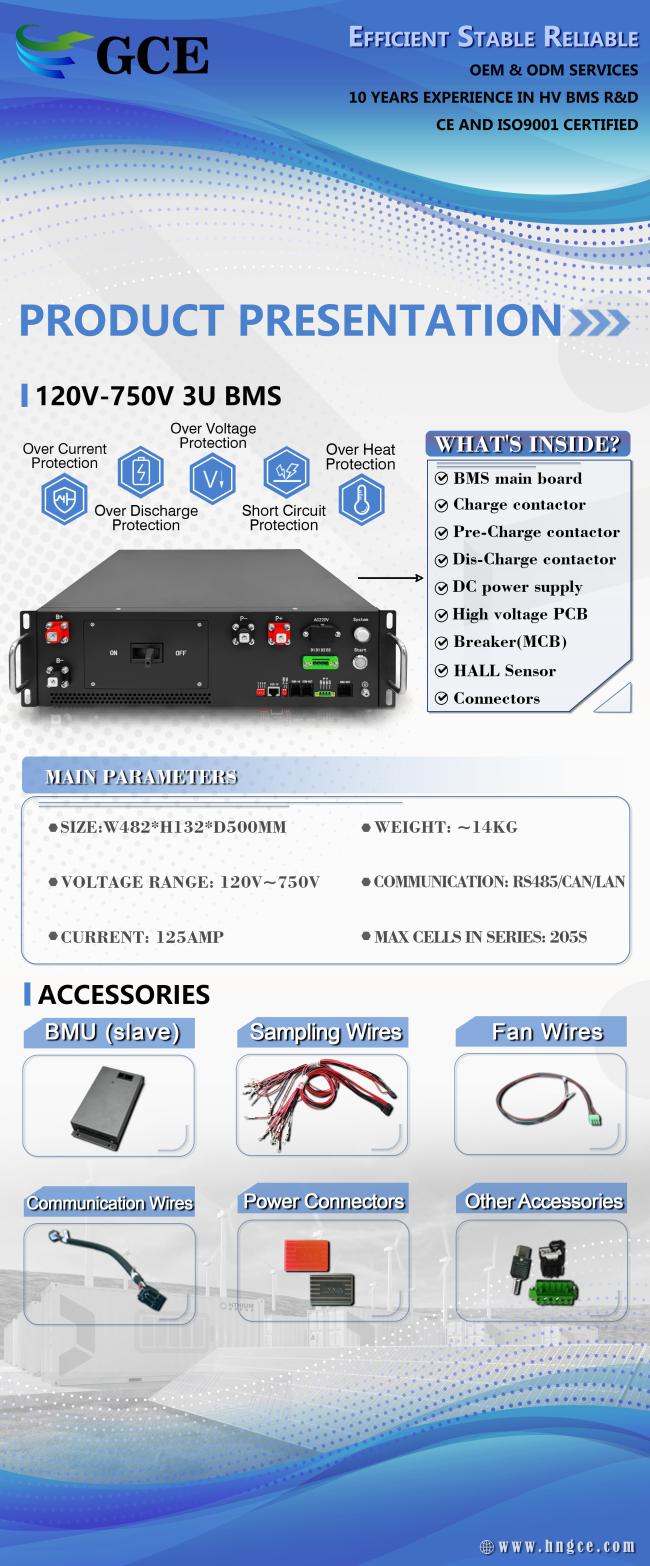

Sample Drawings Of Standard Products:







Specification:



SPECIFICATION
Basic Parameters
Max current
125A
Rated voltage
350V / 750V(Optional)
Power consumption
≤15W
Current sampling accuracy
1%FSR
Insulation withstand voltage
2800VDC <1mA 1min
Protection level
IP20

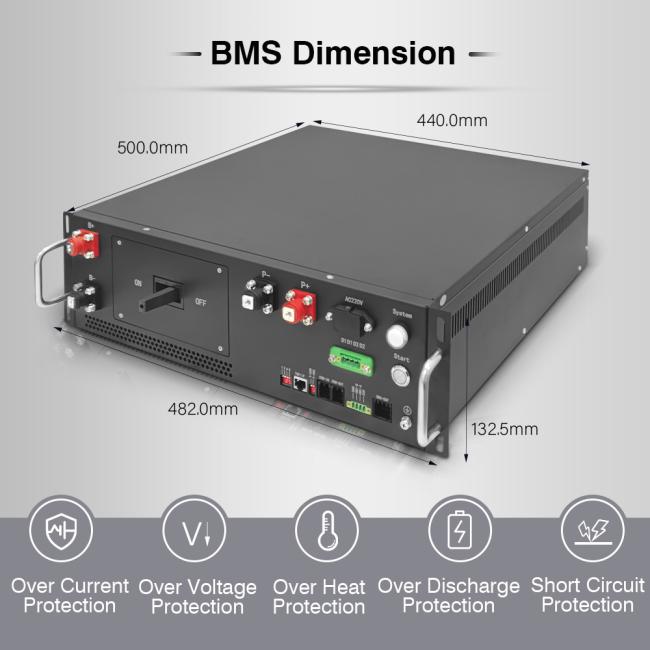

Dimension(W*H*D)
482 * 132 * 500(mm)
Net weight
16Kg
Communication Port
Communication port with BMU
CAN
Communication port with UPS
RS485/CAN
Communication port with SBMS
RS485/CAN
Communicate with PC software
Ethernet
Basic Functions
Battery charge & discharge management
Support
Battery temperature management
Support
IAP upgrade
Support
System protection parameter setting
Support
Short circuit protection
Support(750V 20KA 20ms)
Precharge function
Support
Parallel loop current control
Support
Event record
Support 5000 records
Middle line system
/
Dual power supply
Support
Optional Functions
Monitor insulation
≥300V (Optional)
HMI display
4.3”or 7”display(Optional)
Parallel
Support up to 15 RBMS in parallel
Dry contact
Max 2 dry contact outputs
Others
Color
RAL9005 Black sand grain
Installation
Suitable for standard 19-inch cabinet
Inlet and outlet line method
Front side in and front side out.
Operating ambient temperature
-20℃~60℃
Operating ambient humidity
5%~75%RH
Compliance with national standards
GB/T 16935.1 GB/T 17626.2 GB/T 17626.5
Safety compliance certification
Comply with CE certification standards

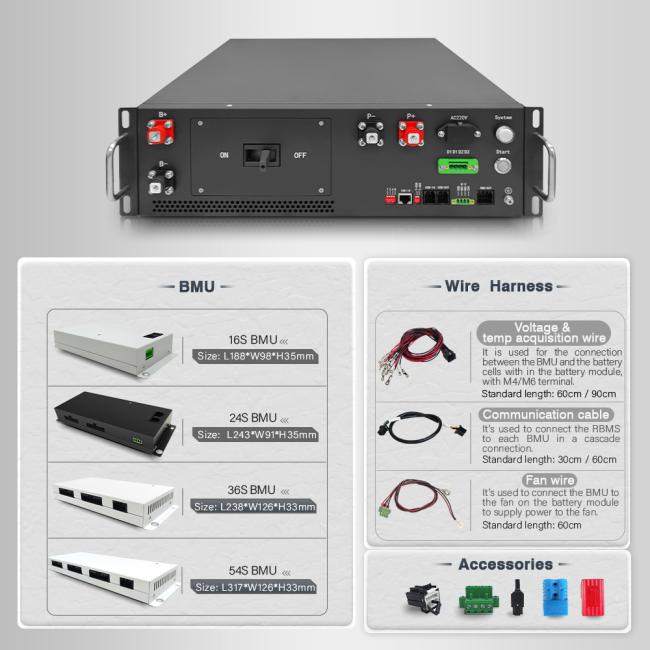

Accessories: 15S BMU +15S Wire harness

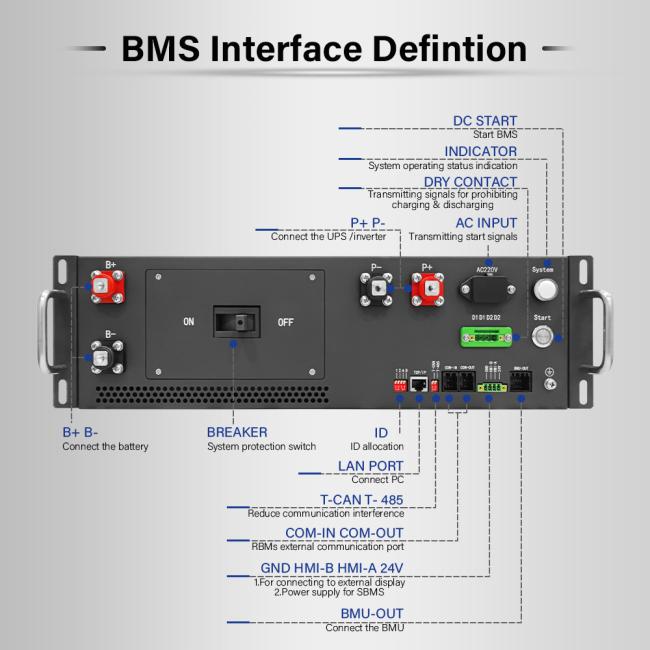

Communication:



Communication Interface

Communication port with BMU: CAN

Communication port with UPS: RS485/CAN

Communication port with SBMS: RS485/CAN

Communication with monitoring software: Ethernet

Current sampling accuracy: 1%FSR

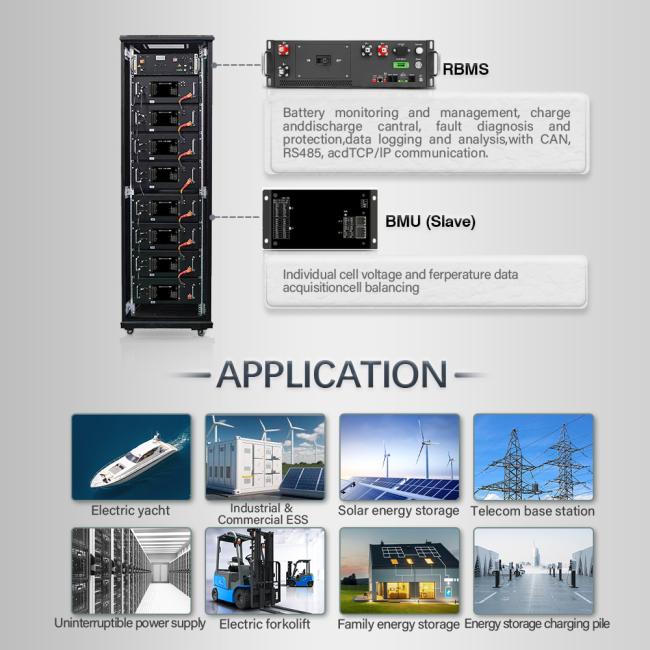

BMS SYSTEM STRUCTURE:



For ref, a complete of our BMS includes master RBMS, slave BMU and wire harness, if the application with multiple racks in parallel, there will be SBMS demand.





Applications:



Leading BMS Manufacturer For Lithium Battery Packs
Your Trusted BMS Partner for Industrial, Residential, UPS and Solar Energy Storage Solutions.

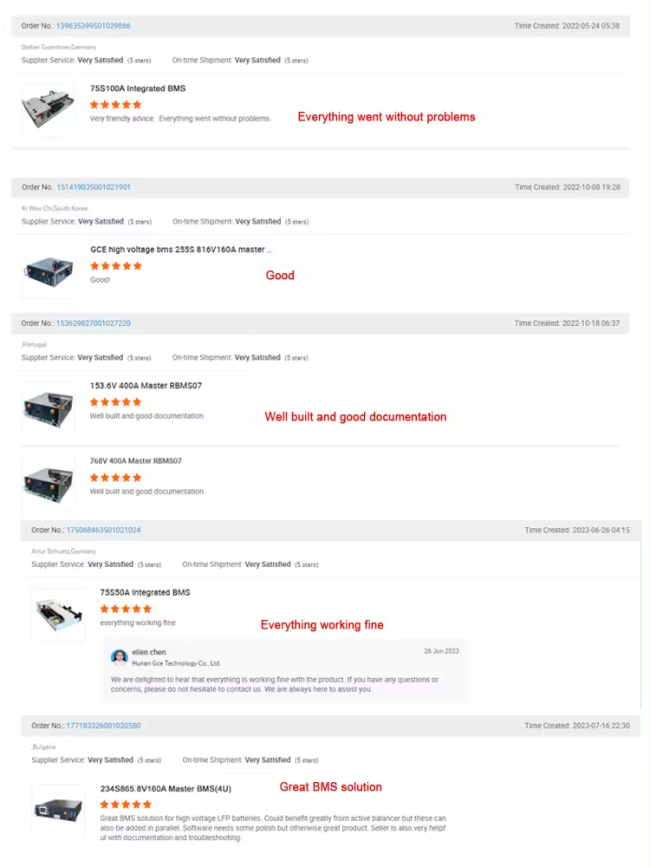

Buyer comments:
