60S 192V Integrated BMS , 100A Battery Management System For Lifepo4
60S 192V Integrated BMS Lifepo4 Battery Management System 100A Lifepo4 BMS
Model No.: RBMS07S60S100A
Place of Origin:Hunan, China
Brand Name:GCE
Model Number:RBMS07S40S50A
Battery Type:LFP, NCM, LTO, Lithium iron phosphate battery
Product name:BMS(Battery Management System)
Design:Slave and master BMS all in one
Current:50A/100A
Voltage:192V
Strings:60S
Warranty:3 years
Communication:CAN, RS485
Size:410*232*128mm
Certification:CE/RoHS/UN38.3/MSDS
Packaging & Delivery
Selling Units:Single item
Single package size: 51X35X21 cm
Single gross weight:8.000 kg
Package Type:Corrugated Carton, bundles, pallets, wooden box
This is integrated BMS, 60S 192V BMS Lifepo4 Battery Management System 100A
Solution recommend as below:
LFP battery, cell:3.2v
Number of stings: 60S (15s*4PCS)
Voltage: 192V
Max current: 100A
System Features:
- Each 13 strings is a battery collection unit, and 52 series batteries have 4 acquisition units.
- 3 probes for every 13strings, for a total of 12
- current collection uses Hall sensor, safe and reliable, no heat;
- SOC estimation error ≤ 5%;
![]()
- One channel CAN communication interface is used for PCS and BMS communication, one channel 485 interface is used for PCS and BMS communication or software upgrade
- LED signal indicates working status (4-bit SOC indication, 1-bit operation indication, 1-bit fault indication)
- 3-digit address dialing to set the BMU address;
- 3-channel relay dry contact output;
- 4-channel contactor expansion and auxiliary contact detection;
![]()
- Provide PC software to facilitate the customer to debug the battery system, or modify the system parameters through the host computer;
- Support temperature module expansion;
- Support Bluetooth, GPRS, external serial port display expansion (extended function single machine three choice one);
- Support for parallel use (maximum 7 units)
- The default system overcurrent capability is 100A

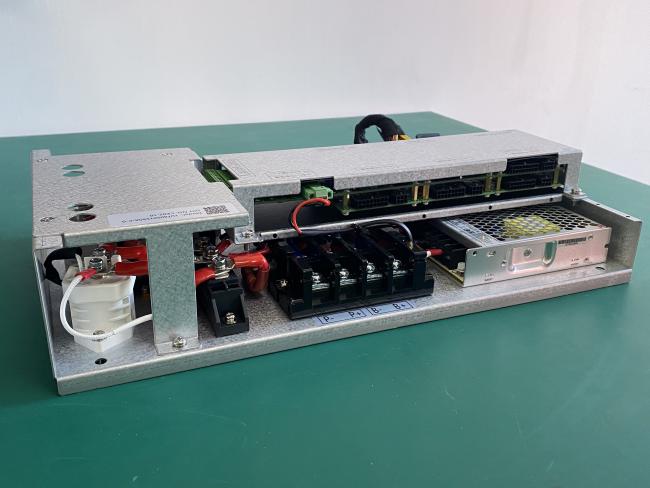

This system is an embedded BMS integrated machine designed for the production of 60 series ternary lithium with a single cell capacity of less than 50Ah.

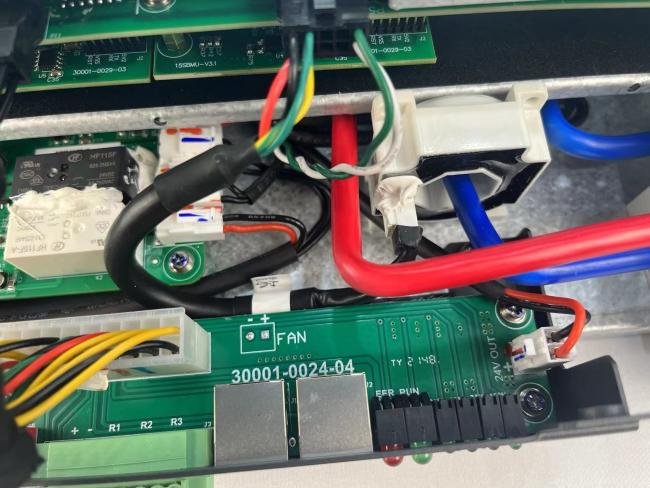

The BMS component consists of BMU (sampling control board),
power adapter board, high voltage board,
interface board, switching power supply,
Hall sensor, pre-charge resistor,
power diode, pre-charge contactor,
charging contactor,
discharge contactor,
micro Components such as disconnecting switches,
power wiring blocks, cabinets and wiring harnesses;

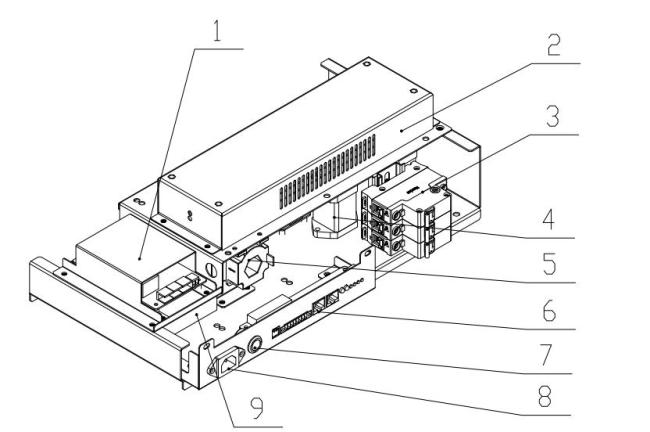

Dimension and interface of BMS
|
Accessories name
|
Remarks
|
|
High pressure plate box
|
/ |
|
BMU box
|
/ |
|
Micro break switch
|
Select model according to
|
| Contactor assembly |
Select model according to
|
|
Hall sensor
|
Select model according to
|
|
Interface board
|
/ |
|
Start button
|
/ |
|
AC socket
|
For AC startup
|
|
Power module
|
LRS-100-24
|
Equalization function
BMS uses the resistor circuit to balance the cell.
The cell voltage of the battery pack reaches 3.5V and the voltage of the cell is higher than the lowest single-segment voltage of 50mV,
Or the cell voltage exceeds 3.65V to turn on the equalization function.
Time (except for overcharge and full charge) equalization stops.
