Four Beam Eolos Wind Lidar Molas Nl Bankable Frequency 4hz
Price:
Dollar 5W$+ （Price consultation customer service）
MOQ:
1 set
Delivery Time:
1-2 months
Brand:
MOVELASER
Product Description
Four beam eolos wind lidar Molas NL Bankable Frequency 4Hz
| Product introduction
Molas NL conducts wind measurement based on the principle of full coherent Doppler detection. The pulse signal light generated by the fiber laser is transmitted to the atmosphere to be measured through the optical antenna, and interacts with the aerosol particles therein to generate a backscattered signal containing velocity information. The acquired data is transmitted to the processor, and the radial wind speed at different distances of each beam is obtained based on the signal processing algorithm. Finally, the reconstructed wind speed, wind direction, turbulence, wind shear and other information are obtained by combining the wind field model.
| Application scenarios
Reduce fatigue load by 5%-10%
Reduce the ultimate load by 10%-15%
Extend fan life and reduce fan costs
Reduce the ultimate load by 10%-15%
Extend fan life and reduce fan costs
| Product parameters 参数
|
Measure the distance |
50~200m |
|
Measurement Layer |
10 |
|
Sampling frequency |
4Hz |
|
Wind speed measurement range |
-50 ~50m/s |
|
Wind direction measurement range |
-180°～180° |
|
Wind speed accuracy |
0.1m/s |
|
Accuracy of wind direction |
±0.5° |
|
Laser form |
pulse wave |
| Product Features
True front wind measurement
Real time data transmission and local storage
Accuracy up to 0.1m/s and 0.5°
high sample rate
Multiple distance layers
large range

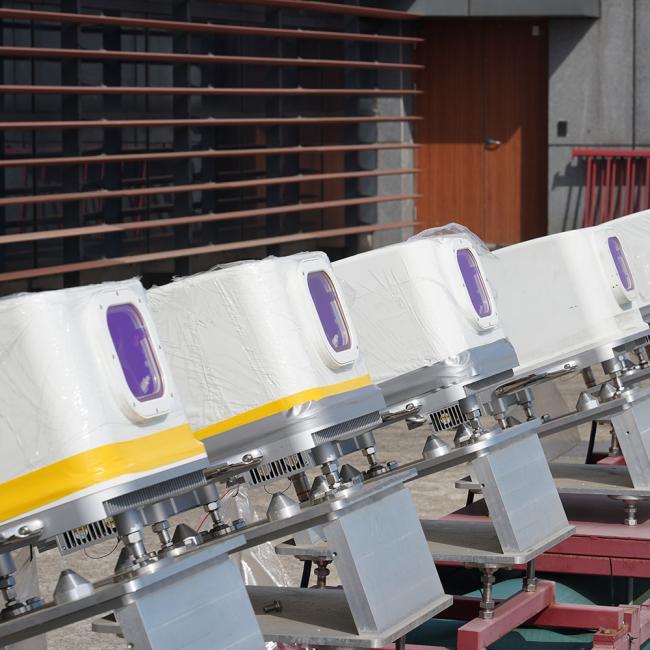

| Product Image
