Cisco SFP-10G-ER40 Compatible 10GBASE-ER / EW 40km 1310nm SFP+

SFP-10G-ER40 1310nm Wavelength 40km Single Mode Fiber Transceiver Module for Ethernet

Description Of Cisco SFP-10G-ER40 Compatible Transceiver

This Cisco SFP-10G-ER40 compatible 1310nm SFP+ Optical Transceiver Module offers a variety of 10 Gigabit Ethernet connectivity options for data centers, enterprise wiring closets and service provider transport applications. Max links up to 40km over LC duplex connector with standard single-mode fiber (SMF, G.652).

The SFP-10G-ER40 transceiver complies with SFP+ MSA specifications (SFF-8431, SFF-8432, SFF-8472), 10 Gigabit Ethernet specifications (10GBASE-ER/EW per IEEE 802.3ae ), and 10G Fibre Channel. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472.

This SFP-10G-LR optical module is programmed to be compatible with a wide range of Cisco network equipment such as Cisco 3100 WS series, Cisco 4500 WS series, Cisco 4900 series, Cisco 5700 Air series, Cisco 6000, Cisco 6800 series, Cisco C6800 series, Cisco Nexus 2000 series, Cisco Nexus 3000 series, Cisco Nexus 5000 series, Cisco Nexus 7000 series, Cisco Nexus 9000 series, Cisco WS-C2960S series, Cisco WS-C3560E series, Cisco UCS series and etc.

Specification Of Cisco SFP-10G-ER40 Compatible Transceiver

Notice: When the long-reach transceiver is used in short-distance transmission, please matched with appropriate attenuator according to the table.

Features Of Cisco SFP-10G-ER40 Compatible Transceiver

• Functionally identical to Cisco SFP-10G-ER40
• Hot-pluggable SFP+ footprint
• 15dB optical link budget for up to 40km over G.652 single-mode fiber
• Max bit rate up to 11.3 Gb/s
• Uncooled 1310nm DFB laser, PIN photo-detector
• Power dissipation <1.5W
• Single 3.3V power supply
• Duplex LC connector
• Built-in digital diagnostic functions
• Operating temperature range: Commercial: -5°C~70°C  / Industrial: -40°C~85°C
• RoHS-compliant and lead-free

Application Of Cisco SFP-10G-ER40 Compatible Transceiver

• 10GBASE-ER/10GBASE-EW Ethernet
• 10G Fiber Channel
• 10GbE Data Center Switches and Routers

Standard Of Cisco SFP-10G-ER40 Compatible Transceiver

• Compliant with SFF-8472 SFP+ MSA
• Compliant to SFP+ SFF-8431 and SFF-8432
• Compliant to 802.3ae 10GBASE-ER
• 10GFC
• RoHS Compliant

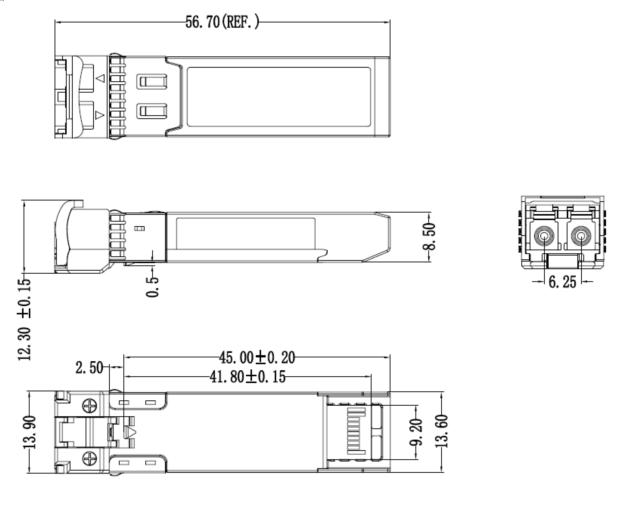

Package Outline Of Cisco SFP-10G-ER40 Compatible Transceiver

Dimensions are in millimeters. All dimensions are ±0.1mm unless otherwise specified. (Unit: mm)

FAQ

Q: Why choose us?

GigaOpto is the leading global supplier of optical transceivers and we have around 10 years of experience in this field. Our advantage:

1. Competitive prices.
2. High-quality products and services.
3. wide compatibility such as Cisco, Juniper, HP, Huawei, Alcatel, H3C and more.
4. Big capability of manufacture for 40K~100K pcs per month.
5. Independent R&D ability.
6. Keep stock, Fast delivery

Q: What is the operating temperature range of the Cisco SFP-10G-ER40 Compatible Transceiver?

Commercial temperature range (COM): 0 to 70°C(32 to 158°F)

Extended temperature range (EXT): -20 to 85°C(23 to 185°F)

Industrial temperature range (IND): 40 to 85°C(-40 to 185°F)

Storage temperature range: -40 to +85°C(-40 to 185°F)
