Copper SFP 10/100/1000BASE-T 100m SGMII Cat 6/6a RJ-45 Optical Transceiver Module
Cisco Compatible 10/100/1000BASE-T 100m SGMII Copper SFP CAT6/6a Optical Transceiver
Description
The GIGAOPTO's T0012-10-C transceiver provides 10/100/1000Base-T throughput up to 100m over a copper connection via an RJ-45 connector. The standard serial ID information compatible with SFP MSA describes the transceiver’s capabilities, standard interfaces, manufacturer and other information. The host equipment can access this information via the 2-wire serial CMOS EEPROM protocol. This hot swappable RJ-45 1G SFP Copper transceiver is ideal for enterprise networking for LAN applications and different other networking places using copper connections.
Specification
| Compatible Brand | CISCO | Compatible Part Number | GLC-TA |
| Form Factor | SFP | Data Rate (Gbps) | 10/100/1000Mbps |
| Connector | RJ-45 | Cable Distance(Max) | 100m |
| DOM Support | No | Fiber Type | Cat 6/Cat 6a |
| Rx LOS | No | Temperature Range |
C-Temp 0 to 70°C (32 to 158°F) I-Temp -40 to 85°C (-40 to 185°F) |
| Power Consumption | 1.05W (Typical) | Supply Current | 300mA ~350mA |
| Protocols | MSA Compliant, IEEE STD 802.3 | ||
Features
- Hot-pluggable SFP footprint
- 10/100/1000Mbps compliant in host systems with SGMII interface
- 100m transmission over Cat6/Cat6a UTP Cable
- TX Disable and RX Los/without Los function
- Fully metallic enclosure for low EMI
- Support TX_ disable and with Link function
- Compact RJ-45 connector assembly
- Access to physical layer IC via 2-Wire serial bus
- Low power dissipation (1.05W typical)
- Detailed product information in EEPROM
- Compliant with IEEE Std 802.3-2002
- Standard serial ID information compatible with SFP MSA
Application
- LAN 10/100/1000Base-T
- Gigabit Ethernet over Cat6/Cat6a Cable
- Switch to Switch Interface
- Router/Server Interface
Compatibility
As a global provider of Brand Compatible Networking products, we Gigaopto have made significant investments over the past few years to support our customers, as well as in our physical infrastructure and test equipment platforms. Our overall trusted engineering and testing capabilities allow us to produce a large selection of Brand Compatible Transceivers.
This (10/100/1000BASE-T Copper SFP SGMII 100m) is 100% compatible with mainstream optical devices. Below is a table of P/N correspondence for different brand modules. For more information, please don't hesitate to contact us.
| Compatible Brand | Compatible P/N | Compatible Brand | Compatible P/N |
| GIGAOPTO | T0012-10-C | Extreme | 10065 |
| CISCO | GLC-TA | Alcatel-Lucent | iSFP-GIG-T |
| Juniper | EX-SFP-1GE-T | Brocade | E1MGTX-A |
| Arista | SFP-1G-TA |
Ordering Information
| P/N | Description | Data Rate | Reach | Media | Interface |
| GTS-T0012-10-A | 1000BASE-T SFP Copper | 1000Mbps | 100m | Cat 5e/6/6a | RJ-45 |
| GTS-T0012-10-C | 10/100/1000BASE-T SFP Copper | 10/100/1000Mbps | 100m | Cat 6/Cat 6a | RJ-45 |
| GTS-T0012-10I-A | 1000BASE-T SFP Copper | 1000Mbps | 100m | Cat 6/Cat 6a | RJ-45 |

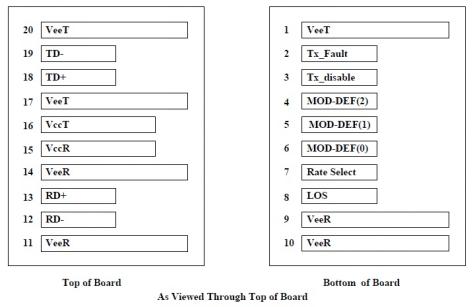

Pin Definition

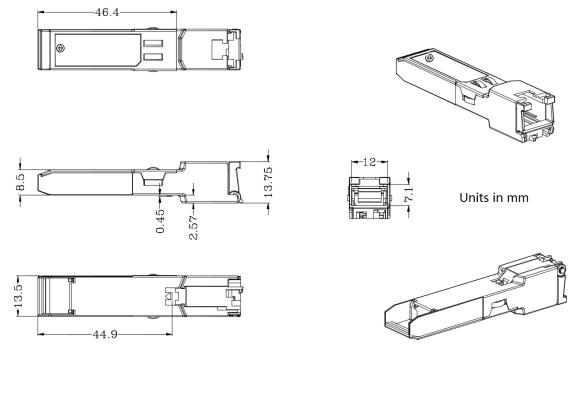

Mechanical Dimensions
