850nm 150m Optical Transmitter Module SFP MMF Duplex LC DOM Optical Transceiver Module 4G Fiber Channel
Cisco Compatible 4GBASE 850nm MMF 150m DOM Duplex LC SFP Fiber Channel Transceiver Module
Description
The GIGAOPTO's GTS-L0842-02DC transceiver is high performance, cost effective small form factor pluggable (SFP) modules for 4x/2x/1x fiber channel and 1000BASE Gigabit Ethernet duplex optical data communication, supporting transmission distance up to 150m with multi mode fiber (MMF) using a wavelength of 850nm. This module is hot pluggable and complies with Class 1 FDA and IEC60825-1 Safety standard. The receiver section uses an integrated detector preamplifier (IDP) mounted in an optical header. This SFP transceiver is built to be compliant with Multi-Source Agreement (MSA).
Specification
| Compatible Brand | CISCO | Compatible PN | DS-SFP-FC4G-SW |
| Product Packaging | SFP | Max Data Rate (Gbps) | 4.25Gbps |
| Connector Type | LC Duplex | Reach | 150m |
| DOM Support | YES | Fiber Type | Multi-Mode Fiber |
| Center Wavelength | 850nm | C-Temp. | 0 to 70°C (32 to 158°F) |
| Power Supply Voltage | 3.3V | Icc | <330mA |
| Optical Components | 850nm VCSEL | Receiver Type | PIN |
| Launched Power | -9~ 0dBm | RX Sensitivity | < -20dBm |
| Extinction Ratio | >5dB | RX Saturation | >-3dBm |
| Protocols | MSA Compliant | ||
Features
- Data rate up to 4.25Gbps
- Duplex LC connector
- Single +3.3V power supply and TTL Logic interface
- Up to 150m on 50/125μm MMF ;
70m on 62.5/125 µm MMF
- Operating temperature range:
Commercial: 0°C~70°C
Industrial: -40°C~85°C
- RoHS Compliant
- Compliant with SFP MSA specification
- Compliant with SFF-8472
Application
- 1.063/2.125/4.25Gbps Fiber Channel
- 1000Base-SX Ethernet
- CPRI/OBSAI
- Other optical links
Compatibility
Each Gigaopto’s optical transceiver is tested in the host device to verify interoperability, and we promise 100% full compatibility on the specified device with a 3-year warranty.
For this (4G SFP FC 850nm 150m), please refer to the P/N correspondence table. If you are interested in knowing more compatibility, you are always welcome to contact us.
| Compatible Brand | Compatible Part Number | Compatible Brand | Compatible Part Number |
| GIGAOPTO | GTS-L0842-02DC | HPE | A7446B |
| CISCO | DS-SFP-FC4G-SW | HPE | AJ715A |
| Intel | TXN31115D000000 | IBM | 22R4902 |
| Brocade | XBR-000097 | Avago | AFBR-57R5AP |
| Brocade | XBR-000139 | Avago | AFBR-57R6APZ |
Ordering Information
| P/N | Package | Data Rate | Wavelength | Distance | Media | Laser Type | TX Power | Temp. |
| GTS-L0826-02DC | SFP | 2.67Gbps | 850nm | 300m | MMF | VCSEL | -9~ 0dBm | 0°C~70°C |
| GTS-L1326-10DC | SFP | 2.67Gbps | 1310nm | 10km | SMF | FP | -8~ -3dBm | 0°C~70°C |
| GTS-L0842-02DC | SFP | 4.25Gbps | 850nm | 150m | MMF | VCSEL | -9~ 0dBm | 0°C~70°C |
| GTS-L1342-04DC | SFP | 4.25Gbps | 1310nm | 4km | SMF | FP | -8~ 0dBm | 0°C~70°C |
| GTS-L1342-10DC | SFP | 4.25Gbps | 1310nm | 10km | SMF | DFB | -8~ 0dBm | 0°C~70°C |
| GTS-L0826-02DI | SFP | 2.67Gbps | 850nm | 300m | MMF | VCSEL | -9~ 0dBm | -40°C~85°C |
| GTS-L1326-10DI | SFP | 2.67Gbps | 1310nm | 10km | SMF | FP | -8~ -3dBm | -40°C~85°C |
| GTS-L0842-02DI | SFP | 4.25Gbps | 850nm | 150m | MMF | VCSEL | -9~ 0dBm | -40°C~85°C |
| GTS-L1342-04DI | SFP | 4.25Gbps | 1310nm | 4km | SMF | FP | -8~ 0dBm | -40°C~85°C |
| GTS-L1342-10DI | SFP | 4.25Gbps | 1310nm | 10km | SMF | DFB | -8~ 0dBm | -40°C~85°C |

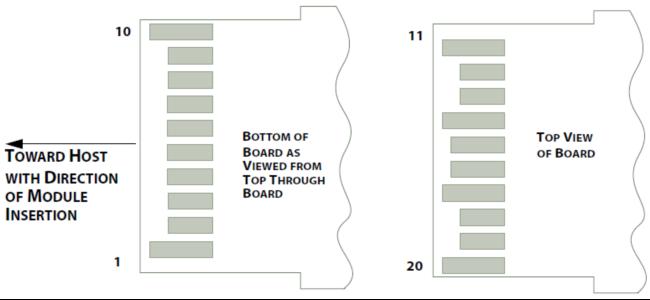

Pin Definition
Typical Application Circuit

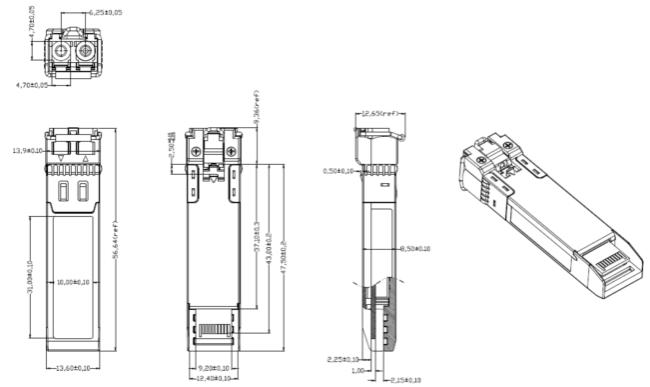

Package Outline
