12Gb/S CWDM 1270 1450nm Video SFP Transceiver Single Optical Digital Diagnostic Transmitter 20km LC

Price Negotiable

Price: negotiable

MOQ: 1

Delivery Time: 1-5 work days

Brand: Gigaopto

Product Description

12G-SDI SFP+ Single-Transmitter Module 1270~1450nm CWDM 20km Single LC SMF Non MSA Pinout

Functional Specification

Product Name	12Gbps CWDM Transmitter	Data Rate	50Mbps~11.88Gbps
Module Type	Single Transmitter	MSA/Non-MSA	Non MSA
Product Packaging	SFP+	Temperature Range	0 to 70°C (32 to 158°F)
Wavelength	CWDM 1270~1450nm	Cable Transmission	20km
Interface	simplex LC	Media	Single-mode fiber
Laser Type	CWDM DFB	Receiver Type	Without
Supply Voltage	3.3V	Supply Current	160mA (Typ.)
TX Power	-1~ +2dBm	Extinction Ratio	>3.5dB
OEM/ODM	Yes	Warranty Time	36-month
Protocols	SMPTE ST 259,SMPTE ST 344, SMPTEST292-1/2, SMPTEST 424, SMPTE ST 2081-1 and SMPTE ST 2082-1

Products Description of 12G-SDI CWDM Single Transmitter Non-MSA Series

Gigaopto’s GTS-Cxx9A-20DCTN series are high-performance,cost-effective single-channel CWDM optical transmitter modules designed to transmit optical serial digital signals as defined in SMPTE 2082, SMPTE 424M, SMPTE 292M, SMPTE 259M, and DVB-ASI.

It provides the maximum transmission distance of 20km over single-mode fiber under harsh conditions and 12Gbps pathological signals via a CWDM wavelength channel from 1270nm to 1450nm.

Features

SD/HD/3G/6G/12G-SDI SFP+ Transmitter
ST 259, ST 292-1,ST 424, ST-2081 and ST-2082 compatible
Metal enclosure for Lower EMI
DFB Single CWDM Transmitter: 1270nm to 1470nm, without Receiver
Supports SDI pathological patterns for SD-SDI, HD-SDI, 3G-SDI,6G-SDI and 12G SDI
ROHS compliant(lead free)
Transmission up to 20km for 12G-SDI
single 3.3V power supply
Hot-pluggable SFP footprint
Operating case temperature range:0 to +70°C
RoHS Compliant

Ordering Information

Part Number	Description	CWDM Channel	Cable Distance	Latch Color
GTS-C279A-20DCTN	12G Video CWDM Transmitter /1-port TX only Non MSA	1270nm / -C27	20km	Light Purple
GTS-C299A-20DCTN	12G Video CWDM Transmitter /1-port TX only Non MSA	1290nm/ -C29	20km	Sky Blue
GTS-C319A-20DCTN	12G Video CWDM Transmitter /1-port TX only Non MSA	1310nm/ -C31	20km	Yellow Green
GTS-C339A-20DCTN	12G Video CWDM Transmitter /1-port TX only Non MSA	1330nm/ -C33	20km	Yellow Ocher
GTS-C359A-20DCTN	12G Video CWDM Transmitter /1-port TX only Non MSA	1350nm/ -C35	20km	Pink
GTS-C379A-20DCTN	12G Video CWDM Transmitter /1-port TX only Non MSA	1370nm/ -C37	20km	Beige
GTS-C399A-20DCTN	12G Video CWDM Transmitter /1-port TX only Non MSA	1390nm/ -C39	20km	White
GTS-C419A-20DCTN	12G Video CWDM Transmitter /1-port TX only Non MSA	1410nm/ -C41	20km	Silver
GTS-C439A-20DCTN	12G Video CWDM Transmitter /1-port TX only Non MSA	1430nm/ -C43	20km	Black
GTS-C459A-20DCTN	12G Video CWDM Transmitter /1-port TX only Non MSA	1450nm/ -C45	20km	Yellow Orange

Applications

Serial Digital Fiber Transmission System for SMPTE ST 259,SMPTE ST 344, SMPTEST292-1/2, SMPTEST 424, SMPTE ST 2081-1 and SMPTE ST 2082-1 Signals
UHDTV/HDTV/SDTV Service Interfaces

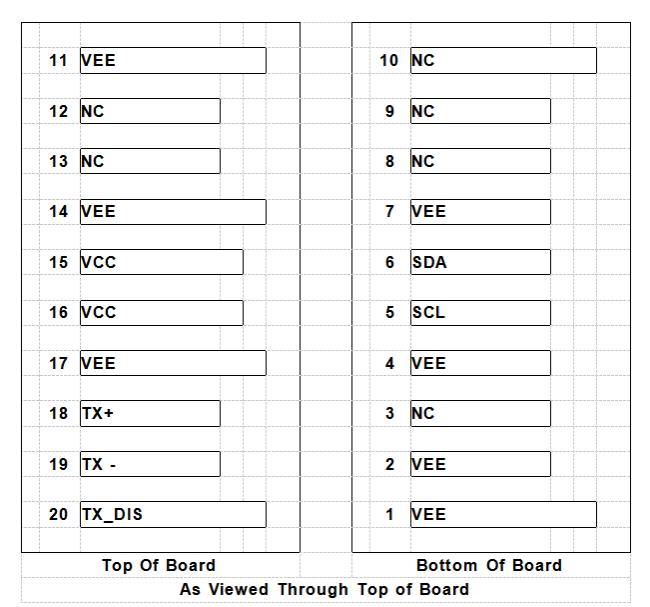

PIN Definition
