6Gbps CWDM 1270nm - 1450nm Video Transceiver Module for SD/HD/3G/6G/SDI
6Gbps CWDM 1270nm - 1450nm Video Transceiver Module for SD/HD/3G/6G/SDI
Products Description of 6G-SDI CWDM SFP 1270nm~1450nm Transceiver Series
This 6Gbps video transceiver series are high performance,cost effective module for two channel video transmission applications.
It supports data rates from 50Mbps to 5.94Gbps and is specifically designed for robust performance in the presence of SDI pathological patterns for SMPTE259M, SMPTE 344M, SMPTE 292M, SMPTE 424M and ST-2081 serial rates.A max link reach up to 20km over Single-Mode Fiber (SMF) via CWDM wavelength from 1270nm to 1450nm channel.
The transceiver includes three sections: a DFB laser, a PIN photodiode integrated with a trans-impedance pre-amplifier (TIA), Reclocker,and a MCU controller. The transceiver is compliant with SFP Multi-Source Agreement (MSA), It is with the SFP+ 20-pin connector to allow hot plug capability. Digital diagnostic functions are available via an I2C.
Functional Specification
| Product Name | 6G Video CWDM SFP | Bit Rate | 50 Mbit/s - 5.94 Gbit/s |
| Module Type | Transmitter + Receiver | MSA/Non-MSA Pinout | MSA |
| Form Factor | SFP | Operating Temperature | Commercial /Industrial |
| Wavelength Channel | CWDM (1270~1450)nm | Transmission | 20km |
| Optical Connector | Duplex LC | Cable Type | G.652 SMF |
| LD Type | DFB CWDM | PD Type | PIN |
| Supply Voltage | 3.3V | Supply Current | 400mA (Max) |
| TX Power | -6~0dBm | Receiver Sensitivity | < -14dB |
| Extinction Ratio | >7.0dB | Receiver Overload | > 0.5dBm |
| Digital Diagnostic | Supported | Warranty | 3 years |
| Video Pathological Patterns Support | yes | Weight | 0.025kg |
| Application | SD/HD/3G/6G SDI | ||
Features
- Supports video pathological patterns for SD-SDI, HD-SDI, 3G-SDI and 6G-SDI
- Operating data rate from 50Mbps to 5.94Gbps
- Metal enclosure, low EMI
- 1270nm-1450nm CWDM DFB laser, PIN photodiode
- Fiber distance up to 20km
- Single 3.3V Power supply
- Duplex LC Connector Interface
- Hot Pluggable
- Compliant with SFP MSA and SFF-8472
- Real time digital diagnostic monitoring through the I2C interface
- Operating case temperature:
0°C to +70°C
-40°C to +85°C
- RoHS-6 compliant and Lead-Free
Applications
- Camera, Video, Security Monitoring, etc
- 4K /HDTV/SDTV Service Interfaces
Ordering Information
| Part Number | Description | Data Rate | CWDM Channel | Cable Distance | Latch Color |
| GTS-C2760-20DC | 6G SDI CWDM DFB SFP Module 1270nm PIN 20km SMF Dual LC MSA | 6Gbps | 1270nm /-C27 | 20km | Light Purple |
| GTS-C2960-20DC | 6G SDI CWDM DFB SFP Module 1290nm PIN 20km SMF Dual LC MSA | 6Gbps | 1290nm/ -C29 | 20km | Sky Blue |
| GTS-C3160-20DC | 6G SDI CWDM DFB SFP Module 1310nm PIN 20km SMF Dual LC MSA | 6Gbps | 1310nm/ -C31 | 20km | Yellow Green |
| GTS-C3360-20DC | 6G SDI CWDM DFB SFP Module 1330nm PIN 20km SMF Dual LC MSA | 6Gbps | 1330nm/ -C33 | 20km | Yellow Ocher |
| GTS-C3560-20DC | 6G SDI CWDM DFB SFP Module 1350nm PIN 20km SMF Dual LC MSA | 6Gbps | 1350nm/ -C35 | 20km | Pink |
| GTS-C3760-20DC | 6G SDI CWDM DFB SFP Module 1370nm PIN 20km SMF Dual LC MSA | 6Gbps | 1370nm/ -C37 | 20km | Beige |
| GTS-C3960-20DC | 6G SDI CWDM DFB SFP Module 1390nm PIN 20km SMF Dual LC MSA | 6Gbps | 1390nm/ -C39 | 20km | White |
| GTS-C4160-20DC | 6G SDI CWDM DFB SFP Module 1410nm PIN 20km SMF Dual LC MSA | 6Gbps | 1410nm/ -C41 | 20km | Silver |
| GTS-C4360-20DC | 6G SDI CWDM DFB SFP Module 1430nm PIN 20km SMF Dual LC MSA | 6Gbps | 1430nm/ -C43 | 20km | Black |
| GTS-C4560-20DC | 6G SDI CWDM DFB SFP Module 1450nm PIN 20km SMF Dual LC MSA | 6Gbps | 1450nm/ -C45 | 20km | Yellow Orange |

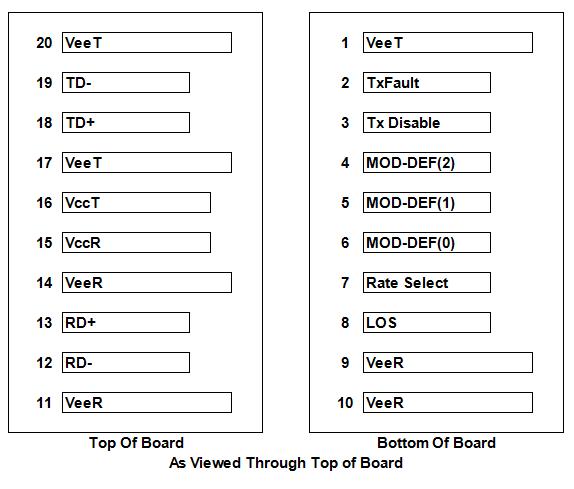

PIN Definition
