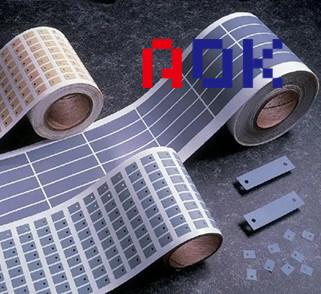

Nontoxic Heat Conductive Sheet
Price:
Negotiable
MOQ:
1000pcs
Delivery Time:
13-15working days
Brand:
AOK
Product Description
Silicone Electrical Insulation Sheet With Good insulation For LED
| Typical Properties | ||
| Properties | Attribute | Test Method |
| Color | Pink | Visual |
| Material | Glass fiber + thermal conductive silicone | / |
| Thickness(mm) | 0.23 | / |
| Density (g/cc) | 2.5 | ASTM D792 |
| Hardness(Shore A) | 85 | ASTM D2240 |
| Tearing strength(KN/m) | ＞20 | ASTM D624 |
| Weight Damnify(%) | ≤1.0 | / |
| Usage Temperature (°C) | - 40 to 150 | / |
| Flammability | V-0 | UL 94 |
| Shelf Life(month) | 12 | Temperature <40℃ avoid extrusion and exposure to the sun |
| Electrical | ||
| Breakdown Voltage (kV) | > 5.5 | ASTM D149 |
| Volume Resistivity (Ω.cm) | 1014 | ASTM D257 |
| Thermal | ||
| Thermal Conductivity (W/m-K) | 1.6 | ISO22007-2 |
|
Thermal Impedance (℃-in2/W, 50psi) |
＜0.61 | ASTM D5470 |
Features
High performance film
Excellent electrical insulation properties
Flammability UL 94 V-0
Low thermal resistance
Typical Applications
Power Modules
Heat generation power module
Automotive Electronic Heat Modules
Motor Control
Power Semiconductor
