Odorless Heat Paste For CPU , Anticorrosive Computer Thermal Grease
1W/m.K White Silicone Heat Sink Thermal Grease For CPU & GPU Support To OEM&ODM
| Attribute | Value | Test Method |
|---|---|---|
| Composition | Non-Vulcanized Silicone Oil and Thermally Conductive Filler Mixture | - |
| Color | White | Visual |
| Density(g/cc) | 2.8 | ASTM D792 |
| Usage Temperature(℃) | -40~150 | -- |
| Thermal | ||
| Thermal conductivity(W/m.K) | 1.0 | ASTM D5470 |
| Thermal Resistance(℃-in2/W)0.1mm@50psi) | 0.15 | ASTM D5470 |
Product feature
■ Thermal conductivity: 1.0 ~ 5.0 W/m.K
■ No cure required
■ High reliability
■ Minimizes contact resistance
■ extremely low volatilization loss, non drying and non melting, good material adaptability and wide temperature range (-50 ∽ +250 ℃)
Typical applications
■ suitable for surface coating and overall potting of microwave communication, microwave transmission equipment, special power supply, regulated power supply and other microwave devices
■ IT: Notebooks, Tablets, Memory Modules
■ Industrial: LEDs, Power Supplies
■ it is suitable for filling the gap between the heating body and the heat dissipation facilities in various electronic and electrical equipment to improve the heat dissipation effect
Product Reminder
Packing specification
Packing specification: 30 ml/1Kg 2kg 10kg
Instructions

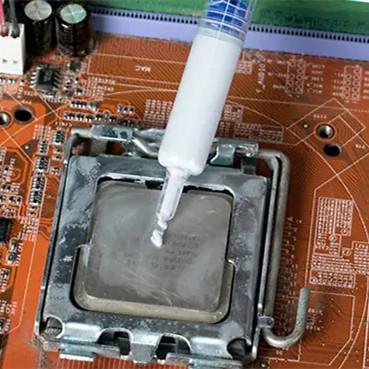

Clean the application surface first, then stir the silicone grease evenly, and then apply the silicone grease to the surface by dot coating, brushing or screen printing. If screen printing is used, it is recommended to use 60-80 mesh nylon screen, and a rubber scraper with a hardness of about 70. When coating, apply silicone grease at about 45 degrees to the coated surface. After the operation, unused products should be sealed and stored in time.
Shelf life & Storage:
Shelf life of the product is 6 months after date of shipment. Store in a cool, dry, well ventilated place.
