Shockproof Heat Sink Thermal Grease Anti Corrosion Multiscene
Silver Heat Sink Thermal Grease For Coolers Heat Sink Composed of Carbon Polysynthetic
| Attribute | Value | Test Method |
|---|---|---|
| Composition | Non-Vulcanized Silicone Oil and Thermally Conductive Filler Mixture | - |
| Color | White | Visual |
| Density(g/cc) | 2.8 | ASTM D792 |
| Usage Temperature(℃) | -40~150 | -- |
| Thermal | ||
| Thermal conductivity(W/m.K) | 1.0 | ASTM D5470 |
| Thermal Resistance(℃-in2/W)0.1mm@50psi) | 0.15 | ASTM D5470 |
Product feature
■ excellent thermal conductivity, electrical insulation and use stability, good high and low temperature resistance.
■ water resistant, non curing, non corrosive to metal materials in contact (copper, aluminum, steel)
■ High reliability
■ Minimizes contact resistance
■ High volume applications
Typical applications
■ suitable for high-voltage corona elimination, non combustible coating used in connection with high-voltage flyback transformer in TV and similar applications
■ IT: Notebooks, Tablets, Memory Modules
■ Industrial: LEDs, Power Supplies
■ Consumer Electronics: Gaming Systems, LCD TVs, Displays
Product Reminder
Packing specification
Packing specification: 30ml/ 1Kg 2Kg 10Kg
Instructions

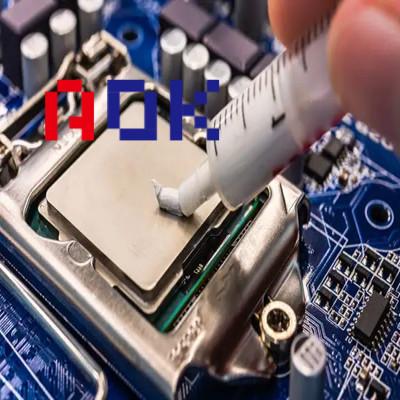

Clean the application surface first, then stir the silicone grease evenly, and then apply the silicone grease to the surface by dot coating, brushing or screen printing. If screen printing is used, it is recommended to use 60-80 mesh nylon screen, and a rubber scraper with a hardness of about 70. When coating, apply silicone grease at about 45 degrees to the coated surface. After the operation, unused products should be sealed and stored in time.
Shelf life & Storage:
Shelf life of the product is 6 months after date of shipment. Store in a cool, dry, well ventilated place.
