Durable Silicone Thermal Conductive Pad 10mm Thickness For Telecommunications
Price:
Negotiable
MOQ:
1000pcs
Delivery Time:
13-15working days
Brand:
AOK
Product Description

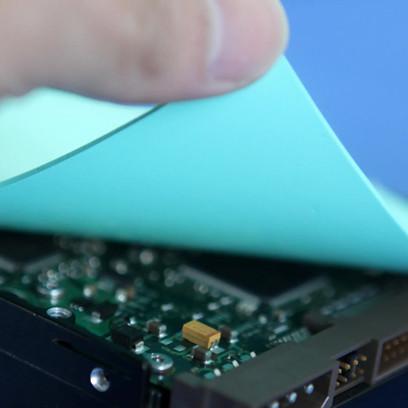

10.0mm Thickness Silicone Thermal Conductivity Pad For Telecommunications
| Attribute | Value | Test Method |
|---|---|---|
| Composition | Ceramic Filler + Silicone | - |
| Color | Pink | Visual |
| Thickness (mm) | 0.5~12.0 | ASTM d374 |
| Density (g/cc) | 2.3 | ASTM D792 |
| Hardness (Shore OO) | 20±5 | ASTM D2240 |
| Tensile Strength(kn/m) | 0.4 | ASTM D624 |
| Elongation % | 52 | ASTM D412 |
| Usage Temperature(℃) | -40~150 | - |
| Electrical | ||
| Breakdown Voltage(kv/mm) | ≥6.5 | ASTM D149 |
| Dielectric Constant(@1mhz) | 5.3 | ASTM D150 |
| Volume Resistivity(Ω.cm) | 1.0*1012 | ASTM D257 |
| Flammability | V-0 | UL94 |
| Thermal | ||
| Thermal conductivity(W/m.K) | 1.2±0.1 | ASTM D5470 |
Product advantage
1. The product is environmentally friendly.
2. Be Able to customize production and develop on your own
3. The thermal conductive silicon sheet has the characteristics of high thermal conductivity, high flexibility and low stress.
4, with the EU CE certification, ISO certification, product testing report.
5. Short lead time
Typical applications:
1. Networking and Telecommunications
2. IT: Notebooks, Tablets, Power Conversion
3. Industrial: LEDs, Power Supplies and Conversion
4. Automotive: Control Modules, Turbo Actuators
5. Consumer Electronics: Gaming Systems, and LCDs
