0.3-3mm Precision Welded Steel SPCC Pipe 12-40mm 1010 1020 1035

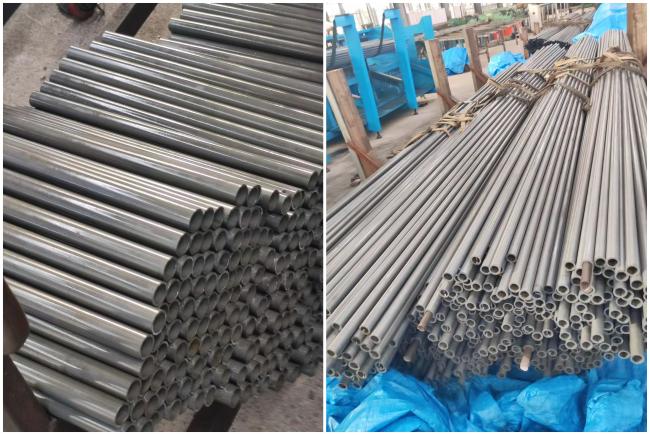

STKM11A SPCC Precision Welded Steel Pipe For Mechanical Structure
Outer Diameter:0.3-3mm
Thickness:12-40mm
STKM11A is the steel grade of carbon steel pipe for Mechanical Structure.
| STKM 11A Chemical Components and Mechanical Performance | ||||||||||||
Standard |
Grade |
Chemical Components | Mechanical Performance | |||||||||
| C | Si | Mn | P | Cu | Ni | S | Cr | Tensile Strength (Mpa) |
Yield Strength (Mpa) |
Elongation (%) |
||
| STKM11A | A | 0.07-0.14 | 0.17-0.34 | 0.35-0.65 | ≤0.35 | ≤0.25 | ≤0.25 | ≤0.04 | ≤0.15 | ≥335 | ≥205 | ≥31 |
Foreign Brand
| GB | ASTM | JIS | EN |
| 08F | 1008 | SPHD/SPHE | DC01 |
Product Features
1. The outer diameter is smaller.
2. High precision and small batch production
3. The cold drawn (rolled) finished product has high precision and good surface quality.
4. The cross-sectional area of the steel pipe is more complicated.
5. The performance of the steel pipe is more superior, and the metal is relatively dense.
Application
1. Automotive and mechanical pipes
2. Petroleum cracking pipes
3. High Pressure Boiler Pipe
4. Low and middle pressure fluid transportation pipeline
5. Chemical fertilizer equipment pipe
