China Bakeable All Metal Vacuum Valves Stainless Steel Bellows 316L Shell 304 for sale
China Bakeable All Metal Vacuum Valves Stainless Steel Bellows 316L Shell 304 for sale
China Bakeable All Metal Vacuum Valves Stainless Steel Bellows 316L Shell 304 for sale
China Bakeable All Metal Vacuum Valves Stainless Steel Bellows 316L Shell 304 for sale
China Bakeable All Metal Vacuum Valves Stainless Steel Bellows 316L Shell 304 for sale

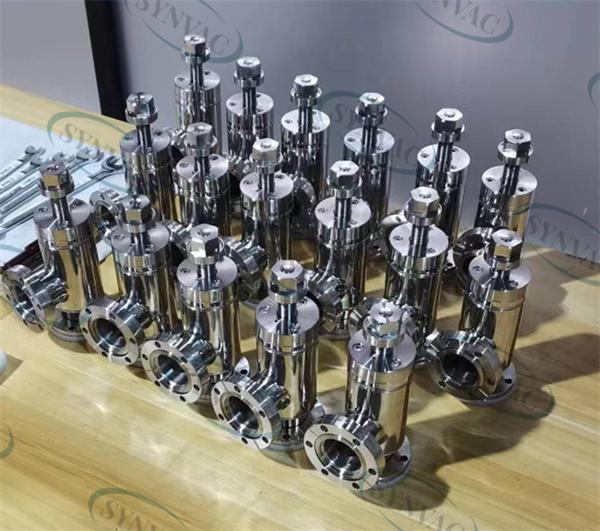

Bakeable All Metal Vacuum Valves Stainless Steel Bellows 316L Shell 304

Price Negotiable
Price: Negotiable
MOQ: 1PCS
Delivery Time: Negotiable
Brand: SYNVAC
Product Description

Specifications

●Bakeability: 400℃(open), 300℃(close)

●Pressure Range: Below 10-10 torr

●All stainless steel construction

●Bellows stem seal

●Leak Rate: 8.7x10-11 Pa.m3/sec

●Closure Torque: CR16 First 150kg-cm, Maximum 250kg-cm

                             CR35 First 300kg-cm, Maximum 600kg-cm

●Orientation: Any position
