PQWT-L6000 plumbers water leak detector leak detection device equipment;plumbing tools for professional plumber 5m

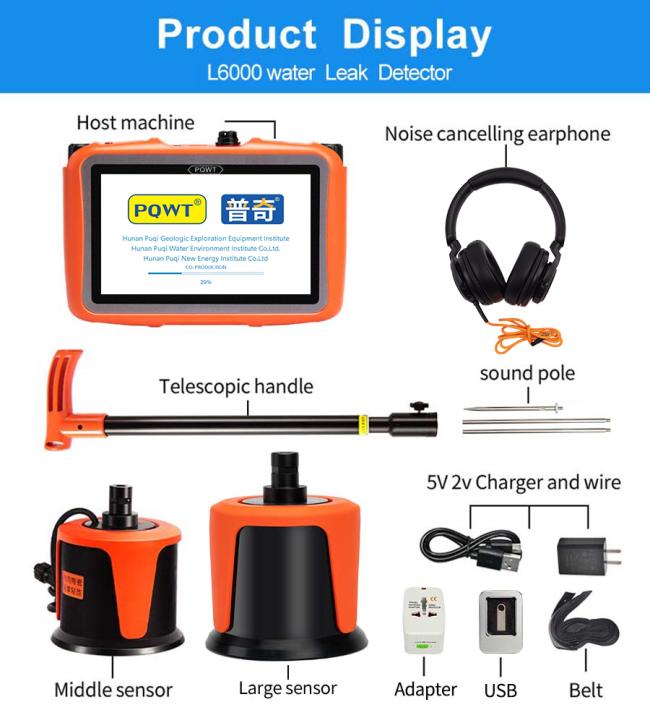

The major components of the instrument include:

Host Machine  (touch screen)

Noise Reduction headphone

Middle Sensor(for outdoor normal environment),

Telescopic Pole (for connecting the sensors),

Sound pole (for inserting soft soil, lawn)

Large Sensor(for outdoor noisy environment)

Operate principle

PQWT-L6000 outdoor leak detection device equipment collects leaking sound signal through its sensor. It is the newly updated plumbing tools for professional plumber, it is applied to different detecting leakage of outdoor water pipe, fire pipe, heating system, and underground heating floor pipe. By collecting and analyzing leakage signal, it solves the problem of pressure pipe water leak

Widely Use

It Can apply to different outdoor detecting environment and soil, such as concrete land, soft soil and so on and suitable for different kinds of underground metal and non-metallic pressure pipe

Preparation:

1. Make sure if there is a leakage problem in pipes. Take the fire pipes for example, it is necessary to check the pipeline pressure holding or decreasing pressure of the pressure meter in the pump station.

2. Search and check any unknown water flow around the pipe well.

3. Observe if there are any land subsidence around the pipes and if there abnormal any wetlands.

4. Use the detector to check the valve and abnormal leaking noise of the exposed pipes. It could be mainly checked if there are any signs of the abnormal leaking noise.

5. Use the underground metal pipe detector to find the direction of the pipes, if the direction is unknown.

Products picture

Measurement Method

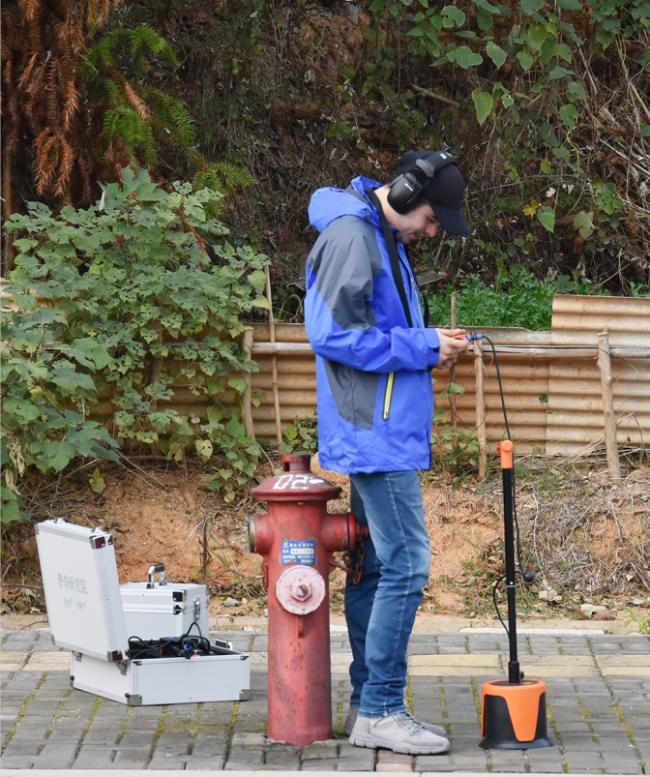

Customer Case show

Company  Imformation

Hunan Puqi Water environment Institute is a professional institution in China who engaged in the R & D, manufacturing and sales of pipe water leak detector, leakage automatic analyzer, thermal imager, pipe blockage detector, geophysical prospecting underground water detector. we have exports more than 100 countires and get good feedback from our users.

Certificate
