OZ Series Compact Geared Hydraulic Orbit Motor OZ36 OZ50 OZ315 OZ400
1.Name:OZ Series Hydraulic Motor
2.Introduce:
OZ series motor are small volume. economical type which is designed with shaft distribution flow.which adapt the Gerator gear set design and provide compact volume, high power and low weight.
3.Characteristic features:
(1)Advanced manufacturing dovicos for tho Gerotor gear set, which provide small volume, high efficiency and long life.
(2)Shaft seal can bear high pressure of motor of which can be used in parallel or inseries.
(3)Advanced construction design, high power and low weight.
4.Main Specification:
Technical data for OZ with 25and1in and 1 in splined and 28.56 tapered shaft
| Code | Displacement [cmrev] |
Max.Speed [rpm] |
Max.Torque [Nm] |
Max.output [kw] |
Max.pressure [MPa] |
Max.Oi FlowAL/min] |
|||
| cont, | cont. | int. | cont. | int. | cont. | int. | cont. | ||
| OZ36 | 37 | 1081 | 51 | 68 | 5.2 | 8.6 | 10.5 | 14 | 40 |
| OZ50 | 51.7 | 774 | 73 | 96 | 5.2 | 8.6 | 10.5 | 14 | 4o |
| OZ80 | 77.7 | 515 | 106 | 143 | 5.2 | 8.6 | 10.5 | 14 | 4o |
| OZ100 | 96.2 | 416 | 140 | 178 | 5.2 | 8.6 | 10.5 | 14 | 40 |
| OZ125 | 117.9 | 339 | 162 | 218 | 5.2 | 8.6 | 10.5 | 14 | 40 |
| OZ160 | 155.5 | 257 | 216 | 288 | 5.2 | 8.6 | 10.5 | 14 | 40 |
| OZ200 | 189.9 | 211 | 264 | 351 | 5.2 | 8.6 | 10.5 | 14 | 40 |
| OZ250 | 231 | 173 | 281 | 351 | 4.6 | 7 | 9 | 11.5 | 40 |
| OZ315 | 311.7 | 128 | 312 | 433 | 3.4 | 5.8 | 7 | 10.5 | 40 |
| OZ400 | 386.2 | 104 | 392 | 582 | 3.4 | 5.8 | 7 | 10.5 | 40 |
Intermitent operationc the permissslble walues mayoccur for max10% of ewery minute

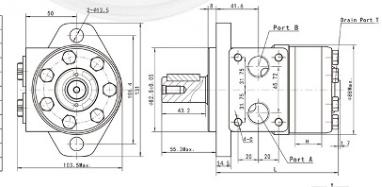

5.OZ DIMENSIONS AND MOUNTING DATA:
| Type | H | L | |
| OZ36 | 7 | 101 | |
| OZ50 | 7 | 101 | |
| OZ80 | 10.5 | 104.5 | |
| OZ100 | 13 | 107 | |
| OZ125 | 16 | 110 | |
| OZ160 | 21 | 115 | |
| OZ200 | 26 | 120 | |
| OZ250 | 32 | 126 | |
| OZ315 | 42 | 136 | |
| OZ400 | 52 | 146 |
|
Mounting |
D (depth) | M (depth) | S (depth) | P (depth} | R (depth) |
| P(A.B) | G1/2 (15) | M22x1.5 (15) | 7/8-14 O-ring (16.7) | 1/2-14NPTF (15) | PT(RC)1/2 (15) |
| C | 4-M8 (13) | 4-M8 (13) | 4-5/16-18UNC (13) | 4-5/16-18UNC (13) | 4-MB (13) |
| T | G1/4 (12) | M14x1.5 (12) | 7/16-20UNF (12) | 7/16-20UNF (12) | PT(RC)1/4 (9.7) |
