Fixed Displacement Hydraulic Vane Pump Yuken PV2R2 Vane Pump
1.Name:PV2R2 Vane Pumps with High Pressure and Lower Noise
2.Intriduction:
PV2R Series vane pumps with high pressure and lower noise are high-performance products, which are developed and domestically produced by our company, featured by advanced performance, reasonable structure, good creditability, lower noise, ultra-low pulse and stable quality and so on. Precisely made, the product can be used in the equipment with high precision and low noise, and is widely used in cutting, plastic,leather, forging and engineering machinery fields, and son on.
3.Specification:
| Model | Displacement mL/r |
Max. pressure | Speed r/min |
Input power kW |
Weight kg |
|||||||
| Special oil |
Antiwear oil |
Common oil |
Antiwear water glycol fluid |
Water glycol fluid |
Water-oil emulsions |
Phosphate ester fluid |
Min. | Max. | ||||
| PV2R2-17 | 17.7 | 21 | 17.5 | 14 | 16 | 7 | 7 | 14 | 600 |
1800 (1200) |
7.8 | 16 |
| PV2R2-26 | 26.6 | 11.7 | ||||||||||
| PV2R2-33 | 32.8 | 15.5 | ||||||||||
| PV2R2-41 | 41.7 | 18.9 | ||||||||||
| PV2R2-47 | 47.9 | 23.2 | ||||||||||
| PV2R2-53 | 55.7 | 24 | ||||||||||
| PV2R2-59 | 58.2 | 24.9 | ||||||||||
| PV2R2-65 | 63.3 | 29.4 | ||||||||||
| PV2R2-70 | 70.3 | 16 | 16 | 1200 | 31.6 | 17 | ||||||
| PV2R2-75 | 78.1 | 35.7 | ||||||||||
| PV2R2-85 | 82.7 | 37.5 | ||||||||||

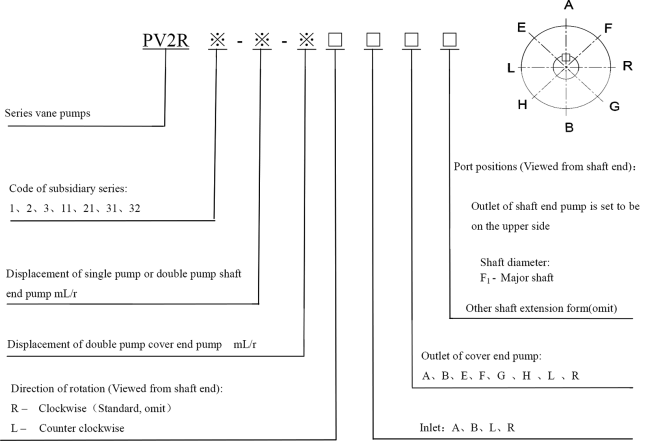

4.Model Code:

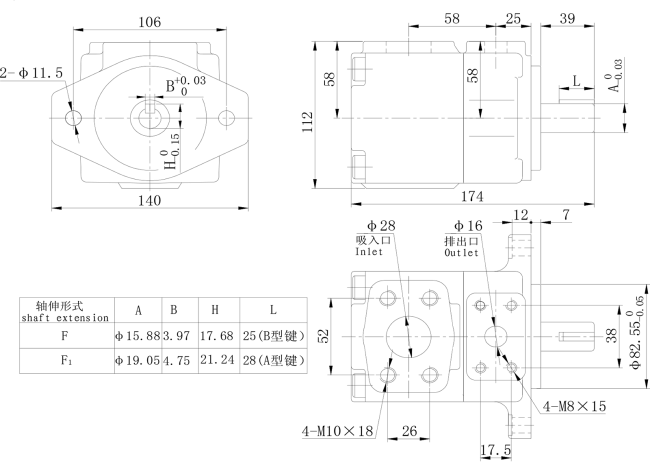

5.Installation and Use:
Note:
(1)When pressure of pumps exceeds 16MPa, with displacement of "4" "6" "8", speeds should be more than 1450 r/min.
(2)Reduce the negative pressure of the inlet when the Single Pump or double pumps with large displacement at high speed.
(3)The numerical number in bracket is the one using phosphate ester fluid and water containing hydraulic fluid.
(4)Speed at 1000r/min is suggested on occasions with lower noise strictly required.
(5)When the working fluid is phosphate ester fluid, it uses special sealing (FPM),Prefix [F-] to the specified model when ordering.
(6)Input power is available in working conditions of 16 MPa and 1500r/min.
