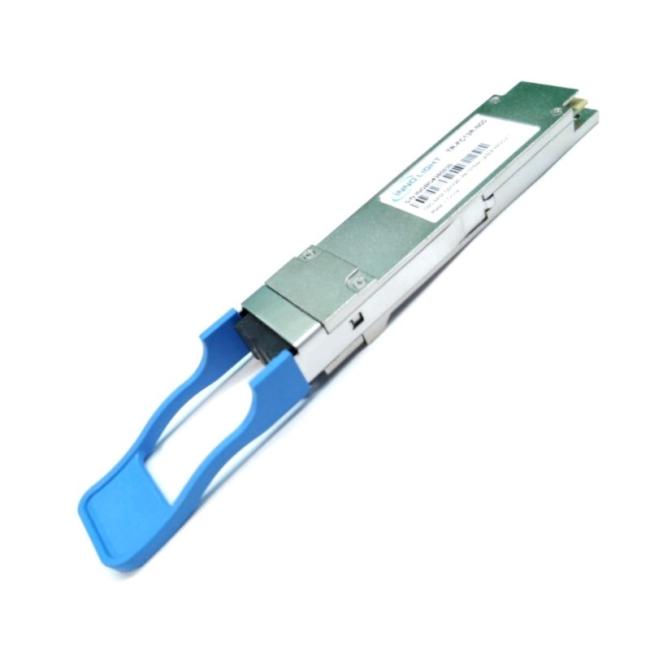

CWDM4 InnoLight 100G QSFP28 Module 10km Optical Transceiver TR-FC13X-N00
InnoLight 100Gb/s QSFP28 eCWDM4 10km Optical Transceiver TR-FC13X-N00
| Fiber Type | Single mode |
| Weight | 0.06kg |
| Warranty | 1 Year |
| Tx power | -6.5 to + 2.5 dBm |
| Rx sensitivity | -13 to -2.5 dBm |
| Extinction Ratio | 3.5dB |
| Power consumption |
4.5W
|
| Applications |
Data Center, 100G Ethernet |
- Compliant to QSFP28 Extended CWDM4 (eCWDM4) MSA
- Four CWDM lanes MUX/DEMUX design
- Supports 103.1Gb/s aggregate bit rate
- Up to 10km transmission on single mode fiber (SMF) with RS-FEC
- Operating case temperature: 0 to 70oC
- 4x25G electrical interface (OIF CEI-28G-VSR)
- Maximum power consumption 3.5W
- LC duplex connector
- RoHS compliant
- Data Center
- 100G Ethernet
- 100G Campus Link
- Enterprise networking
The QSFP28 100G TR-FC13X-N00 is a transceiver module designed for low cost 10km optical communication applications.
The module converts 4 inputs channels (ch) of 25Gb/s electrical data to 4 CWDM optical signals, and multiplexes them into a single channel for 100Gb/s optical transmission.
Reversely, on the receiver side, the module optically de-multiplexes a 100Gb/s input into 4 CWDM channels signals, and converts them to 4 channel output electrical data.
FAQ
Q1. Are your Optical Transceivers original?
A1.Yes, all our optical transceivers are guaranteed 100% original!
Q2.How do you guarantee the quality of SFP?
A2.We have professional testing equipment and QC team. Every unit will be fully tested with perfect performance before shipping.
Q3. What is the operating temperature range of QSFP28 100G TR-FC13X-N00?
A3: Commercial temperature range(COM) : 0 to 70°C(32 to 158°F)
Extended temperature range(EXT): -5 to 85°C(23 to 185°F)
Industrial temperature range(IND): -40 to 85°C(-40 to 185°F)
Storage temperature range: -40 to +85°C(-40 to 185°F)
Q5. What are the trade terms?
A5.Lead Time: 1 day after confirm your payment (In stock, we need 1 day to fully test them)
Payment term: Western Union, T/T, Alipay, Escow, Money Gram
Warranty: 1 Year
