IP44 Dimmable Ceiling Spotlights , COB Mini LED Recessed Spot Lights
Ceiling LED Mini Spot Light 1W 2700K or 3000K IP44 Dimmable COB Recessed Spotlight
Dimensions:
Ceiling void depth: 24mm
Cut-out: 25mm
Height: 26mm
Diameter: 30mm
Quick Detail:
Luminous flux:
100lm @3000K
80lm @2700K
(You can only choose one CCT mode)
Beam angle: 18°or 45°
Input Voltage: 3Vac
Colour rendering (CRI): 80Ra
Luminaire class:Class II
Ingress protection:Luminaire IP44, driver IP20
Lifetime:L50/B10>50,000h
( You need choose the Beam angle you needed)
Specifications:
| LED Light source | COB |
| Lamp power (W) | 1 |
| CRI (Ra>) | 80 |
| Working lifetime | 50000 |
| Certificate | CE, EMC, LVD, ROHS, NEMKO |
| Brand name | Luminans |
| Application | Indoor lighting |
| Color | White |
| Beam angle: | 18 degrees and 45 degrees |
| Warranty | 5 |
| Lamp luminous | 80lm/100lm |
| Color temperature | 2700K/3000K |
| Lamp body material | Aluminum |
| Model number | JP-9505 |
| MacAdam factor | SDCM<3 |
| Material | Aluminum |
| Size | Dia 30mm |
| Tilt | Fixed |
| Input Voltage | 220-240 |
| Lamp efficacy | 53lm/w |
| Working temp. | -20C - 50C |
| IP Rating | IP20 |
| Item Type | LED spotlight |
| Product size | 30x26mm |
| Cutout | 25mm |
| Packing details: | 100pcs/ctn |
| Delivery time |
25-35 days |
Advantages:
No harsh to human eyes secure your life.
Anti-Glare - UGR<19
Serial Connection - Can work up to 4 spotlights with our triac dimmable driver.

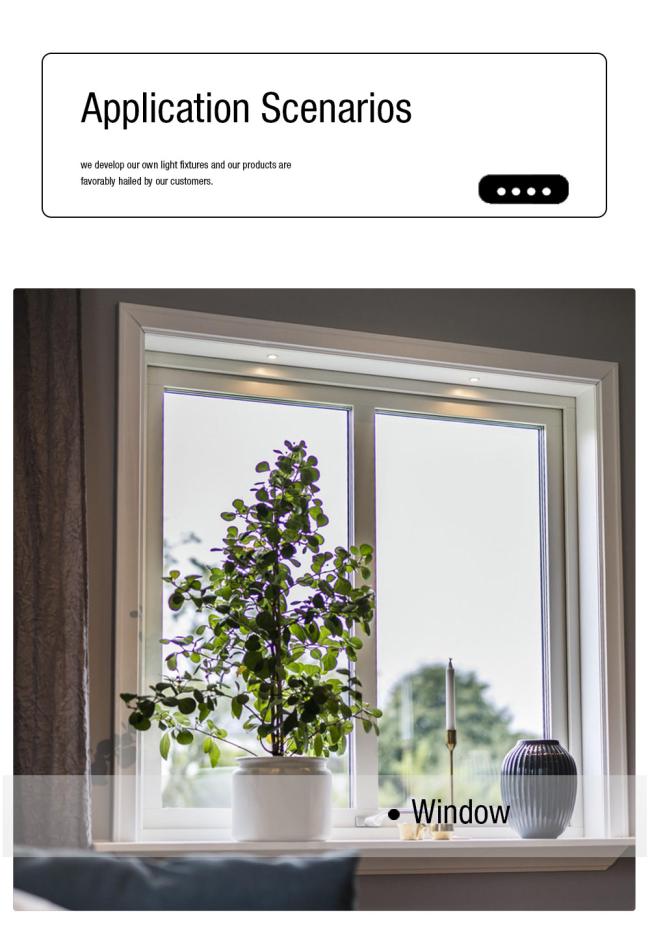

Application Scenarios - We develop our own light fixtures and our products are favorably hailed our customers.
LED Mini Spotlight - Spotlight has low build height and suitable for kitchen, window, cabinet applications.
Good Heat Dissipation - Aesthetic desigh with high quality aluminium and high precision, low tolerance on each part.
Flood Or Spot - The width of the object or the distance between the luminaires, we can provide 45 degrees and 18 degrees for option.
Dimmable - Min dim level < 10%. Compatible with most mainstream European trailing/leading edge dimmers.
FAQ:
1.CAN YOU PROVIDE OEM OR ODM SERVICE?
We have R&D team both in Europe and China which have experience in lighting field more than 12 years. All of our designers are ready for real- izing your ideas from sketch to finished one. And weensure your details would be confidential in your market.
2.HOW CAN I GET A SAMPLE FOR QUALITY CHECK?
Sample order or trial order would be supported for quality check. Most of our designs have stock material for fast delivery.
3.WHEN CAN I GET THE QUOTATION?
We would get you back in12 hours when you send us enquiry by email or call us,
4.WHAT IS THE TERMS OF PAYMENT?
We accept L/C, T/T at sight-180 days, OA/DP 30-180 days.
5.WHATIS THE TERMS OF DELIVERY?
We accept FOB, CIF, DAP, EXW, etc.You could choose one of the most convenient and cost effective way for you.
