Corn Hammer Mill For Sale
Price:
$860.00/sets 1-4 sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
BEDO
Product Description
Corn Hammer Mill For Sale
Product Description
Stainless steel hammer crusher is a tangential-feeding hammer crusher, which can crush all kinds of dry feed, such as corn,sorghum, husk, rice straw, wheat straw, potato cane, corn stalk, peanut cane, bean stalk and so on. This series of crusher has simple structure, high production efficiency, simple operation, reliable use and easy maintenance; Suitable for farm, livestock farm, rural professional use.
Specification

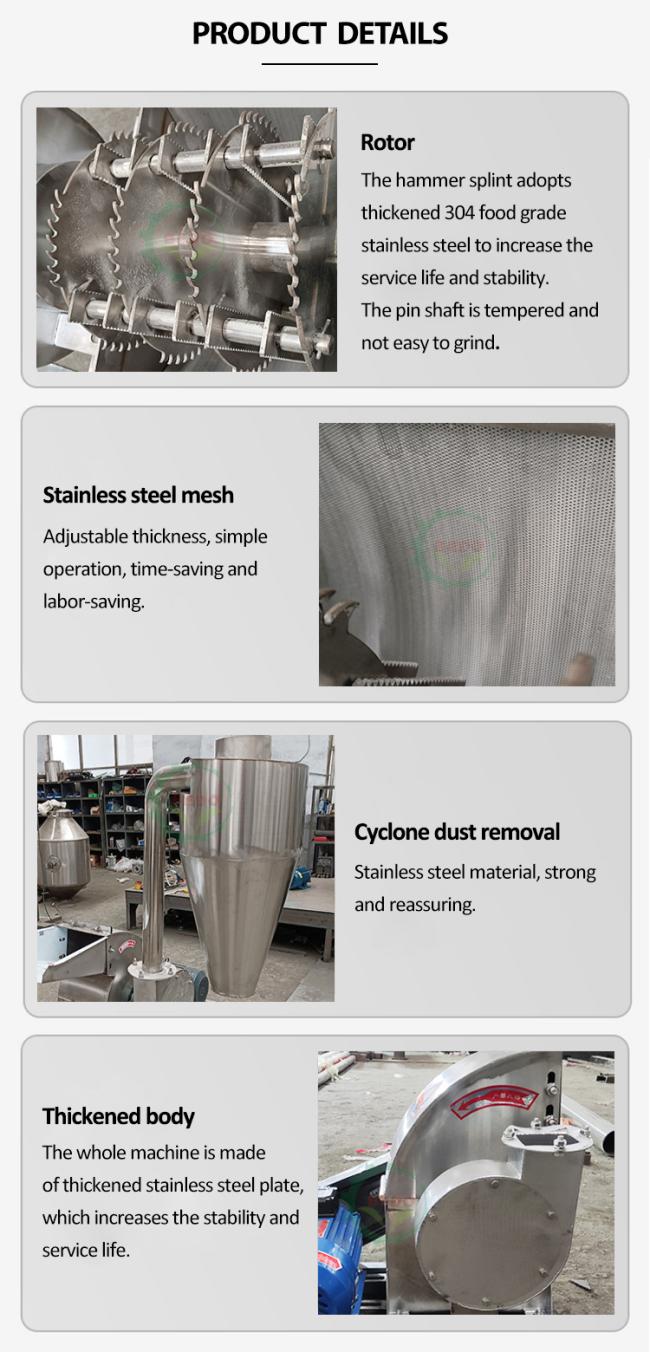

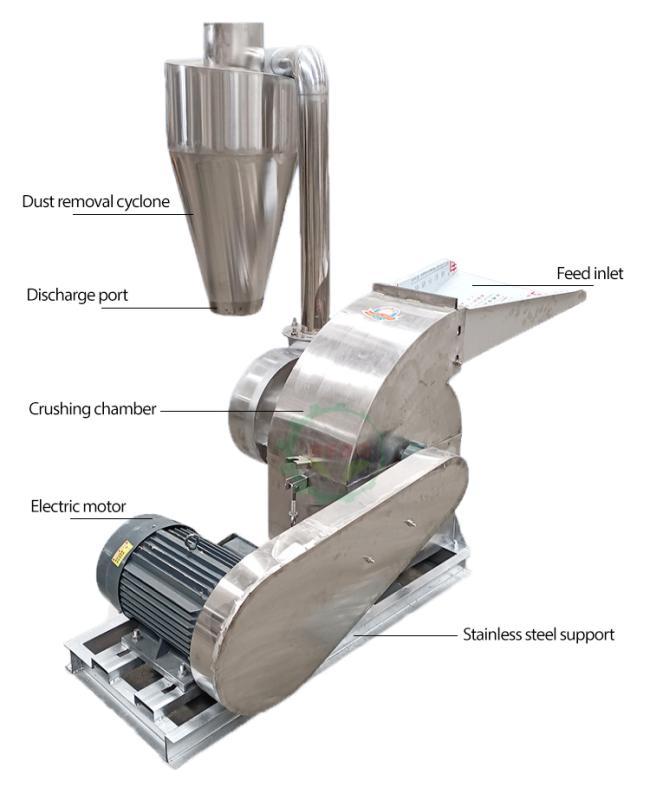

Stainless steel hammer mill is composed of hopper, upper and lower body, rotor, screen, feeding tube and other parts. Users can be equipped with storage bags or silos according to their own needs.After the material enters the crushing chamber from the hopper, it is broken by the high-speed rotating hammer. Under the air flow, the broken material along the outer edge of the rotor, continuous and hammer, tooth plate, screen, collision, rub and be quickly crushed. The pulverized powder particles are quickly transported to the storage bag or bin through the sieve by centrifugal pressure of the rotor and suction force of the fan.
Technical Data
Model | Power | Hammer | Speed | Weight | Feed Inlet | Capacity |
BD-SS320 | 3KW | 16 | 4000 | 45KG | 180*180MM | 50-200KG/H |
BD-SS360 | 5.5KW | 16 | 4000 | 60KG | 200*180MM | 200-400KG/H |
BD-SS400 | 7.5KW | 16 | 4000 | 80KG | 240*180MM | 450-600KG/H |
BD-SS420 | 11KW | 24 | 4000 | 100KG | 280*200MM | 500-650KG/H |
BD-SS500 | 15KW | 24 | 4000 | 150KG | 300*200MM | 600-800KG/H |
BD-SS600 | 18.5KW | 24 | 3400 | 360KG | 450*320MM | 700-1500KG/H |
BD-SS750 | 22KW | 24 | 3400 | 400KG | 560*380MM | 1000-2000KG/H |

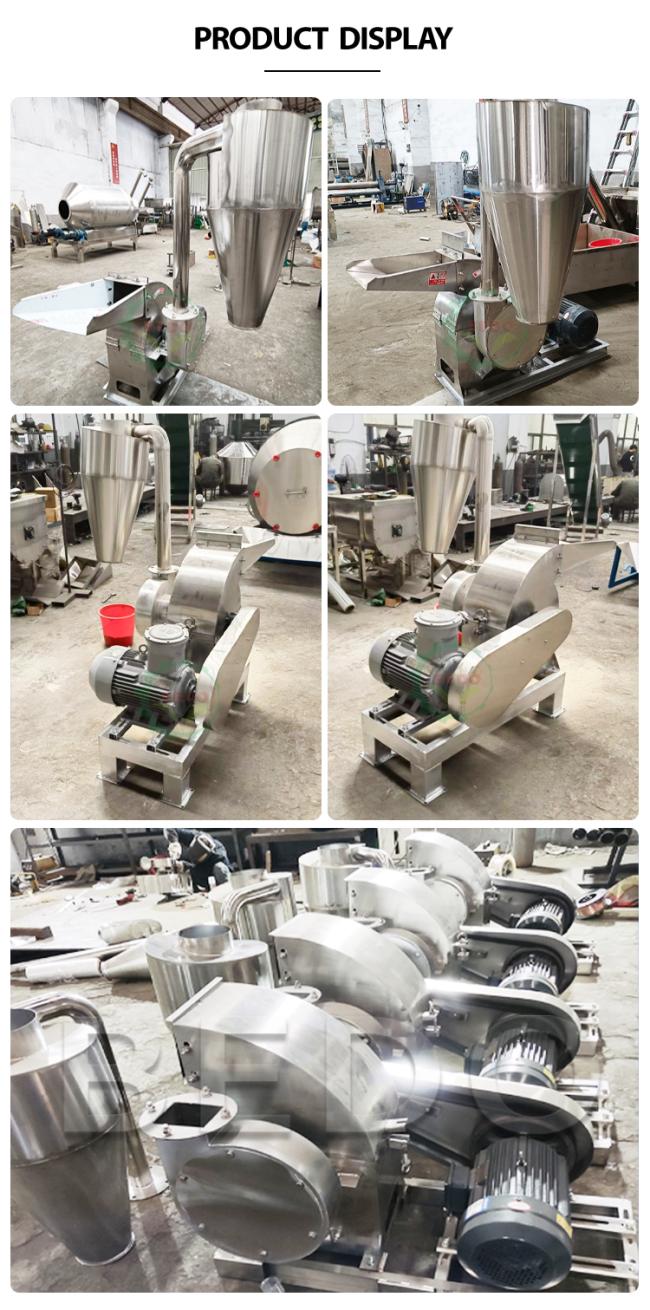

Detailed images
Raw materials
Final Production
Packing & Delivery
1. Packing:Standard wooden case.
2. Delivery time: Within 15 workdays after getting the down payment.
3. Payment: 50%TT payment in advance, 50%TT pay the balance before delivery.
4. Warranty: One year.
2. Delivery time: Within 15 workdays after getting the down payment.
3. Payment: 50%TT payment in advance, 50%TT pay the balance before delivery.
4. Warranty: One year.
