Brife introduction of wood chipper:
The drum wood chipper is a special device of producing wood chips. It is widely used in stock workshop section of industrial manufacture, for example, the flakeboard, fibre board, building board, straw power plant, etc.
Main features of wood chipper :
1. The machine main structure is made of thick high strength carbon steel, cutter and blades are
made of high strength wearable alloy steel.
2. High capacity, from 12-15ton per hour.
3. Power could be electrical or diesel, from mini size to big size, fixed or mobile type.
4. Laour force saving, only two persons could operate the machine independently.
5. The feed chute of this wood chipper have two types, horizontal (for long wood logs) and tilting (raw material less than 2 meters)
Specifications of wood chipper :
|
Model |
BD-BX215 |
BD-BX216 |
BD-BX218 |
BD-BX2113 |
|
Inlet size(H*W) (mm) |
170*430 |
240*560 |
300*680 |
400*700 |
|
Blades number (pcs) |
2 |
2 |
2 |
2 |
|
Knife roller speed (turn) |
590 |
590 |
590 |
420 |
|
Max. Diameter (mm) |
170 |
200 |
300 |
380 |
|
Woodchips size (mm) |
25-35 |
30-35 |
25-35 |
35-35 |
|
Capacity (T/h) |
3-5 |
5-8 |
12-15 |
25-30 |
|
Main motor power (kw) |
37 |
55 |
110 |
220 |
|
Feed roller motor power (kw) |
3+3 |
3+4 |
3+4 |
7.5+7.5 |
|
Oil pump motor power (kw) |
1.5*1 |
1.5*1 |
1.5*1 |
3*1 |
|
Weight (kg) |
3200 |
5030 |
7000 |
11840 |
|
Outline Dimension (mm) |
1540×1240×1420 |
2000×1900×1650 |
2670×2150×1900 |
3670*2517*2050 |
|
Conveyor motor power (kw) |
3 |
3 |
4 |
7.5 |

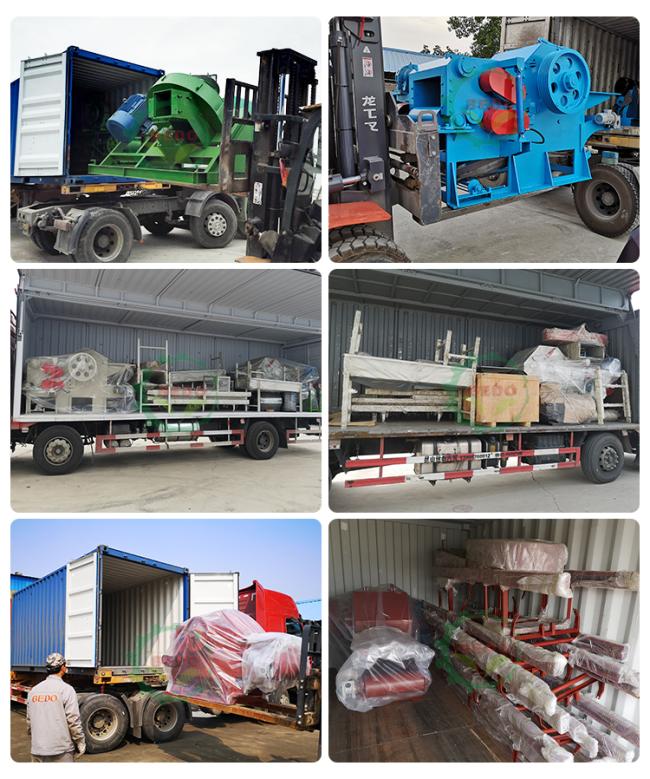

Packing and shipping of wood chipper :

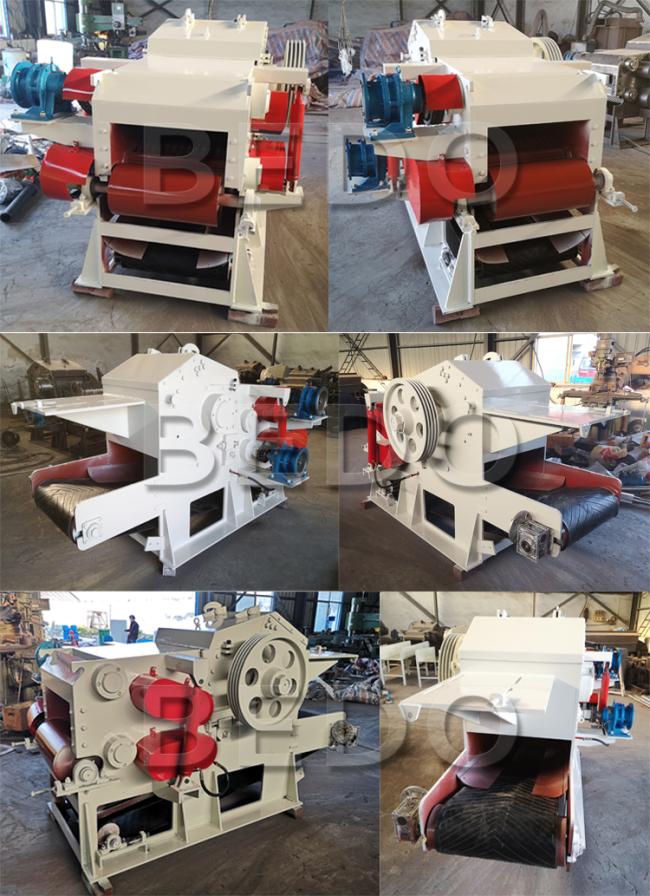

Our factory:
