China Energy Saving Sawdust Dryer Machine Air Flow Flash Drying Professional for sale

Energy Saving Sawdust Dryer Machine Air Flow Flash Drying Professional

Price Negotiable

Price: $2,450.00/sets 1-3 sets

MOQ: Negotiable

Delivery Time: Negotiable

Brand: BEDO

Product Description

Professional Air flow flash dryer /sawdust drying equipment /air flash dryer for sawdust

---1, Introduction of Air flow flash dryer

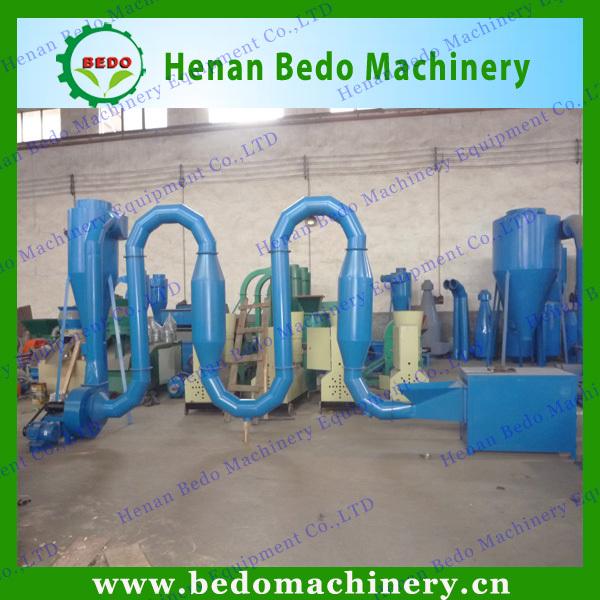

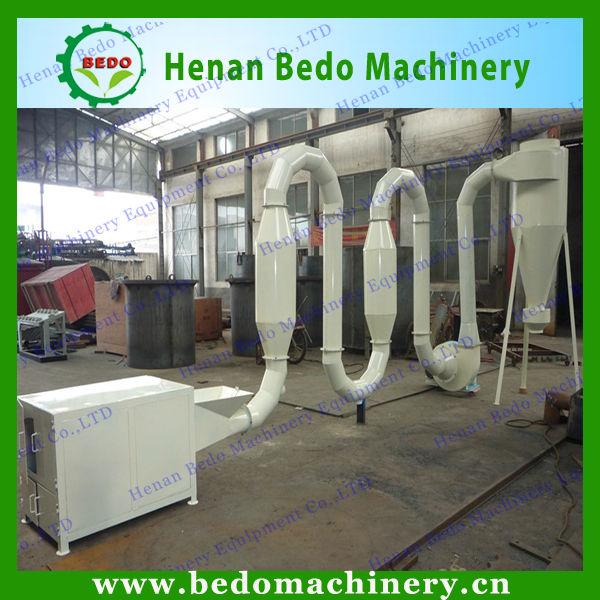

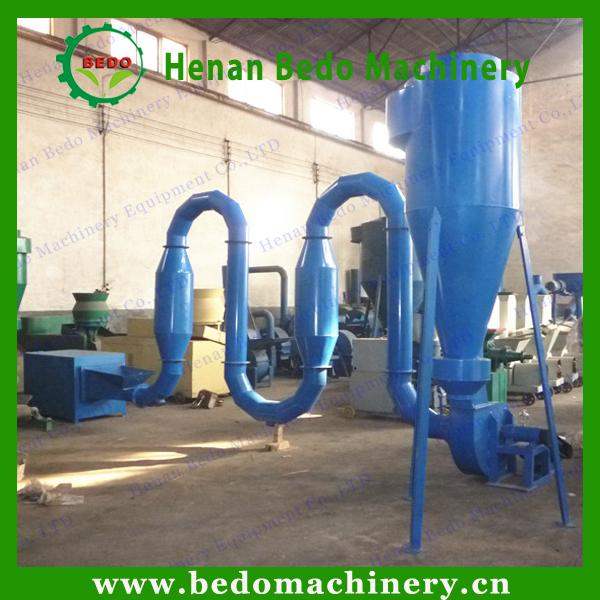

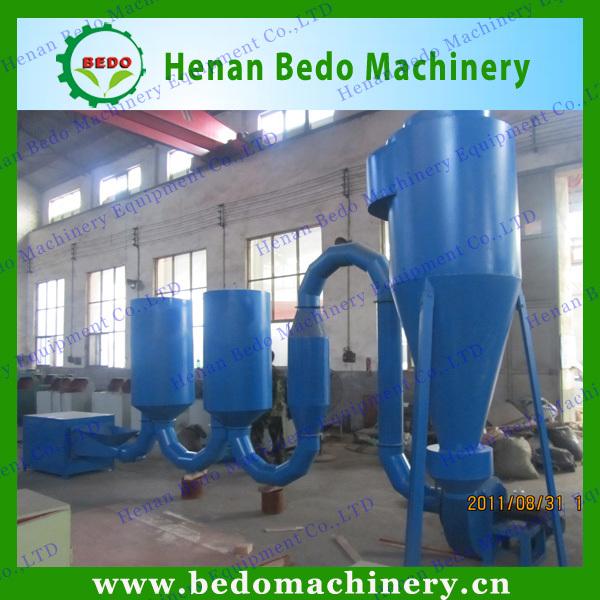

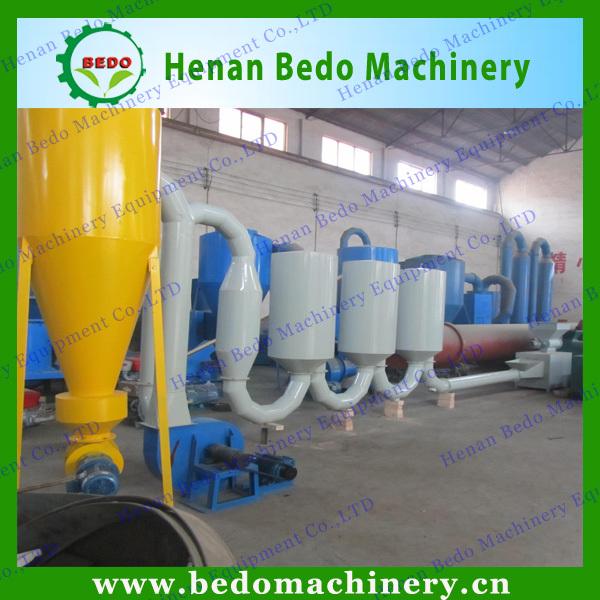

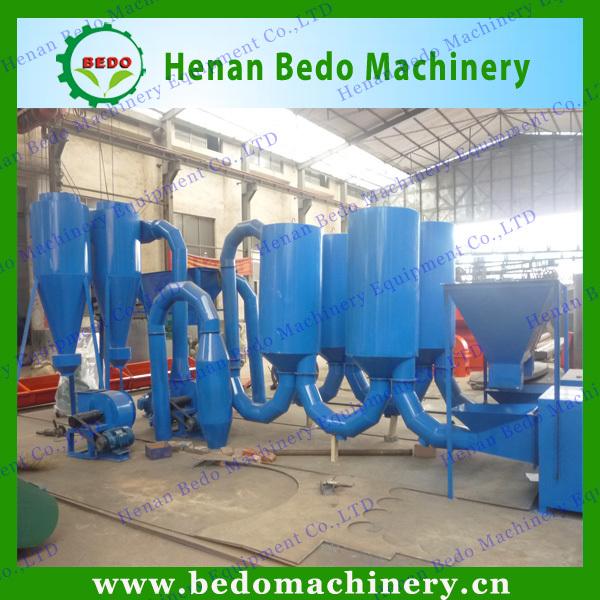

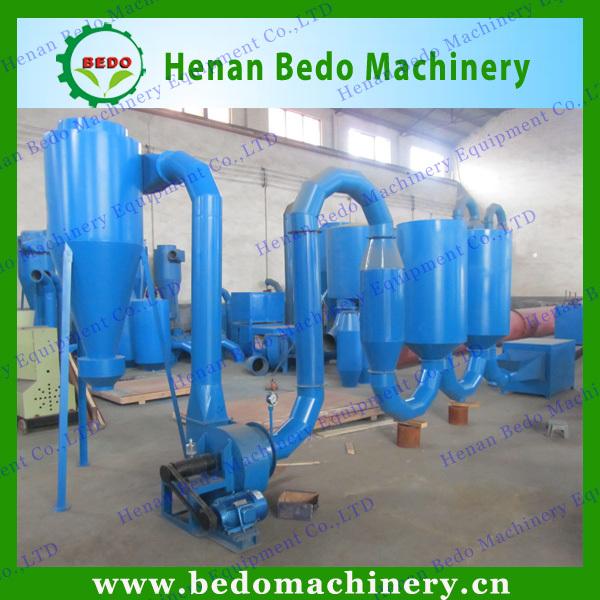

This dryer is suitable for drying materials of moisture 30~60%. The dryer is equipped with two fuel boilers, inlet, steel pipe, exhaust blower (fan), air lock and cyclone. Wet materials are put into the hopper. The fuel boiler generates hot air which mixes with wet materials and then is sucked into the pipes by the exhaust blower (fan) quickly. And then hot air is flowing and going though the curving pipes and buffer (drying chamber) of dryer, thus wet materials is finished to dry, and the dried materials are discharged from the outlet with air lock. This wood dryer reduces the moisture to 8~12% with the advantages of low cost consumption and high efficiency.

---2, Features of Air flow flash dryer

a. The dryer is suitable for drying materials of moisture 20-70%.
b. Wood dryer is suitable for drying materials like sawdust, rice hull, milling wheat straw, corn stalks and so on.
c. This wood dryer reduces the moisture to 8-12%
d. Clients can change the angle of dryers base on the production field.
e. It is only to control the moisture of raw material at a reasonable range that can make good result of biomass briquettes. Or the briquettes will be broken because of too loose or too dry.

---3, Technical parameters of Air flow flash dryer

Model	Power(kw)	Capacity(kg/h)	Weight(kg)	Size(m)	Moisture content
BD-QHJ4	4	300-400	1000	1.521.220.98+2.321.421.43	20-40% to 8-12%
BD-QHJ6	5.5	400-500	1500	1.451.220.98+2.451.901.15	20-40% to 8-12%
