220kw 20 - 25tph Forestry Wood Chipper Industrial Electric Large Wood Crusher
220kw 20-25tph Forestry Machinery Industrial Electric Large Wood Crusher Drum Wood Chipper

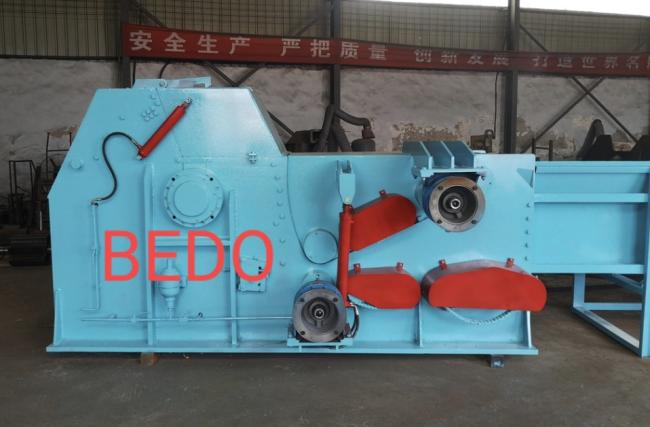

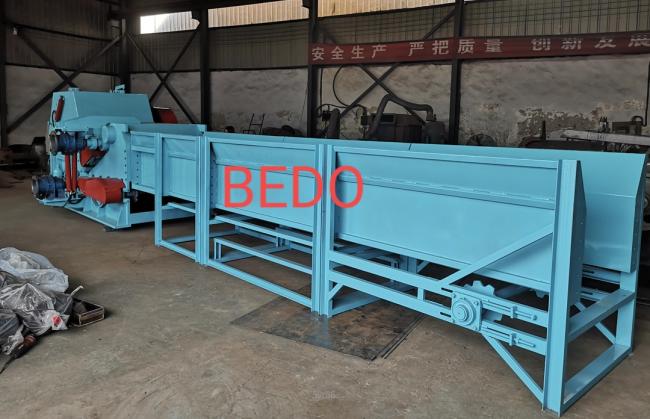

Brife introduction of wood chipper equipment :
This wood chipper machine equipped with 3-6 blades on the cutter, blades was casting by alloy with high strength.
With reasonable design and has a wide adaption of raw material, this machine is the top facility of processing wood log and panel with high efficiency
Main features of wood chipper equipment :
1. The machine main structure is made of thick high strength carbon steel, cutter and blades are
made of high strength wearable alloy steel.
2. High capacity, from 1-16 ton per hour
3. Power could be electrical or diesel, from mini size to big size, fixed or mobile type.
4. Laour force saving, only two person could operate the machine independently.
5. The feed chute of this wood chipper have two types, horizontal (for long wood logs) and tilting (raw material less than 2 meters)
Specification of wood chipper equipment :
|
Model |
BD-BX215 |
BD-BX216 |
BD-BX218 |
BD-BX2113 |
|
Inlet size(H*W) (mm) |
170*430 |
240*560 |
300*680 |
400*700 |
|
Blades number (pcs) |
2 |
2 |
2 |
2 |
|
Knife roller speed (turn) |
590 |
590 |
590 |
420 |
|
Max. Diameter (mm) |
170 |
200 |
300 |
380 |
|
Woodchips size (mm) |
25-35 |
30-35 |
25-35 |
35-35 |
|
Capacity (T/h) |
3-5 |
5-8 |
12-15 |
25-30 |
|
Main motor power (kw) |
37 |
55 |
110 |
220 |
|
Feed roller motor power (kw) |
3+3 |
3+4 |
3+4 |
7.5+7.5 |
|
Oil pump motor power (kw) |
1.5*1 |
1.5*1 |
1.5*1 |
3*1 |
|
Weight (kg) |
3200 |
5030 |
7000 |
11840 |
|
Outline Dimension (mm) |
1540×1240×1420 |
2000×1900×1650 |
2670×2150×1900 |
3670*2517*2050 |
|
Conveyor motor power (kw) |
3 |
3 |
4 |
7.5 |

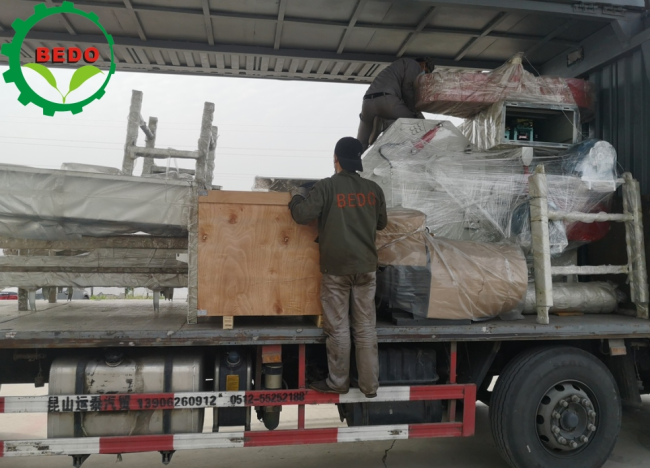

Packing and shipping of wood chipper equipment :
The final product of wood chipper equipment :
