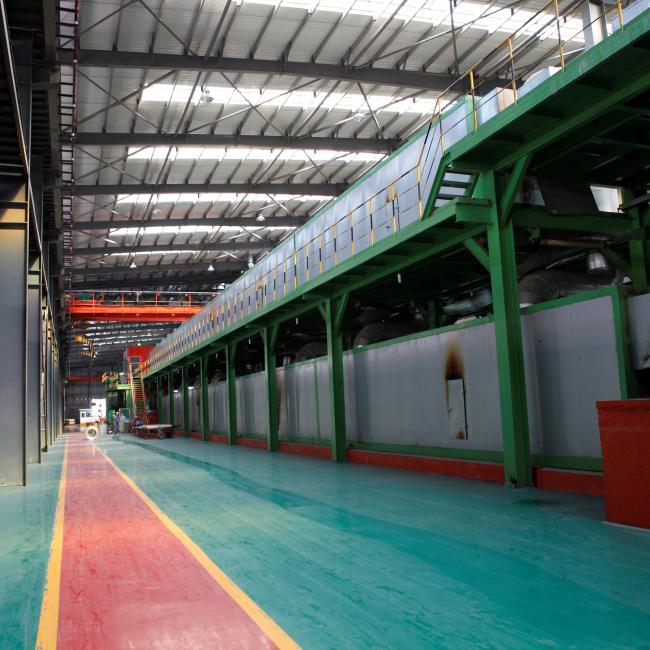

650mm Steel Color Coating Line Process Cgl Continuous Galvanizing Line
Steel Strip Color Coating Line / Material Galvanized sheet continuous type
Steel Strip Color Coating Line / Material Galvanized sheet
Color coating line roll coater machine is an integrated product of mechanical and electrical control. The main body of the equipment can be configured with vertical type or horizontal type according to process requirement, also can be configured with two rolls or three rolls coating heads. Equipped with a pressure sensor to control the coating layer effectively.
Application Scope of Coaters for Color Coating Line
MaterialMaterial ThicknessMaterial WidthLine SpeedGalvanized Sheet0.2-3.0mm500-1850mm≤210m/min
Material: Galvanized Sheet
Material Thickness: 0.2-3.0mm
Material Width: 500-1850mm
Line Speed: ≤210m/min
Structure Advantage Coaters for Color Coating Line
The main body of coater can be configured according to the process requirements to the vertical type or horizontal type, also can be configured according to the process requirements to two rollers coating or three rollers coating.
Prime Coat Top 5 to 20 Mic
Bottom 5 to 20 Mic
Part of the equipments
| No. | Description | Quantity(pc/set) |
| 1 | saddle | 2 |
| 2 | loading cart | 2 |
| 3 | pay-off reel | 2 |
| 4 | Uncoiling auxiliary support | 2 |
| 5 | uncoiling pinch roller 1# | 1 |
| 6 | uncoiling pinch roller 2# | 1 |
| 7 | Entry Guide board | 1 |
| 8 | Hydraulic transverse shear | 2 |
| 9 | Joint Pinch Roll | 1 |
