continuous pickling solution for stainless steel carbon steel 600000-750000 tons annually

Continuous pickling lines provide high quality descaling of

carbon or stainless strip with pinch roll etc

Acid pickling auxiliary system circulating pump, acid circulation tank overflow vent, rinse auxiliary system circulating pump, rinse wastewater tank overflow vent, desalting tank, cooling water tank overflow vent, steam condensate recovery system of pollution emission, production safety assistant system safety shower wastewater, acid mist purification system pipe condensate drain waste acid, waste water, such as waste water through the import drains, pipes, pickling, rinsing section In the pit, it is pumped into the waste water treatment station for treatment.

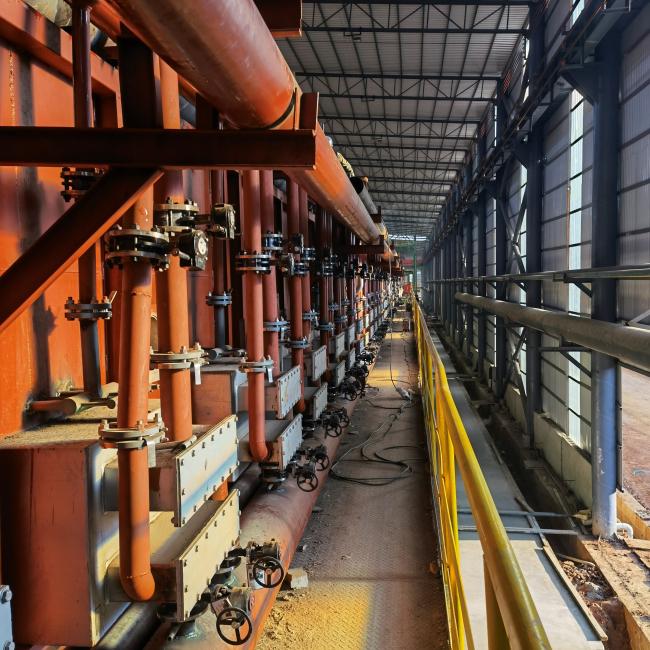

Continuous Acid Pickling Line

For continuous acid pickling line, the headand rear parts of two different coils shall be welded together,

both entry andexit of process sections are equipped with accumulators to guarantee acontinuous operation.

Generally when the annual capacity exceeds 700,000 tons,continuous picking line will be adopted.

Manually loading →entry skid →coil loading trolleyI# &II# →pay off reelI# &II#

→decoiling scraperI# &II# →5-roller pinch straightenerI# &II#

→transverse shearerI# &II# →vertical guide roller →welder → crescent shearer

→pinch roll →entry accumulator →scale breaker →tension bridle roll

→vertical guide roller →acid pickling trough →washing trough

→edge blowing device →vertical guide roller →hot air dryer

→tension bridle roll →exit accumulator →tension bridle roll

→transverse shearer →exit pinch roll →recoiler (EPC) →

coil unloading trolley → exit skid→manually unloading

Type Fluorine plastic horizontal centrifugal pump

Flow 15m³/h

Pump Head 40 m

Motor power 7.5KW 380V IP54 CLASS F

Material pump shell PPH, impeller PVDF

SIC dynamic and static ring double mechanical seal
