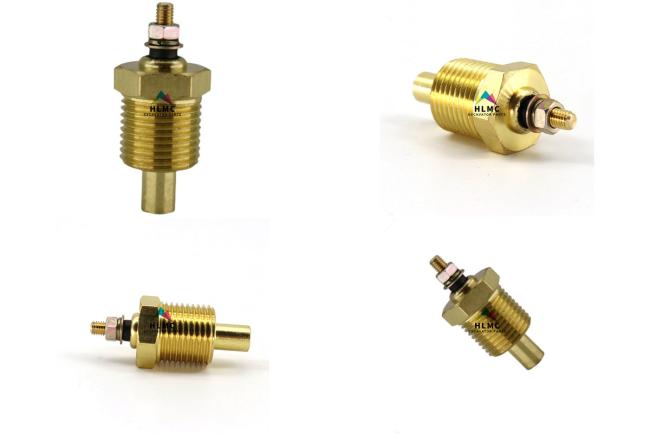

6N5926 Temperature Sensor For Engine 3304 Excavator 225 231D E240 E300
6N5926 Sensor Temperature Fits ENGINE 3304 EXCAVATOR 225 231D E240 E300
Product Description
| Appliion |
|
| OEM NO. | CA6N5926 6N-5926 6N5926 |
| MOQ: | 1PCS |
| Warranty | Within 12 Months |
| Type | Sensor |
| Stock Status | In Stock |
| Place of Origin | Guangzhou, China(Mainland) |
| Applicable industry | Machinery Repair Shops, Construction Works |
| Status | 100%NEW |
| Service system | Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support, Engineers Available To Service Machinery Overseas, Free Spare Parts |
Product advantages
1. Using high-quality electronic components, the induction accuracy is high.
2. The measurement range has high optical accuracy, and the accuracy can reach 0.1%FS
3. Has good mechanical processing, heat treatment performance is stable and reliable
4. It has strong compressive strength, little influence by temperature, long service life and stable performance
5. High pressure protection, instant pressure 150KG to prevent oil leakage
Specifiions for Part No. 6N-5926
Hex Size (in): 0.9
Voltage (Volts): 24
Overall length (in): 2
Male thread size: 1/2 -14 NPTF (transmitter), 18-32UNF 2A (terminal)

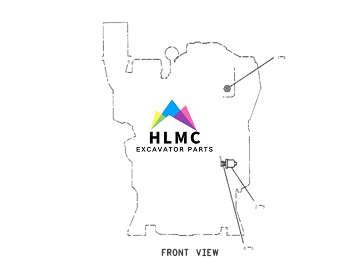

6N5926 Number on alog scheme: 1
Information:
3508B (S/N: 3DM1-UP; 4GM1-UP; 6PN1-UP; 2HW1-UP; 3DW1-UP)
3512B (S/N: 8EM1-UP; 8RM1-UP; 6WN1-UP; 1PW1-UP; 4AW1-UP)
3516B (S/N: 6HN1-UP; 7RN1-UP; 9AN1-UP; 1NW1-UP; 2FW1-UP)
Description of Change: During Direct Rack operation, the engine monitoring parameters are no longer activated at low idle. Instead, the monitoring parameters are now activated at engine start-up.Adaptable To: Refer to Table 1 for a list of the new part numbers and the former part numbers that are replaced.
Table 1
New Part Number Former Part Number
344-0308 316-5283
344-0309 316-5284
344-0310 316-5269
344-0311 316-5267
344-0312 316-5266
344-0313 316-5272
344-0314 316-5270
344-0315 316-5277
344-0316 316-5282
344-0317 316-5273
344-0318 316-5288
344-0319 316-5310
344-0320 316-5268
344-0321 316-5271
344-0322 316-5278
344-0323 316-5276
344-0324 316-5333
344-0325 316-5311
347-1251 290-2214
345-0830 314-2913
345-0831 287-6074
324-6638 311-2465
333-8429 303-5955
348-0205 228-5163
348-0206 242-5352
348-0207 231-5010
348-0208 247-5243
348-0209 335-3639
348-0210 335-3663
348-0211 335-3635 This change is effective in the serial numbers that are listed in Table 2.
Table 2
Effective Serial Numbers
S/N:2HW384-UP
S/N:3DM544-UP
S/N:3DW192-UP
S/N:4GM743-UP
S/N:6PN1168-UP
S/N:1PW456-UP
S/N:4AW1786-UP
S/N:6WN803-UP
S/N:8EM562-UP
S/N:8RM905-UP
S/N:1NW162-UP
S/N:2FW424-UP
S/N:6HN1720-UP
S/N:7RN12040-UP
S/N:9AN228-UP
9X1124
9X1124 SENDER AS-PRESSURE
3208, 3304, 3304B, 3306, 3306B, 3406, 3406B, 3406C, 3408, 3408C, 3408E, 3412, 3412C, 3412D, 3412E, 3508, 3512, 3516, 539, C-15, D398A, G3304, G342C, G399, PR-1000, PS-150B, PS-200B
5L7443
5L7443 SENDER
3192, 3208, 3304, 3304B, 3306, 3306B, 3406, 3406B, 3406C, 3408, 3408C, 3412, D320A, D342C, D348, G399
0302010
0302010 SENDER AS-PRESSURE
30/30, 3114, 3116, 3126, 3208, 3304, 3306, 3306B, 3406B, 3406C, 3408, 3412, 3412C, 3508, 3512, 3516, 508, 621B, 631D, 65, 651B, 75, 973, AP-1000, AP-1050, AP-800, CP-563, CS-531, CS-533, CS-583, D250B...
8N3844
8N3844 SENDER-TEMPERATURE
225, 231D, 235B, 235C, 235D, 3114, 3116, 3126, 3406, 517, 527, 561M, 578, 583R, 587R, 589, 613C, 613C II, 631D, 631E, 633E II, 637D, 637E, 657B, 768C, 769C, 771C, 772B, 773B, 775B, 776C, 777B, 784B, 7...
3E7259
3E7259 SENDER AS-TEMPERATURE
30/30, 611, 615C, 621F, 623E, 623F, 627F, 631E, 633E II, 637E, 651E, 657E, 834B, 836, D6E, D6G, D6G2 LGP, D6G2 XL, D7G, D7G2, DEUCE, PF-300C, PS-300B
8D1611
8D1611 SENDER
768B, 769, 769C, 772, 773, 773B, 777, 988B, 992C, D35HP, D400, D44B, D550B
0778581 SENDER
CB-614, RR-250, SS-250
0776784 SENDER-WATER TEMPERATURE
CB-614, RR-250, SS-250
0775980 SENDER-OIL PRESSURE
CB-614, RR-250, SS-250
0816809 SENDER-OIL TEMPERATURE
RR-250, SS-250
1742291 SENDER AS-FUEL LEVEL
527
1578838 SENDER AS-FUEL LEVEL
140H NA, D7G, D7G2
0302010
0302010 SENDER AS-PRESSURE
30/30, 3114, 3116, 3126, 3208, 3304, 3306, 3306B, 3406B, 3406C, 3408, 3412, 3412C, 3508, 3512, 3516, 508, 621B, 631D, 65, 651B, 75, 973, AP-1000, AP-1050, AP-800, CP-563, CS-531, CS-533, CS-583, D250B...
5L7443
5L7443 SENDER
3192, 3208, 3304, 3304B, 3306, 3306B, 3406, 3406B, 3406C, 3408, 3408C, 3412, D320A, D342C, D348, G399
9X1124
9X1124 SENDER AS-PRESSURE
3208, 3304, 3304B, 3306, 3306B, 3406, 3406B, 3406C, 3408, 3408C, 3408E, 3412, 3412C, 3412D, 3412E, 3508, 3512, 3516, 539, C-15, D398A, G3304, G342C, G399, PR-1000, PS-150B, PS-200B
9Y9115 SENDER GP
E300B
8S2956 SENDER GROUP
D8H, D9G
5S3294 SENDER GROUP
834
1138821 SENDER-OIL PRESSURE
45, 55
1138858 SENDER-FUEL LEVEL
45, 55
7N8532
7N8532 SENDER AS-TEMPERATURE
12H, 12H ES, 12H NA, 140H, 140H ES, 140H NA, 143H, 14H NA, 160H, 160H ES, 160H NA, 163H NA, 16H NA, 416, 416B, 416C, 426B, 426C, 428, 428B, 428C, 436, 436C, 438C, 515, 525, 525B, 535B, 545, 572R, 65, ...
4W9972
4W9972 SENDER AS-TEMPERATURE
120H, 120H ES, 120H NA, 135H, 135H NA, 3114, 3116, 3126, 3508, 3508B, 3512, 3512B, 3516, 3516B, 414E, 416, 416B, 416C, 416D, 416E, 416F, 420D, 420E, 420F, 422E, 422F, 424D, 426B, 426C, 428, 428B, 428C...
6T0454
6T0454 SENDER AS-FUEL LEVEL
416B, 426B, 436B, 438B, 446, 446B, 446D
3E7128 SENDER AS-LEVEL
416, 416B, 428B
