Neutral One Way Clutch Bearing Overrunning Sprag Motorcycle Starter FWD331808CRS
One Way Overrunning Sprag Clutch Bearing for Motorcycle Starter FWD331808CRS
We supply various one way clutch bearing. This overrunning one way clutch widely for beach motorbike.
One-way bearing is free to rotate in a direction, and locked in another direction of a bearing. One-way bearing is also called the overrunning clutch, just according to different industries, the effect is different. One-way bearing metal shell, contains a number of roller, needle or ball, and the rolling (den) shape so that it can only scroll in one direction.
Main purpose: textile machinery; printing machinery; automobile industry; appliances; detectors.

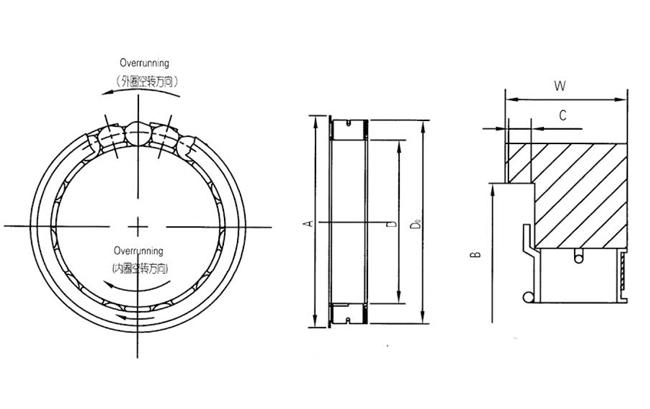

One Way Overrunning Sprag Clutch Bearing for Motorcycle Starter Specifications:
|
Clutch Type
|
Dimensions |
Torque
|
Weight
|
|||||
|
Inner race |
Outer race |
Wmin |
A | B | C | |||
|
D +0.008/ -0.005
|
D0 ±0.013
|
W
|
Tkn |
|||||
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [Kgf-m] | [g] | |
|
FWD331608CRS |
39.627
|
56.294
|
13.0
|
60 | 62 | 1.0 |
27
|
78
|
|
FWD331808CRS |
45.665
|
62.332
|
13.3
|
65 | 68 | 1.0 |
35
|
88
|
|
FWD332008CRS
|
51.710
|
68.377
|
13.3
|
71 | 74 | 1.0 |
45
|
98
|
|
FWD332211CRS
|
57.760
|
74.427
|
16.3
|
76 | 79 | 1.0 |
78
|
140
|
Note:
1) Opposite overrunning direction should be ordered separately.
