Copper Forced Air Cooling 4 Stroke Gasoline Engine 152FP

Price Negotiable

Price: Negotiable

MOQ: 1 Set

Delivery Time: 7-15 work days

Brand: HUAN NENG

Product Description

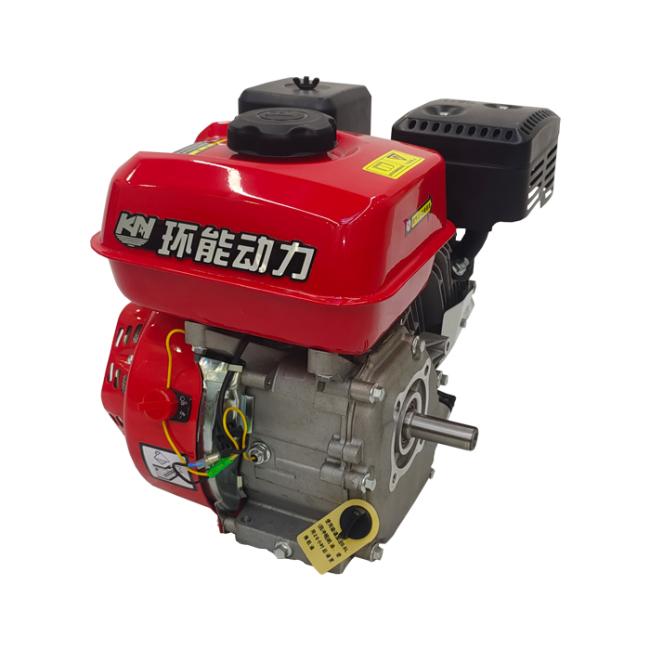

Single Cylinder Forced Air Cooling Gasoline Engine 152FP

Single Cylinder Forced Air Cooling Gasoline Engine 152FP

Features:

1. Powerful, stable, durable and reliable.

2. Easy and fast starting, smooth operation and low vibration.

3. Advanced design combustion chamber provide exceptional fuel efficiency and

consistent power.

Technical parameters:

Model	152F/P	154F/P	168FA/P	168FB/P	170F/P
Form	Single cylinder, four stroke, forced air cooling
Lgnition mode	Contactless transistor electronic ignition
Starting mode	Recovery manual start
Fuel consumption (g/kw.h)	≤450	≤420	≤395	≤395	≤374
Bore/stroke (mm)	52x46	54x38	68x45	68x45	70x45
Piston displacement (ml)	98	87	163	196	215
Maximum power/speed (kw/rpm)	1.15/3600	1.15/3600	3.2/3600	3.8/3600	4.0/3600
Maximum torgue (N.m/rpm)	2.5/2600	3.0/2600	8.8/2600	10.2/2600	12/2600
Net weight (kg)	8.8	10	18	18	18
Dimension[mm](LxWxH)	280x270x345	280x270x345	350x315x335	350x315x335	350x315x335

Model	173F/P	177F/P	182FA/P	188F/P	190F/P
Form	Single cylinder, four stroke, forced air cooling
Lgnition mode	Contactless transistor electronic ignition
Starting mode	Recovery manual start
Fuel consumption (g/kw.h)	≤374	≤374	≤374	≤374	≤374
Bore/stroke (mm)	52x46	54x38	68x45	68x45	70x45
Piston displacement (ml)	242	270	338	389	420
Maximum power/speed (kw/rpm)	4.2/3600	4.6/3600	6.1/3600	7.2/3600	8.1/3600
Maximum torgue (N.m/rpm)	13/2600	14/2600	19/2600	21/2600	23/2600
Net weight (kg)	25	25	31	31	32
Dimension[mm](LxWxH)	495x430x505	495x430x505	495x430x505	495x430x505	495x430x505
