5kW 3 Phase Single Phase Portable Gasoline Powered Generator
Single Cylinder TCL Electric Start Single Phase Gasoline Generator 5KW
3kw Single Cylinder Electric Start Gasoline Generator
Features:
1. Strong, stable, durable and reliable.
2. Easy and quick start, smooth operation and low vibration.
3. Advanced designed combustion chamber provides outstanding fuel efficiency and consistent power.
4. Heavy-duty frame, unique anti-vibration design and low operating temperature extend generator life.
Advantages:
1. Good help for outdoor construction, electrical engineering, etc.
2. Reliable quality, stable performance and durability.
3. Fully copper inductive motor, stable waveform, sufficient power, and strong load operation.
Fourth, increase power, sufficient power, strong power, fuel and energy saving, stable performance.
5. Fully intelligent protection system, with dual functions of oil shortage and overload protection.
6. Streamlined and atmospheric side panel design.
Technical parameters:
| Model No. | KN1200 | KN2500 | KN2800 | KN3000 | KN3500 | |
| Engine | Model | HN156FB | HN68FB | HN168FB | HN170F | HN170F |
| Type | Single cylinder, 4-stroke, air-cooled | |||||
| Bore x Stroke | 56x40mm | 70x55mm | 70x55mm | 70x55mm | 70x55mm | |
| Displacement | 98cm³ | 212cm³ | 212cm³ | 212cm³ | 212cm³ | |
| Max.output power | 3.5/3600 Hp/rpm | 7.0/3600 Hp/rpm | 7.0/3600 Hp/rpm | 7.0/3600 Hp/rpm | 7.0/3600 Hp/rpm | |
| Ignition system | TCL | |||||
| Starting system | Recoil/Electric | |||||
| Fuel tank capacity | 8 liters | 15 liters | 15 liters | 15 liters | 15 liters | |
| Continuous operating time | 11 hours | 10 hours | 10 hours | 10 hours | 10 hours | |
| Oil capacity | 0.35 liters | 0.6 liters | 0.6 liters | 0.6 liters | 0.6 liters | |
| Generator | Rated voltage | 110/220V | 110/220V | 110/220V | 110/220V | 110/220V |
| Rated frequency | 60/50Hz | 60/50Hz | 60/50Hz | 60/50Hz | 60/50Hz | |
| Rated output power | 1000W | 2000W | 2300W | 2500W | 2800W | |
| Max.output power | 1100W | 2200W | 2500W | 2800W | 3000W | |
| Packing | N.W | 30Kgs | 39Kgs | 41Kgs | 42Kgs | 44Kgs |
| G.W | 31Kgs | 40Kgs | 42Kgs | 43Kgs | 45Kgs | |
| Carton size | 50x39x43cm | 61x45x47cm | 61x45x47cm | 61x45x47cm | 61x45x47cm | |
| Container Loading | 20’ | 330pcs | 240pcs | 240pcs | 240pcs | 240pcs |
| 40’HQ | 852pcs | 490pcs | 490pcs | 490pcs | 490pcs | |

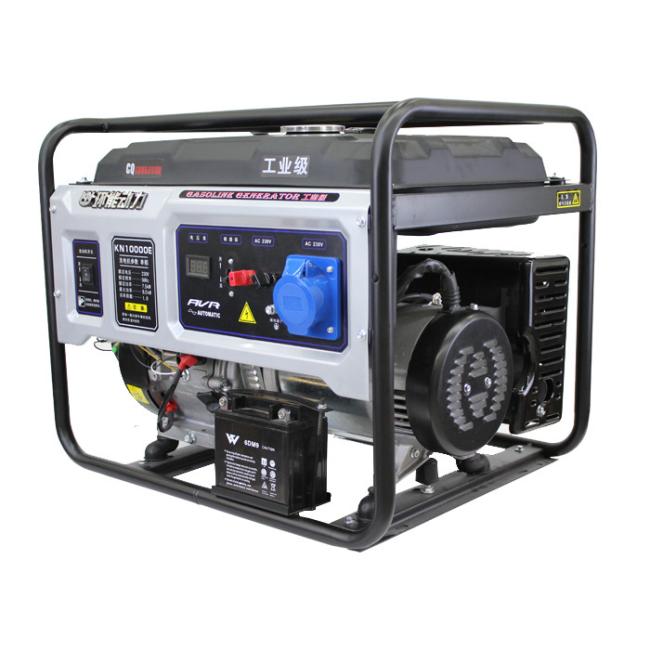

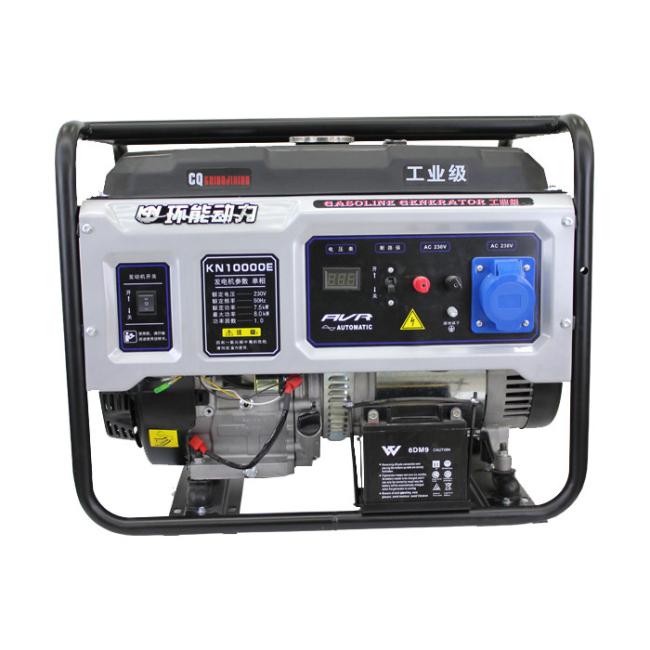

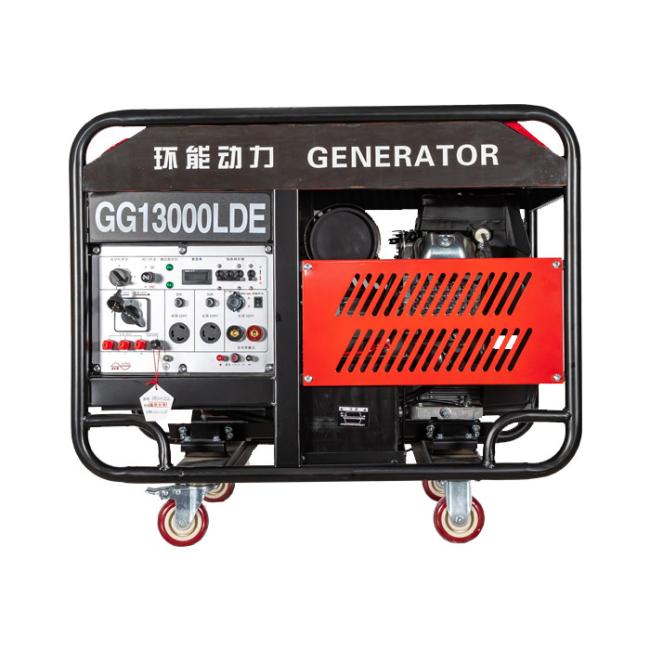

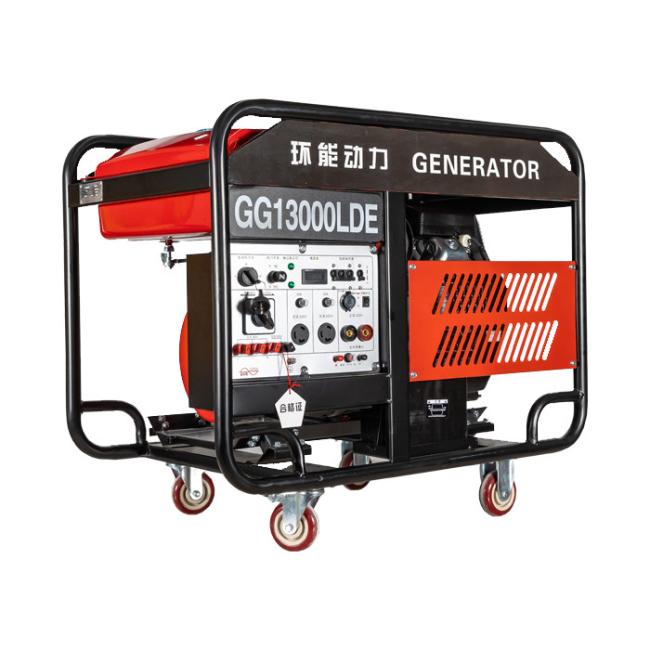

Product pictures:
