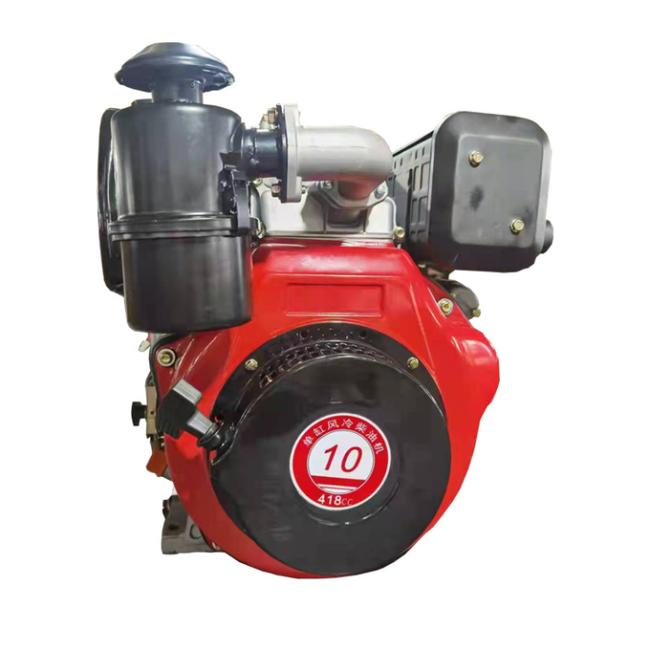

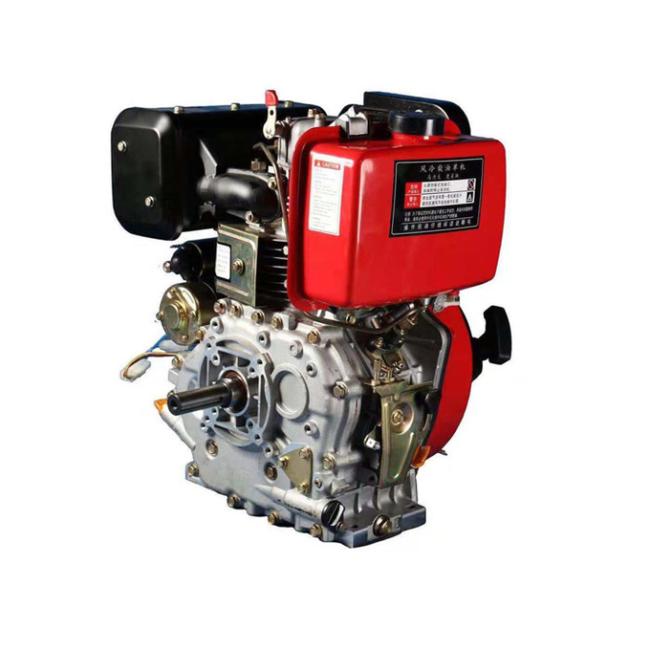

Electric Start 78x62 Four Stroke Air Cooled Diesel Engine 3KW
3KW single-cylinder four-stroke air-cooled vertical direct injection hand/electric start diesel engine
Air-Cooled Diesel Engine
Advantage,
1. Our engines have a number of patents, high product performance, and cooperate with domestic and foreign institutions of higher learning
2. High-end positioning, high-quality components, and technologically advanced raw materials from NSK and Weifu Group
3. The design is light, the result is compact, and the output power is larger under the same volume, which can meet various purposes
4. Process innovation, long service life, we have continuous process details innovation, high strength, small vibration, good running-in degree, making the engine run more smoothly.
5. Simple maintenance, low operating cost, high combustion efficiency, low fuel consumption, high torque and strong power
| 型号 Model | HN173FB | HN178F | HN186FA | HN188FA | HN192F | HN195F |
| 类型 type | 单紅,四沖程,风冷,立式' 直原式 | |||||
| 燃烧系统 Combustion system | 直喷 | |||||
| 缸径X行程 The cylinder diameter x Trip | 73x59 | 78x62 | 86x72 | 88x75 | 92x75 | 95x75 |
| 排量(L) Displacement | 0.247 | 0.296 | 0.418 | 0.45€ | 0.499 | 0.532 |
| 压缩比 Compression Ratio | 20:1 | 20:1 | 19:1 | 20:1 | 19:1 | 19:1 |
| 發定功率/转速(Kw/rpm ) Rated Power/speed | 3.2/3000,3.6/3600 | 3.7/3000.4.0/3600 | 5.8/3000,6.6/3600 | 6.6/3000.7.5/3600 | 7.5/3000,8.2/3600 | 8.5/3000,9.2/3600 |
| 最大功率/转速(Hp/rpm ) Max Power/Speed | 4.3/3000,4.8/3600 | 5.0/3000,5.5/3600 | 7.9/3000,9.0/3600 | 9.0/3000,10.2/3600 | 10.2/3000,11.2/3600 | 10.2/3000,11.2/3600 |
| 额定转速 Rated Speed | 3000/3600 | 3000/3600 | 3000/3600 | 3000/3600 | 3000/3600 | 3000/3600 |
| 启动方式 Start The Way | F:手启动 E:电启动 F: Manual start e: electric start | |||||
| 油箱容积(L) Tank Volume | 2.5 | 3.5 | 5.5 | 5.5 | 5.5 | 5.5 |
| 润滑油容员(L ) Lubricating Oil Capacity | 0.75 | 1.1 | 1.65 | 1.65 | 1.65 | 1.65 |
| 油耗(L/H) Fuel Consumption | w1.2 | W1.41 | W2.15 | w2 | w2 | w2 |
| 燃油牌号 Fuel Brand | 柴油:0# (§) , -10# (冬) Diesel: 0 x 10 (summer), - 10 x 10 (winter) | |||||
| 润滑油牌号 Lubncating Oil Brand | SAE10W30 (CD级以上) Sae10w30 (above CD level) | |||||
| 外型尺寸LXWXH ( mm ) Dimensions | 332x376x415 | 385x420x450 | 420x440x495 | 420x440x495 | 420x440x495 | 420x440x495 |
| 净車(kg) The Net Weight | 手启动:28电启动:32手启动:33电启动:38 Manual start: 28 Manual start: 33 Electric start: 32 Electric start: 38 | 手启动:47电启动:53手启动:48电启动:53 Manual start: 47 Manual start: 48 Electric start: 53 Electric start: 53 | 手启动:50电启动:55 Manual start: 50 Electric start: 55 | 手启动:50电启动:55 Manual start: 50 Electric start: 55 | ||
