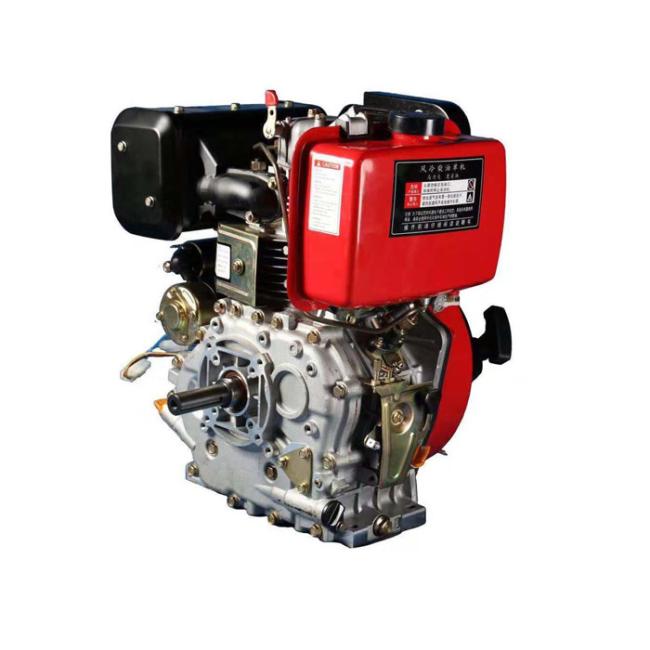

China W420 Four Stroke One Cylinder Diesel Engine 4.0kw/3600rpm for sale

W420 Four Stroke One Cylinder Diesel Engine 4.0kw/3600rpm

Price Negotiable

Price: Negotiable

MOQ: 1 Set

Delivery Time: 7-15 work days

Brand: HUAN NENG

Product Description

HN190F Single-Cylinder Four Stroke Diesel Engine Quiet No Disturbing

Air-Cooled Diesel Engine

Advantage,
1. Lightweight design, compact effect, high output power in the same volume, can meet a variety of applications
2. Process innovation, long service life, we continue to innovate in process details, high strength, low vibration, good wear resistance, make the engine run more smoothly.

The Details of this diesel engine


型号 Model	152F/P	154F/P	168FA/P	168FB/P	170F/P	173F/P	177F/P	182FA/P	188F/P	190F/P
形式 Form	单缶I,四冲程,强制风冷 Single cylinder, four stroke, forced air cooling
点火方式 Lgnilion mode	无fti点晶体管电子点火 Contactless transistor electronic ignition
起动方式 Starting mode	回屋式手拉起动 Recovery manual start
油耗(g/kw-h) Fuel consumption (g/kW-h)	w450	W420	<395	w395	w374	w374	W374	W374	W374	w374
缸径/行程(mm ) Bore / stroke (mm)	52x46	54x38	68x45	68x45	70x45	73x58	77x58	82x64	88x64	90x66
活塞排at (ml) Piston displacement (ML)	98	87	163	196	215	242	270	338	389	420
最大功率/5专速 (Kw/rpm) Maxirmim pov/er/speed	1.15/3600	1.15/3600	3.2/3600	3.8/3600	4.0/3600	4.2/3600	4.6/3600	6.1/3600	7.2/3600	8.1/3600
最大扭矩 (N-m/rpm) 岬漸"	2.5/2600	3.0/2600	8.8/2600	10.2/2600	12/2600	13/2600	14/2600	19/2500	21/2500	23/2500
净重(kg) Net weight (kg)	8.8	10	18	18	18	25	25	31	31	32
外形尺寸[mm] Boun^r^in^nsion [mm](L xWx H)	280x270x345	280x270x345	350x315x335	350x315x335	350x315x335	495x430x505	495x430x505	495x430x505	495x430x505	495x430x505
