Low Pressure Electric Plastic Water Solenoid Valve 220 Volt
Price:
$4.50/Pieces 1-499 Pieces
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
Meishuo
Product Description
Specification

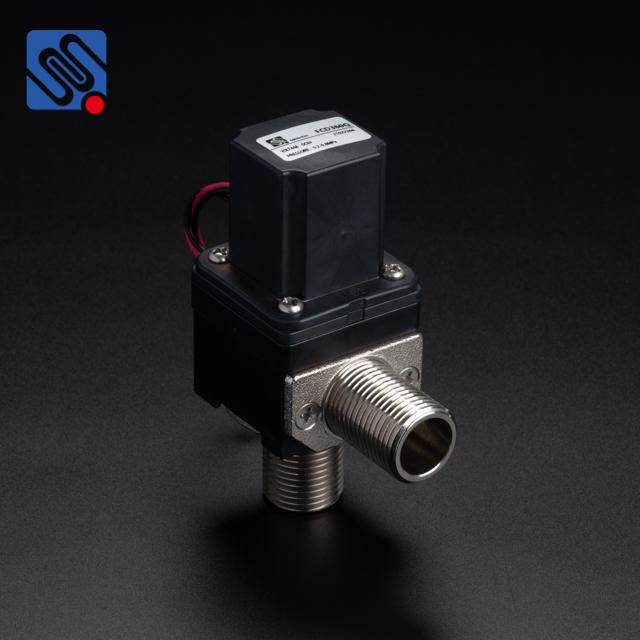

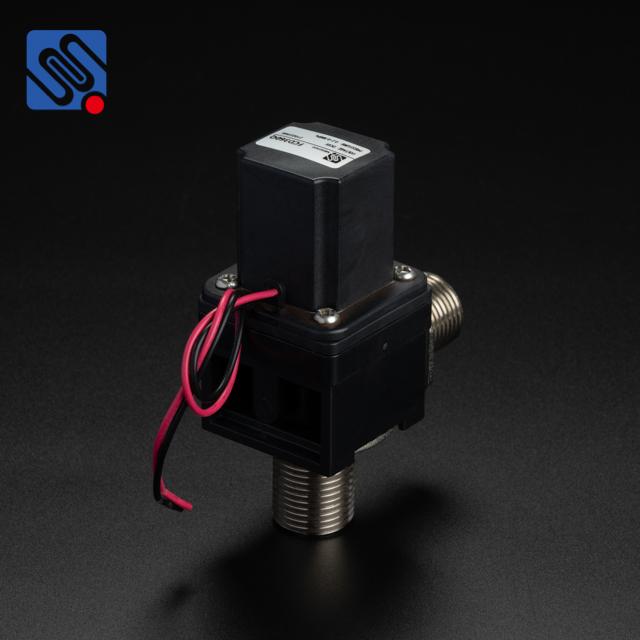

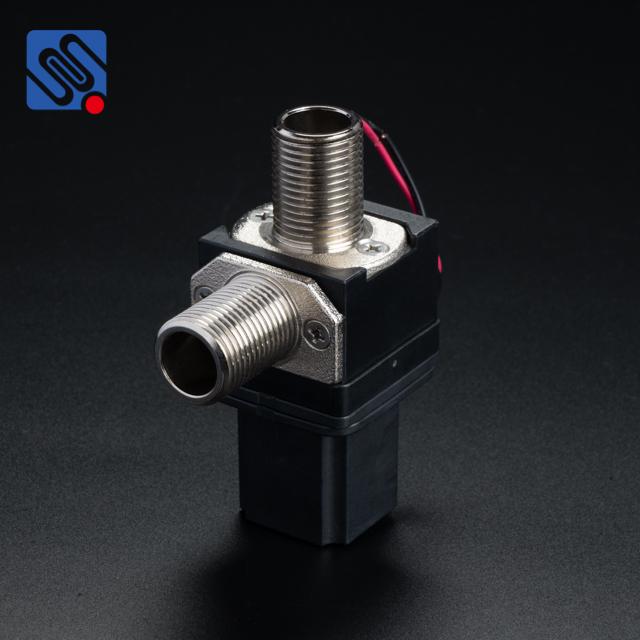

Meishuo FCD360Q low pressure electric plastic solenoid valve for water purifier 220 volt
|
Detailed Information
|
|
|
|
Rated Voltage
|
DC 6V 12V 24V 26V
|
|
|
Pressure range
|
0.02~0.8MPa
|
|
|
Operate Life
|
>100000 OPS
|
|
|
Type
|
Induction faucet solenoid valve
|
|
|
Inlet
|
G1/2 external thread
|
|
|
Outlet
|
G1/2 external thread
|
|
|
Hydraulic Pressure
|
0.3MPa
|
|
|
Flow Rate
|
>3L/min
|
|
* Model: FCD360Q
* Type:Induction faucet solenoid valve
* Rated Voltage: DC 6V 12V 24V 36V
* Pressure Range: 0.02~0.8MPa
* Operating Life: >100000 OPS

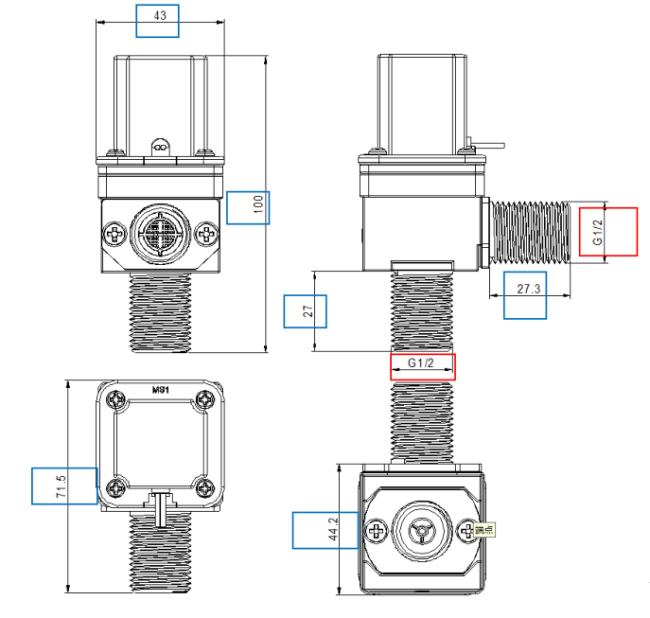

* Inlet and Outlet size: G1/2 external thread
* Rated Voltage: DC 6V 12V 24V 36V
* Pressure Range: 0.02~0.8MPa
* Operating Life: >100000 OPS
* Inlet and Outlet size: G1/2 external thread
Installation Process

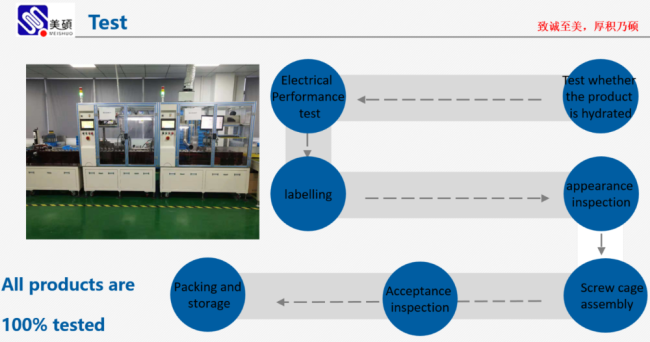

Different types of testing equipment
Water valve must go through be 100% tested
Applications
Hot Selling Items
Type1:

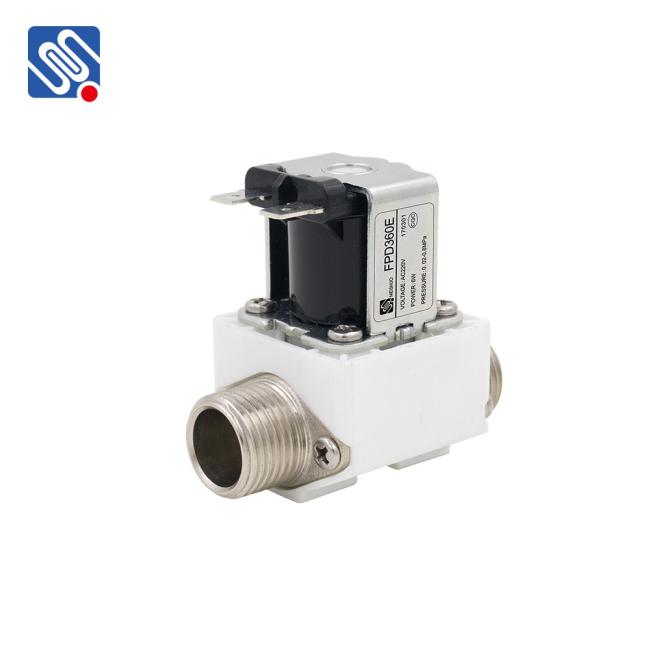

Name: FPD360E Plastic Water Valve
Rated Voltage: DC12V 24V 36V AC110VAC
220VAC 50/60H
Pressure Range: 0.02~0.8MPa
Operate Life: >100000 OPS
Inlet : G1/2" external Thread
Outlet: G1/2" external Thread
Hydraulic Pressure: 0.3MPa
Flow rate: >5L/min
Type2:

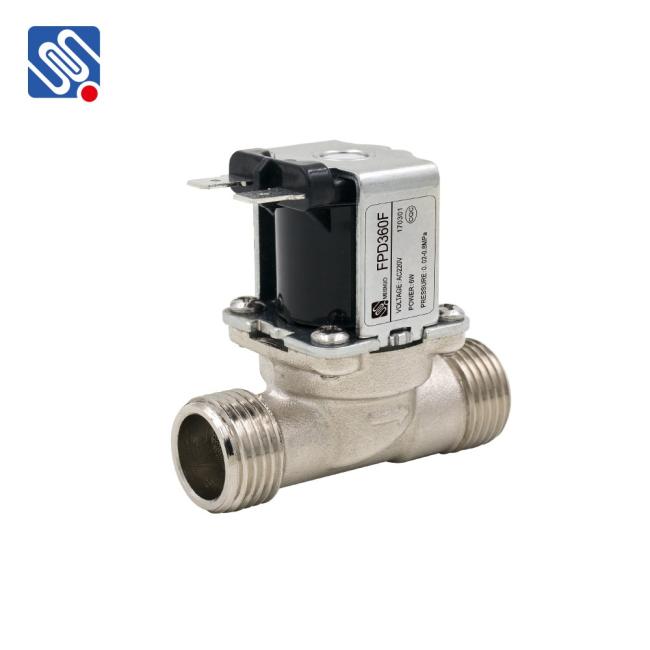

Name: FPD360F Plastic Inlet Solenoid Valve
Rated Voltage: DC12V 24V 36V AC110V 220V 50/60HZ
Pressure Range: 0.02~0.8MPa
Operate Life: >100000 OPS
Inlet: G1/2" External Thread
Outlet : G1/2" external Thread
Hydraulic Pressure:0.3MPa
Flow Rate: >5L/min
Type3:

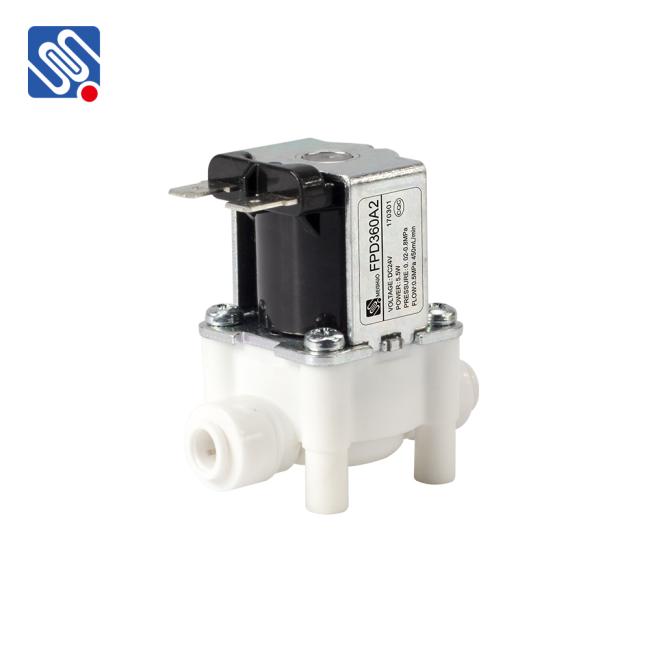

Name: FPD360A Plastic Inlet Solenoid Valve
Rated Voltage: DC12V 24V 36V AC110V 220V 50/60HZ
Pressure Range: 0.02~0.8MPa
Operate Life: >100000 OPS
Inlet: 1/4" Quick Connect fitting
Outlet : 1/4" Quick Connect fitting
Hydraulic Pressure:0.3MPa
Flow Rate: >3L/min
