Meishuo FPD360F40 Normally Closed Micro Magnetic Solenoid Valve 12 V for Water
Product Description
|
Detailed Information
|
|
|
|
Rated Voltage
|
DC12V 24V 36V AC
110V 220V 50/60HZ
|
|
|
Pressure range
|
0.02~0.8MPa
|
|
|
Operate Life
|
>100000 OPS
|
|
|
Spacing
|
25mm*25mm
|
|
|
Inlet
|
13.7mm pagoda | |
|
Outlet
|
13.7mm pagoda
|
|
|
Hydraulic Pressure
|
0.003MPa
|
|
|
Flow Rate
|
>1.2L/min
|
|

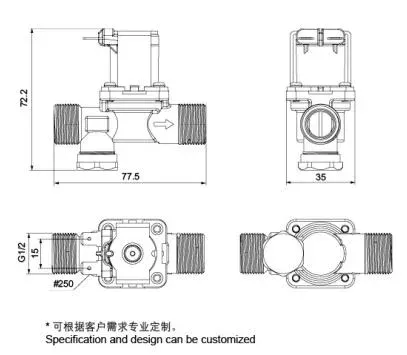

Dimensions:
Type1:
Name: FPD360E Plastic Water Valve
Rated Voltage: DC12V 24V 36V AC110VAC 220VAC 50/60H
Pressure Range: 0.02~0.8MPa
Operate Life: >100000 OPS
Inlet : G1/2" external Thread
Outlet: G1/2" external Thread
Hydraulic Pressure: 0.3MPa
Flow rate: >5L/min
Type2:

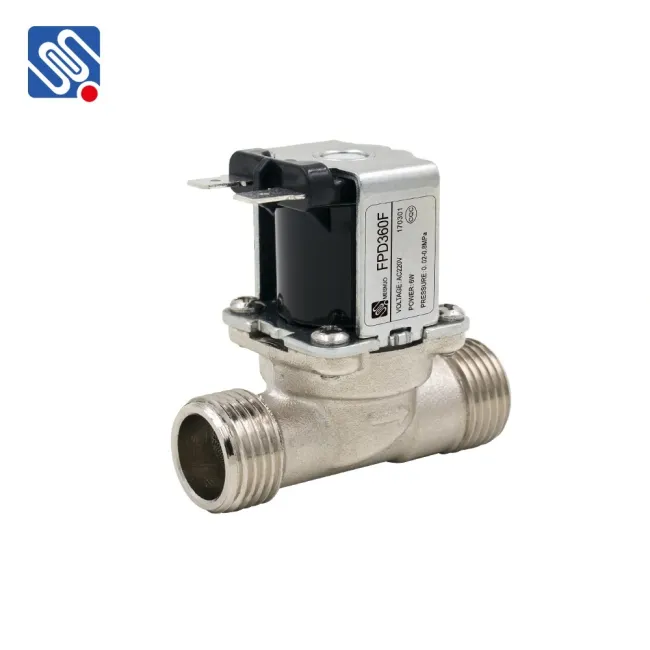

Name: FPD360F Plastic Inlet Solenoid Valve
Rated Voltage: DC12V 24V 36V AC110V 220V 50/60HZ
Pressure Range: 0.02~0.8MPa
Operate Life: >100000 OPS
Inlet: G1/2" External Thread
Outlet : G1/2" external Thread
Hydraulic Pressure:0.3MPa
Flow Rate: >5L/min
Type3:
Name: FPD360A Plastic Inlet Solenoid Valve
Rated Voltage: DC12V 24V 36V AC110V 220V 50/60HZ
Pressure Range: 0.02~0.8MPa
Operate Life: >100000 OPS
Inlet: 1/4" Quick connect fitting
Outlet : 1/4" Quick connect fitting
Hydraulic Pressure:0.3MPa
Flow Rate: >3L/min
FAQ
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-9 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for Water valve order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for Water Valve?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on water valve product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
