OEM High Power CW Laser Source 2000W Fiber Laser Source
Product Introductions
2000W single mode fiber laser is a product of DK’s key advantage. This product employs the framework of single resonant cavity, obtaining beam quality much better than same-power products employing other frameworks, which is one of a kind in high brightness application. It is widely used in different kinds of laser processing. Test result shows that, sheet cutting with this laser is dramatically higher than 3kW multi-mode fiber laser in speed, and smooth edges can be attained in plate cutting. The modulation frequency of the laser can be 20 kHz at maximum, then high speed drilling can be implemented; and the WPE is higher than 40%, which is at the top level in the industry.
Product Feature
♦High beam quality M2<1.2
♦Good cutting performance
♦Processing fiber can be customized in length more than 20 meters
♦WPE>40%
Product specification
| Optical Parameters | DK-YSM 2000 | |
| Operation Mode | CW/Modulation | |
| Polarization State | Random | |
| Beam Quality | M2 | <1.3@25µm |
| BPP(mm·mrad) | ≤0.45@25µm | |
| Output Power | 2000W | |
| Output Fiber Diameter | 25µm(20-100µm Customizable) | |
| Max. Modulation Frequency | 20kHz | |
| Rise/Fall Time | <15µs | |
| Power Range | 10%~100% | |
| Output Power Instability | ≤1.5% | |
| Center Wavelength | 1080±10nm | |
| 3dB Spectral Width | <4nm | |
| Indicated Light Wavelength | 635nm | |
| Indicated Light Power | >0.3mW | |
| Electronic Control Parameters | DK-YSM 2000 | |
| Operating Voltage | 380V | |
| Operating Frequency | 50Hz | |
| Laser Power Consumption | <6kW | |
| Other Parameters | DK-YSM 2000 | |
| Output Fiber Length | 15m(Customizable) | |
| Cooling | Water Cooling | |
| Dimensions | 760mm×455mm×170mm | |
| Weight | 53kg | |
| Operating Temperature | 10℃~40℃ | |
| Storage Temperature | -15℃~60℃ | |
| Relative Humidity | 20%-80% | |
Product Samples

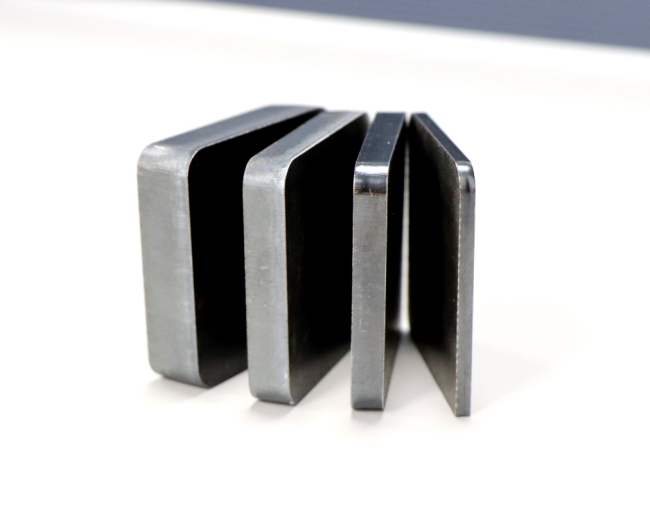

14mm/10mm/8mm/4mm smooth edge cutting of carbon steel(CS)

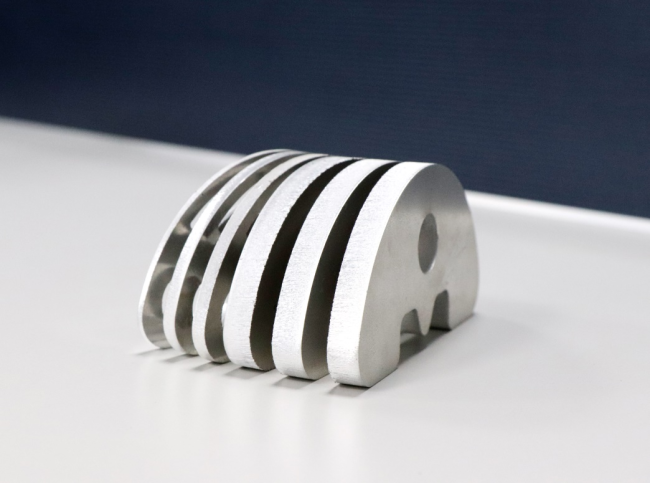

14mm/12mm/10mm cutting of aluminum

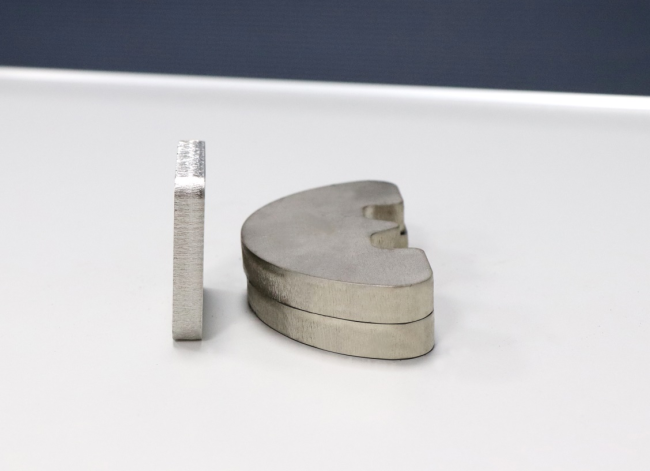

14mm/10mm cutting of stainless steel(SS)
