CWFL-1500 Laser Machine Parts Process Cooling Chiller for 1500W Fiber Laser Cutter
Product introductions
Process cooling chiller CWFL-1500 is made specifically for cooling 1.5KW fiber laser cutter and features dual circuit design. Each of the cooling circuit is independently controlled and has its own purpose - one circuit cools the fiber laser and the other cools the optics. The disassembly of side dust-proof filter for the periodic cleaning operations is easy with fastening system interlocking. Fiber laser chiller CWFL-1500 comes with air cooled finned condenser, fixed-speed compressor and highly reliable evaporator to ensure optimal cooling performance. Providing active cooling featuring ±0.5℃ stability, this industrial chiller can keep your fiber laser cutter at very precise temperature control 24/7.
Product features
♦Dual cooling circuit
♦Active cooling
♦Temperature stability: ±0.5°C
♦Temperature control range: 5°C ~35°C
♦Refrigerant: R-410a
♦User-friendly controller interface
♦Integrated alarm functions
♦Back mounted fill port and visual water level
♦Optimized for high performance at low temperatures
♦Ready for immediate use
Product specification
| Model | CWFL-1500AN | CWFL-1500BN |
| Voltage | AC 1P 220-240V | AC 1P 220-240V |
| Frequency | 50Hz | 60Hz |
| Current | 3.4~16.9A | 3.9~15.1A |
| Machine power | 2.78kW | 2.76kW |
| Electric assisted power | 400W+ 600W | |
| Precision | ±0.5℃ | |
| Reducer | Capillary | |
| Pump power | 0.37kW | 0.75kW |
| Tank capacity | 14L | |
| Inlet and outlet | Rp1/2"+Rp1/2" | |
| Lift | 36M | 53M |
| Rated flow | 2 L/min + > 15 L/min | |
| N.W. | 70Kgs | 71Kgs |
| G.W. | 82Kgs | 81Kgs |
| Dimension | 70 X 47 X 89cm (L X W X H) | |
| Package dimension | 74 X 61 X 103cm (L X W X H) | |
The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.
Product Details

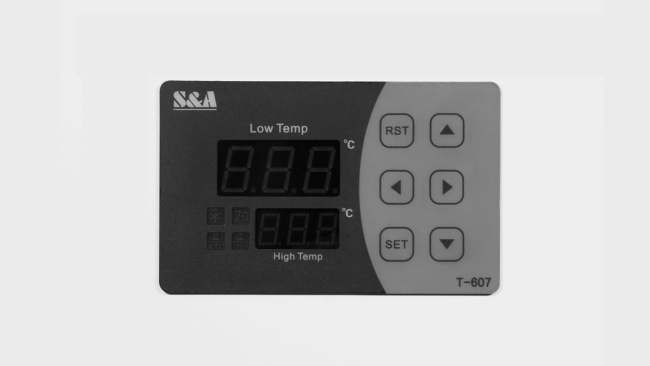

Dual temperature control
The intelligent control panel offers two independent temperature control systems. One is for controlling the temperature of the fiber laser and the other is for controlling the temperature of the optics.

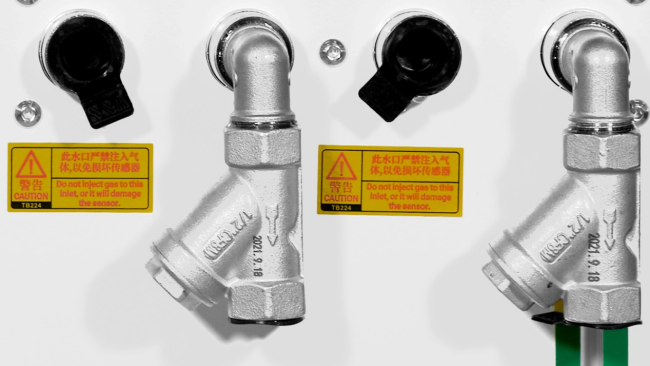

Dual water inlet and water outlet
Water inlets and water outlets are made from stainless steel to prevent potential corrosion or water leakage.

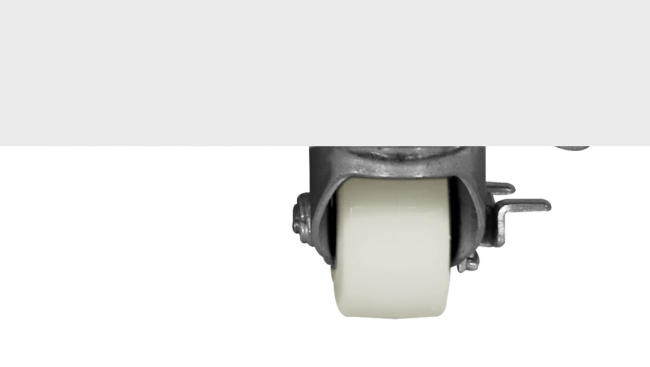

Caster wheels for easy mobility
Four caster wheels offer easy mobility and unmatched flexibility.

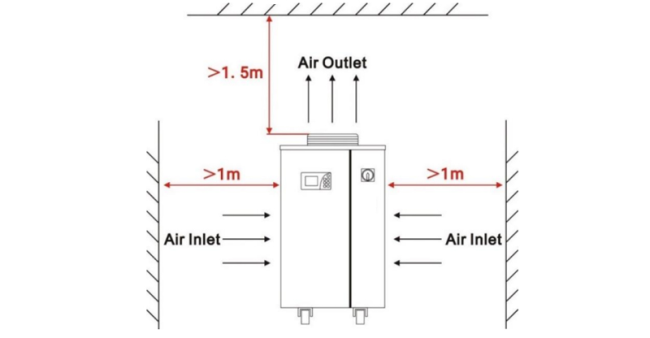

Ventilation Distance

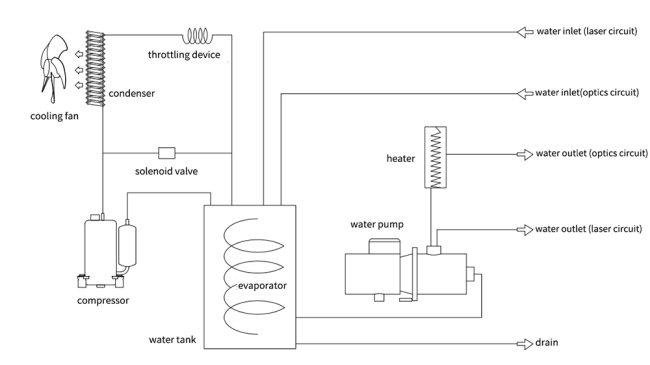

Product Working Principle
