CW Continuous Wave Fiber Laser Source 4000W Single Mode
Product introductions
The product is launched for starters of thick plate applications with specialized perfections. It outputs with 50-μm core fiber, attributed to which is the highest brightness among similar products. And it combines with three 1500W single mode modules, for that the real output power can be 4500W. The margin design on power gives it better processing capacity than ordinary 4kW products. The product is excellent on stability, and is able to operate long time in all kinds of complicated industrial conditions, with low output fluctuations.
Product features
♦Ultra-high stability
♦High WPE
♦Super processing capacity
Product specification
| Optical Parameters | DK-YMM 4000 | |
| Operation Mode | CW/Modulation | |
| Polarization State | Random | |
| Beam Quality | M2 | <10@100µm |
| BPP(mm·mrad) | ≤3.4@100µm | |
| Output Power | 4000W | |
| Output Fiber Diameter | 100µm | |
| Max. Modulation Frequency | 5kHz | |
| Rise/Fall Time | <20µs | |
| Power Range | 10%~100% | |
| Output Power Instability | ≤1.5% | |
| Center Wavelength | 1080±10nm | |
| 3dB Spectral Width | <6nm | |
| Indicated Light Wavelength | 635nm | |
| Indicated Light Power | >0.3mW | |
| Electronic Control Parameters | DK-YMM 4000 | |
| Operating Voltage | 380V | |
| Operating Frequency | 50Hz | |
| Laser Power Consumption | <20kW | |
| Other Parameters | DK-YMM 4000 | |
| Output Fiber Length | 20m | |
| Cooling | Water Cooling | |
| Dimensions | 1180mm×800mm×1170mm | |
| Weight | 360kg | |
| Operating Temperature | 10℃~40℃ | |
| Storage Temperature | -15℃~60℃ | |
| Relative Humidity | 20%-80% | |
Product Samples

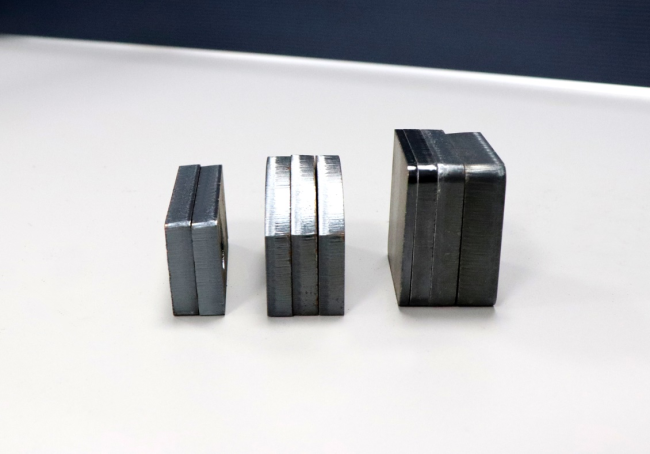

14MM/12MM/6MM smooth edge cutting of carbon steel

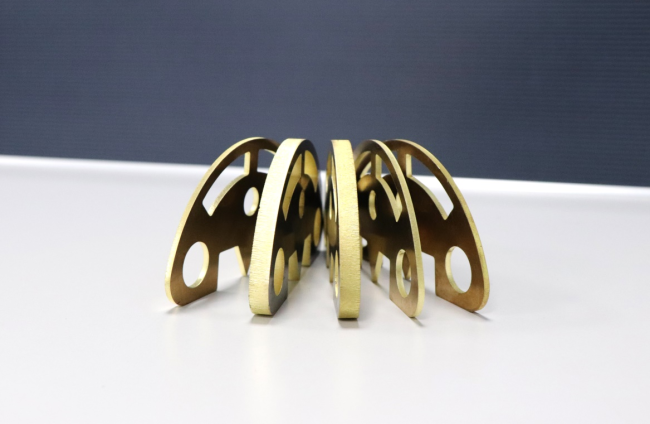

10MM/8MM/2MM cutting of bass

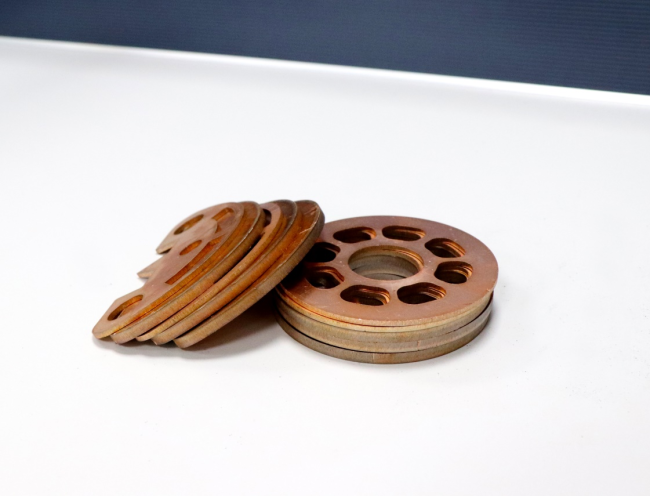

10MM/6MM/2MM cutting of red copper

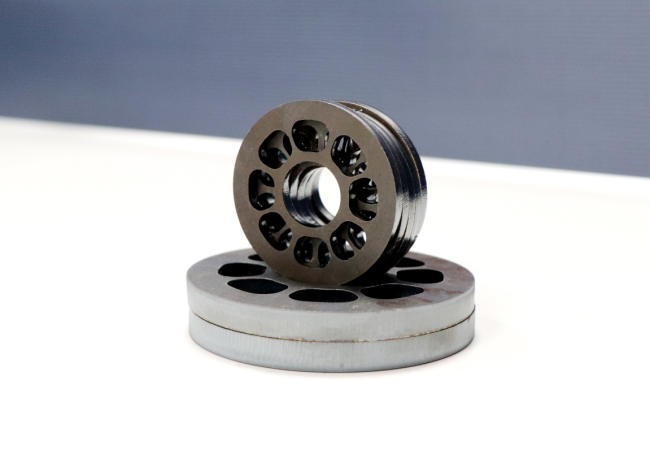

Cutting of stainless steel and carbon steel
