4000N Electric Linear Actuators 12 24V DC Direct Cut Hall Sensors Recliners Or Lift Chairs
Price:
29-299 USD/PCS
MOQ:
negotiable
Delivery Time:
14 Days
Brand:
Linsheng Auto II MaxM
Product Description
4000N 12/24V DC Direct Cut Hall Sensors Recliners Or Lift Chairs Linear Actuator
The LS-PAT-25 electric linear actuator is designed for furniture applications such as recliners or lift chairs. This linear actuator is designed to function as a direct cut system, eliminating the need for a control box, offering a straightforward and cost effective alternative to complex electric actuation systems.
Main Specification Of Electric Linear Actuator
| Linear Actuator | LS-PAT-25 |
| Voltage of motor | 12/24V DC; 24V DC (PTC) |
| Maximum load | 4,000N (push); 2,000N (pull) |
| Maximum speed at full load |
6.1mm/s |
| Retracted length | ≥ Stroke + 120mm |
| Options | Hall sensors |
|
Operational temperature range |
5℃-45℃ |
Applications: Designed for furniture applications such as recliners or lift chairs.

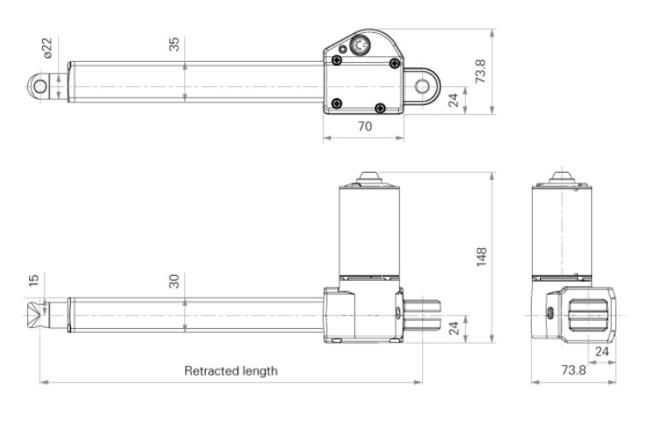

Drawing Of Electric Linear Actuator
Standard Dimensions (mm)
