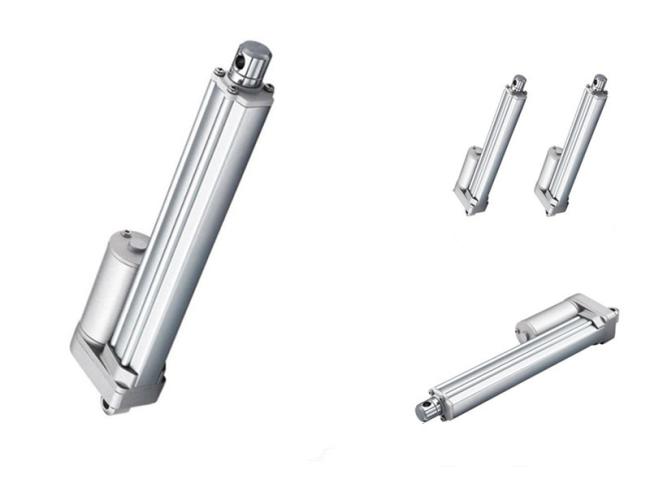

26lb - 220lb Load Force Outdoor Linear Electric Actuator 20mm-1000mm 12/24/36V DC

The LS-PAT-2 electric linear actuator epitomizes a blend of sleek design and durability, engineered to excel in outdoor environments. Tailored for tight spaces demanding robust strength and high performance, it features versatile enhancements including feedback sensors, limit switches, and a convenient 90-degree clevis mounting option.

Specification:

• Voltage: DC power supply 12V / 24V
• Stroke: 1''~39''
• Max. load: 100kg (push/pull)
• Max. speed at max. load: 7.6mm/s
• Max. speed at no load: 67.5mm/s
• Retracted length: ≥ Stroke + 105mm (without output signals)
• IP rating: IP66M
• Output signals: POT / Hall ( Optional)
• Color: Silver
• Operational temperature range: +5˚C~+45˚C
• The actuators are customized products,  the price and parameters for reference only.

Features:

• Rated IP66M for resistance to water and dust
• Stroke customizable from 20mm to 1000mm
• Includes built-in micro switches at both ends
• Various feedback sensor choices available
• Features a sturdy and compact design

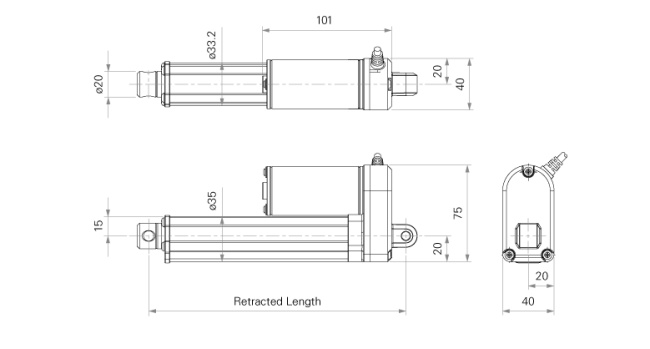

Standard diamension with signal output (mm)
