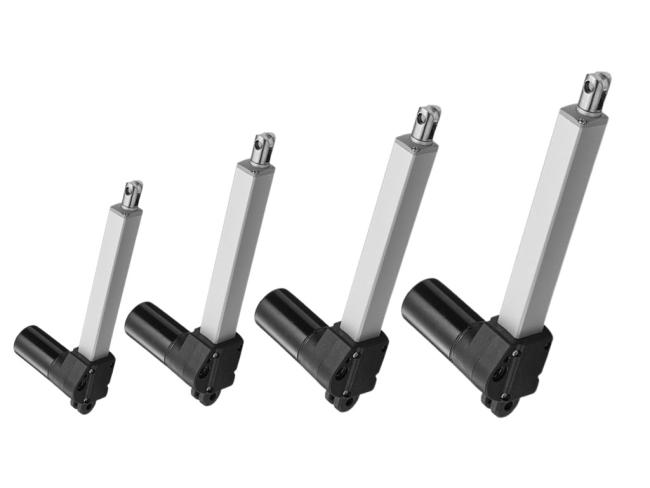

DC Linear Actuators 24V 4000N For Electric Bed Liftchair Furnitures

DC Linear Actuators 24V 4000N For Electric Bed Liftchair Furnitures​

Designed specifically for furniture like lift chairs, reclining sofas, this compact DC linear actuator simplifies electric actuation by functioning as a direct-cut system. Without requiring a control box, it provides a more straightforward, economical solution than traditional systems.

NOTE:

1.Price and specification for reference only, the actuators are customized products

2. We can give you recommendations per the parameters of the actuators you are looking for.

Specifications:

Max. loading force  : 4000N / 400KG

Voltage                   : 12V / 24V DC

Max. speed            : 24mm/s (at no load); 6mm/s ( at full load)

Stroke                    : 10mm ~ 400mm

Retracted length    : ≧ S + 120mm

Signal output         : Hall sensor feedback

Color                     : Black

Limit switch           : Buit in

Applications:

Smart TV cabinets, massage chairs, height-adjustable desk, lift chairs

Features:

• Cost-Effective Solution: Offers an affordable alternative to complex systems.
• Simplified Design: Reduces complexity in actuation mechanisms.
• Space-Saving: Compact design without additional components.

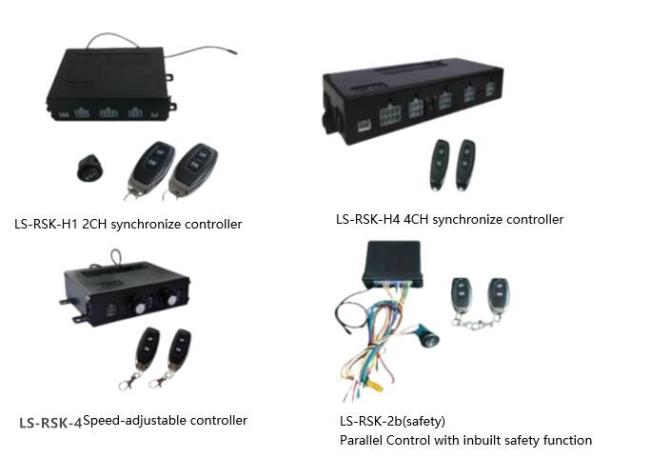

It works without the control box, yet still compatible with LINSHENG actuators controllers for other projects.

About us:
Linsheng Auto (LINSHENG INTERNATIONAL ENTERPRISE CO.,LTD) is specialized in Auto motion, motion remote control systems, automobile safety and security electronics for more than 10 years. With an experienced R&D department of 19 engineers team, we can provide customized design and molding to support your OEM/ODM projects.

Support and Services:
All our products come with a one-year warranty. We provide technical support and services for Linear Actuator Controllers. Our team of engineers and technicians are available to help you troubleshoot any problems you may be having with your Linear Actuator Control box.

Packing and Shipping:
All our products are packaged carefully before shipping. The box is sealed with tape and labeled with the product name and shipping address. Your item will be shipped via UPS, FedEx , DHL or other shipping courier you may prefer.
