Kingkar Mobile DPF Cleaning Machine for sale 6.0 With 25L Gas Tank

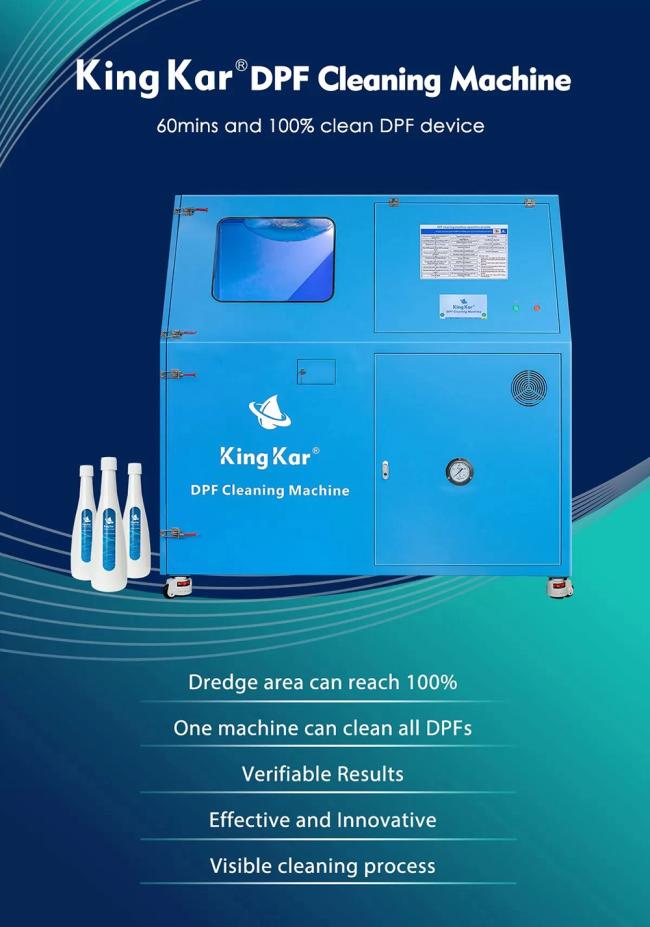

Kingkar Mobile DPF Cleaning Machine For Sale 6.0 With 25L Gas Tank
DPF Filter Cleaning Machine
KingKar DPF6.0 with the most advanced and unique technology to clean all filters of diesel vehicles. Only need 30~60 mins to clean 1DPfs, It using warm water flushing with the cleaner agent and high-pressure air purging work alternately. Three treatments together, ensure 100% clean will not cause a secondary blockage. It’s impeccable operation and usefulness.
Baking room and cleaning room in one machine and can work at the same time, which will help the shop owner save time and labor to earn more money. Backing-pressure testing with memory function which helps customer to comparison data before and after cleaning.
-
Model Kingkar DPF 6.0 Voltage(AC) 380V three-phase four-wire system Maximum Power(KW) 32 Machine weight 795 KG Liquid temperature 55-60℃ safety warning Ground wire connected to the ground Gas Tank Capacity 25L Tank Pressure 8KG machine size(mm) 1900*2000*1140
Cleaning Scope
Clean All Kids of DPFs, DOCs, sCRs etc.
Working Principle
Simply it is water flushing and high pressure purging alternate work.The high-pressure air in the high-pressure gas storage tank is released instantaneousty. Using the top water of the air, the compressed water is generated to generate potential energy, and the blockage inside the honeycomb carrier is pushed out instantly.
-
After the circulating water is flushed, the bottom of the DPF and the honeycomb mesh are filled with water.
-
The high-pressure gas in the high-pressure airstorage tank is instantly released, and the water under pressure by the high-pressure air will instantly push out the hydrogen sulfate and ammonia bicarbonate composite blockage adsorbed inside the honeycomb mesh.
This process wil cycling three times( Can be set according to the DPF degree of clogging ). So that can remove all the blockage out from filter. It can reach 100% cleaning efficiently.
60 Mins cleaning one DPF
Using water flushing and high-pressure air purging process alternately. So for the serious blockage of DOC/ DPF/ SCR of a diesel vehicle, it can be thoroughly cleaned and dredged.
8KG air pressure—the high-pressure air in the air tank is released instantly, and the DPF blockage is blown out by the compressed air to the working compartment.
Multifunctional work tray. All sizes of DPF can be cleaned. Easy to operate and safety, saving time and labor for an engineer.
Reasonable layout, clear at a glance, reducing after-sales work trouble.
DPF cleaner agent, Obtained the certification of the Swiss SGS lnternational Authoritative Certification Agency, it can reach double cleaning double benefits.
Monitor the cleaning process inside the device on the mobile phone and TV screen in real-time.100% customer experience, customers trust, and like more.
