PP Meltblown Nonwoven Fabric Machine For Surgical Masks And N95 Masks

PP Meltblown Nonwoven Fabric Machine Model SMF-RPM1600

Technical Parameters

1. Spinning resin suitable for meltblown: polypropylene; melt index: 1200 ～ 1800g / 10min; recommended: 1500g / 10min

2. Finished fabric width: 1600nn (Width of fabric with burrs: 1700mm)

3 Final fabric specification: 15-80 g/m2

4 Screw Specification: Φ90×30

5 Suction fan configuration: flow 20000m3/h, full pressure 5000Pa, Power 45KW, quantity: 1set

6 Hot air heating power: 230KW

7 Hot air elongation draught fan configuration: flow 45m3/h, air pressure: 100～110kPa

Maximum mechanical speed: 80m/min

Running speed: 8～60m/min

8 DCD (die-to-collector distance):100～350mm

9. Installed power: about 750KW

10 Workshop requirements of production line: L*W*H =≥30m×≥16m×≥8m

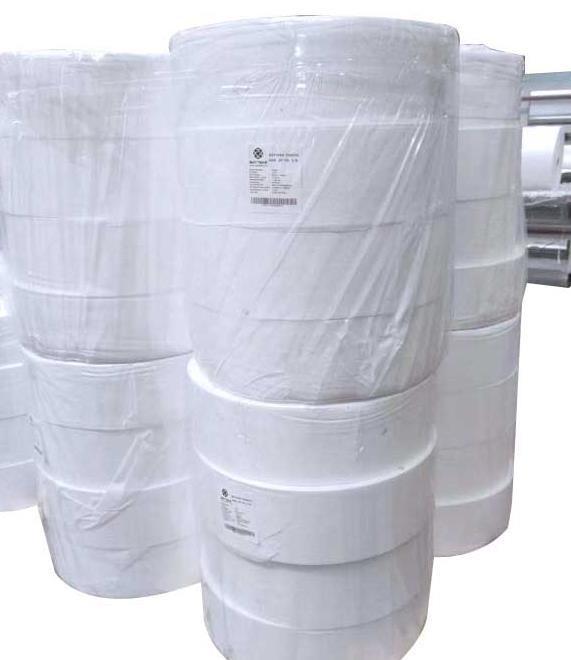

Application: PP Meltblown Nonwoven fabric machine is mainly applied to manufacture the kernel material of masks – PP Meltblown nonwoven fabric. Meltblown nonwoven fabric is also known as the "heart" of Medical surgical masks and N95 masks. It is mainly used in medical treatment, surgical gown, protective clothing, disinfection cloth, masks and diapers.

Product application range:
