Black Pvc Coated E Glass Fiber Yarn Low Fuzz 34 Tex 1/0
Price:
Negotiation
MOQ:
1000 square meters
Delivery Time:
According to quantity
Brand:
HUILI
Product Description
Black Pvc Coated E Glass Fiber Yarn Low Fuzz 34 Tex 1/0
Product Description
| Definition | PVC coated fiberglass fabric is a fiberglass cloth, which possesses the properties of temperature resistance, anti-corrosion, high strength and is coated with organic silicone rubber. It is a newly-made-product with high properties and multiple applications. Due to its unique and excellent resistance to high-temperatures, permeability and aging, in addition to its durability, this fiberglass fabric is widely used in aerospace, chemical industry, large-scale generate electricity equipment, machinery, metallurgy, nonmetal expansion joint (compensator) and etc. |
| Properties |
1.used in the temperature from -70ºC to 230ºC 2.resistant to ozone, oxygen, sunlight and aging, long using life up to 10 years 3.high insulating properties, dielectric constant 3-3.2, breaking down voltage: 20-50KV/MM 4.good flexibility and high surface friction 5.chemical corrosion resistance |
| Application | Electrical insulation, Non-metallic compensator, Anti-corrosion sector, temperature resistance and other fields. |
| Specifications | |
| Product | PVC coated fiberglass fabric |
| Width | 40 - 80 inch ( 1m -2m) |
| Thickness | 0.2mm-3mm |
| Weight (coating) | 40 g /m2-2800 g/m2 |
| Coating Surface | single coated, double coated |
| Color | red, sliver grey, black, white, yellow, green and etc. |

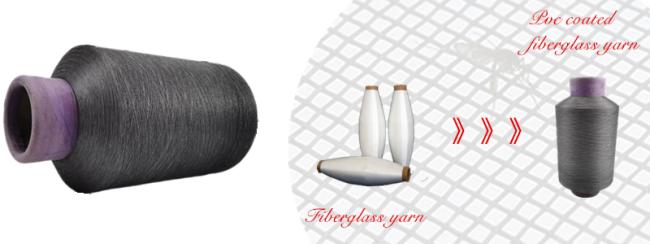

This glass yarn is specially made of PVC coating.
It is characterized with high and stable strength, low fuzz, well compatible with PVC.
Based on fiberglass yarn, coating PVC which meet European Unions requirement of Environment protection on each filament of yarn.
Specification
|
Tex of fiberglass yarn
|
34tex 1/0
|
|
Coating
|
pvc
|
|
Tex after coating
|
89tex
|
|
Wire diameter
|
0.25mm/0.28mm/0.33mm
|
|
Tensile Strength
|
180-260N/50mm
|
|
Bobbin weight
|
2kg/2.5kg/3kg/4.5kg/5kg
|
|
Color
|
Grey/Black/White/Ivory/Green/Blue
|
|
Packing
|
102 bobbins/carton+pallet
|
Packing & Delivery
1. 34 bobbins/layer
2. 3 layers(102 bobbins)/carton
3. 1 carton/pallet
We promise
1. Supply you best quality products to satisfy your local clients
2. Give best after-sale service
3. Can print your company logo,brand on designated outer packing
Advantages
With high quality PVC coated fiberglass as the material, by using advanced manufacture craft and special handling technique,
our weaving yarns have the characteristics of good flexibility, high pulling strength, anti corrosion, ultraviolet ray prevention,flame-resistance, chemical stability, smoothness and a long service life.
our weaving yarns have the characteristics of good flexibility, high pulling strength, anti corrosion, ultraviolet ray prevention,flame-resistance, chemical stability, smoothness and a long service life.
