Liquid Sensor Thermostatic Radiator Head Energy Saving A Class Trv Head EN215 Certified
EN215 Certified Thermostatic Liquid Sensor TMS-01
Product Description
TMS-01 liquid thermostatic sensors are specially designed for being used in thermostatic radiator valves. The working principle of this valve: The liquid temperature sensing element TMS-01 in the thermostatic valve head can sense the indoor air temperature. Thereby it changes the heating water flow to regulate and control room temperature.
Features
-
Without any auxiliary energy
-
Energy-saving
-
Low hysteresis
-
European standard
-
Thermostatic efficiency label A
-
Priority shipping
-
Thermal expansion and cold contraction
Technical Specifications
| Model number | TMS-01 |
| Working range | 5°C-30 °C with a load of 50N |
| Extension | 0.22±0.1mm/°C |
| Workload | 40/80N |
| Minimum workload | 40N |
| Maximum workload | 120N |
| Min/max. temperature | -25°C to 55 °C |
| Hysteresis/K | <0.12 |
| "X" | X=0.95±0.2mm |
| Total expansion | 2.2±0.1mm between 15-25°C with a load of 50N |
Overall Dimensions

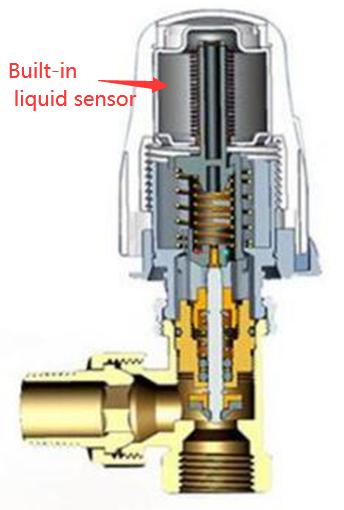

Section view
Liquid sensors can not work independently and are usually installed in radiator thermostatic valve heads.
Different types of liquid sensors.
|
Model
|
TMS-01 | TMS-03 | TMS-04 | TMS-05 |
|
Area of work
|
5°C-30°C | 5°C-30°C | 5°C-30°C | 5°C-30°C |
|
Workload
|
40-80N | 40-80N | 40-80N | 40-80N |
|
Min./ Max. load |
40/120N | 40/120N | 40/120N | 40/120N |
| Min./ Max temperature | -25 °Cto 55°C | -25 °Cto 55°C | -25 °Cto 55°C | -25 °Cto 55°C |
|
Hysteresis/ K
|
0.12 | 0.12 | 0.12 | 0.12 |
| "X" value |
X=0.95±0.2mm with a load of 50N at 20°C |
X=6.5±0.2mm with a load of 50N at 20°C |
X=6.5±0.2mm with a load of 50N at 20°C |
X=6.22±0.35mm with a load of 50N at 24°C |
| Total expansion |
2.2±0.1mm between 15°-25°C, 50N |
2.2±0.11mm between 15°-25°C, 50N |
2.2±0.11mm between 15°-25°C, 50N |
2.3±0.11mm between 15°-25°C, 50N |

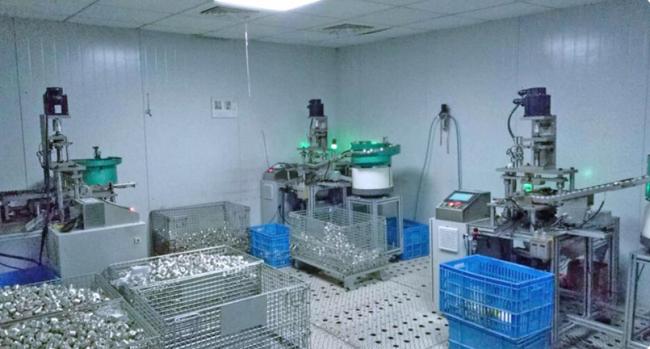

The company has a strong production capacity and can provide various liquid sensors 5-8 million every year. Moreover, we can develop more types of thermostatic sensors according to customers' size and technical requirements.

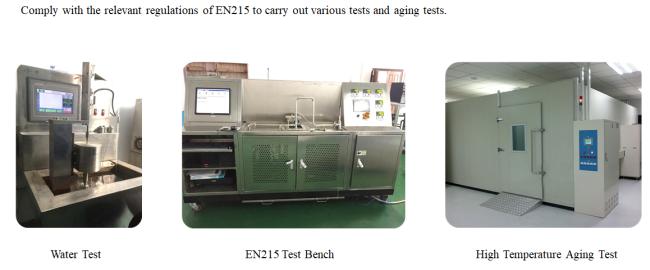

All manufacturing procedures and tests follow the rule of EN215.
FAQ
|
Q1: Are you a manufacturer or a trader? A1: We have been a thermostat manufacturer focusing on thermostats and temperature controls in the HVAC market for over 30 years. |
|
Q2: How are your product quality and warranty? A2: All our products are 100% tested and conform to CE standards. Samples are available for quality evaluation. One year warranty, but we will continue to provide you technical service after the warranty period. |
|
Q3: Can you make a new design for us? Or can you make thermostats according to the samples we give? A3: We provide OEM and ODM services. We have our own industrial and packaging designer and professional mechanical and electrical engineers to help customers to develop new products. |
|
Q4: How long can I get the sample? A4: Samples are usually ready in 5-20 days based on different types. |
|
Q5: What are the nearest ports of shipment? A5: We usually export goods from Shanghai or Ningbo port. If there are exceptional cases, we will discuss them. |
