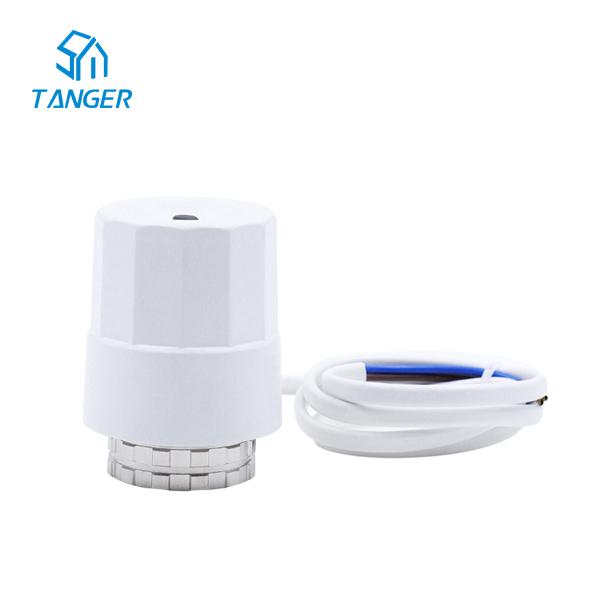

Normally Closed NC Electro Thermal Actuator For Underfloor Heating M30x1.5mm
Electric Thermal Actuator DF-110E
Product Description:
Opposite others devices, a thermal actuator doesn’t require outside power source to produce motion. In a thermal actuator system, temperature changes can be used to perform pre-defined tasks such as release latches, operate switches and open or close valves. These devices are very sensitive and can be used for applications that require actuation even at very slight temperature changes. They can be used for many applications; the aerospace, automotive, agricultural industries, solar and HVAC to name just a few...
Features:
1. Overvoltage protection guarantee.
2. Simple slot assembly.
3. Compact design.
4. Fixed connection cable.
5. Superior reliability with long service life expected.
6. Available as a normally closed (NC) or normally open (NO) version.
Specifications:
| Model | DF-110E |
| Power Supply | 230VAC/24VAC |
| Stroke/Lift | 3mm |
| Running Time | 4.5min |
| Force | 90-125N |
| Max. Inrush Current | 150mA/250mA |
| Operating Power | 2.5W/3W |
| Protection Class | IP54 |
| Electrical Protection | Class II |
| Cable Detail | 2*0.75mm2 PVC, 0.75m long |

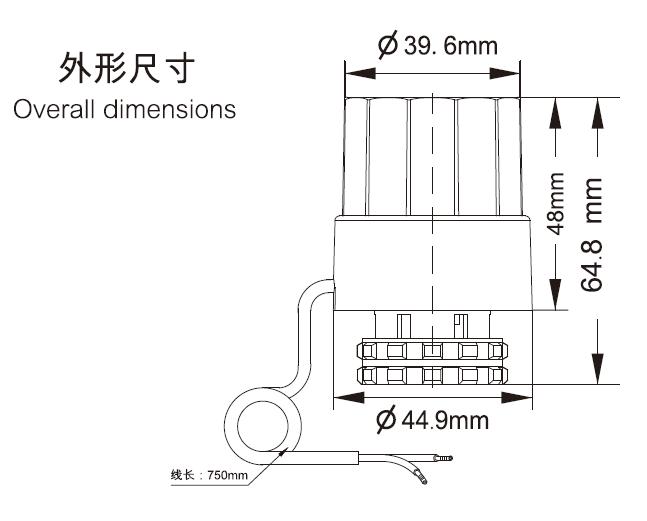

| Connection Size/type | M30 x 1.5mm nut |
| Element Specification | Vernet element |
| Warranty | 3 years |
| NO/NC | Normally closed(NC) |
